Chinese Portable Laser Welding Machine 300W
JOY Laser Welding Machine
Laser Welding Machine Description:
Advantages of Joy welding character machine:
- Joy welding machine character machine welding head can be moved up and down, front and back, left and right to realize regulating and positioning, it is suitable for welding of font edge height 0.5-20cm, operability is greatly increased.
- The optical path and the power control system use independent design, convenient movement and suitable for a variety of venues and does not affect the font welding.
- Welding character table horizontal direction is using track ball screw, it can be applied to large, small font welding, the operation table can be easily removable, and has very high precision and stability. The center positioning system can realize accurate welding for various characters.
- Joy welding character machine control system can control laser power waveform in precision, and the system set up optimization waveform values for different material. As long as select the corresponding material, it can achieve the best welding effect.
- Small heat affected area, does not cause deformation, better welding depth, firm welding, better melted, leaving only 0.2mm~0.5 trace inside but not in font surface. The convex part of solution material in the bath can bind of the substrate material without convex depression phenomenon.
Technical Parameter:
Max. laser power |
300W |
Laser wave-length |
1064nm |
Single pulse energy |
90J |
Welding depth |
0.1-1.2mm |
Pulse width |
0.3-20ms |
Welding frequency |
0.5-40Hz |
Adjustable facula size |
0.2-2mm |
Power consumed |
≤9KW |
Electrical source |
220V±10%/50Hz/40A |
Standard worktable |
800*1000mm |
Positioning |
Microscope |
Z-itinerary |
200mm |
Mobile level |
200-800mm |

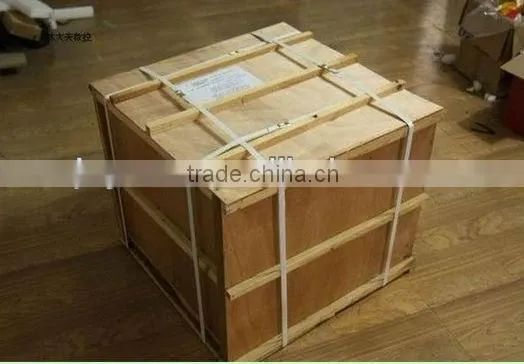

Laser Welding Machine Packaging & Shipping:
laser welding machine Our Services:
Technical Team: We have two R & D base in Wuhan City, well-known institutions of higher learning and
research institutions at home and abroad, a number of the core technological achievements and technical indicators at the international advanced level
Machine Testing: To ensure the quality and stability of the machine, we use the most advanced production and testing equipment ,to check the quality and performance of our industrial cnc equipment in each production step to ensure our equipment quality and stable performance.
Quality: In order to guarantee the performance and quality of our products, we strictly controls all processes, including processing, assembly and delivery.
Export: our products are not only sold in China in large quantity , but also have been exported to more than 150 countries and regions in the world, including: Germany,Amercial,Italy, Russia, South Korea, Turkey, Brazil , South Africa, India, the United Arab Emirates,and so on.
Service: sell the best machines at the best prices, and provides industry-leading customer service. Our technical engineers provide comprehensive pre-sale and after-sale support and service all the time.
Laser Welding Machine Company Information:
Wuhan King Suntime CNC Equipment Co.LTD. is a professional manufacturer of industrial CNC equipment,which loacted in "Optics Valley" , Wuhan city, China. Our company principle is to produce the first class products, create perfect services.

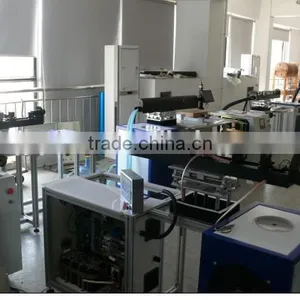

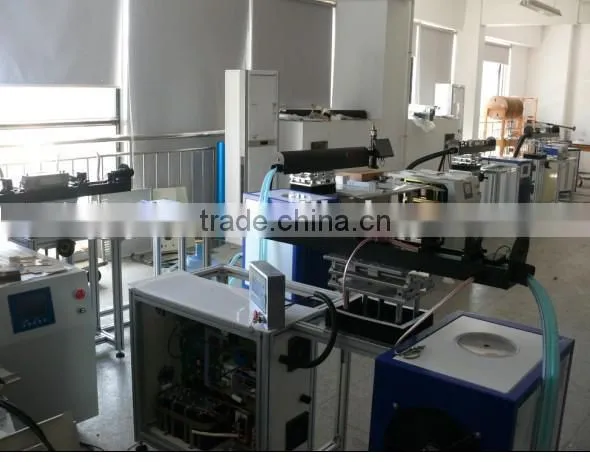

Factory picture
Customers all over the world
FAQ:
1, How to pay to you ?
T/T inadvance or by Others . We can accept 30% deposit , and balance paid to us before delivery machine to you .
2, How long is the delivery time?
For standard machines, it would be 15 days; For non-standard machines and customized machines according to clients specific requirements.
3. I want a size that you don`t make as standard, is this possible?
Absolutely, we can design and manufacture any size our clients require.
4. I am new to CNC, how difficult are your machines to operate?
We help a lot of beginners in CNC, if you have a reasonable knowledge of computers and are willing to spend a little time learning it is not that bad.We can also offer installation and operator training service upon request. Clients have to responsible for the expenses on traveling, food and accommodation.
5. How do you send your CNC machine?
They are firstly packaged in wooden case. Usually, we send machine by ship, sometimes, as customer's requirement, send by air or by train. When the goods arrive at your sea port or destination, you can pick up goods with the bill of lading we offered. Or we can arrange the cargo agent to send goods to you.
6. How is your waranty and service?
After clients purchased our products, our sales with contact with clients frequently, to help clients solveany problem regarding to our products. Also, we recommend clients to prepare some spare parts. We can also send spare parts and wearing parts to clients who need them urgently.
All our CNC router, laser engraving machine, and plasma cutting machines are provided with one year warranty,during which some components and parts can be replaced .
Pls feel freely to email to us for any questions and further infors !
Welcome to our factory and your advice !
