Home > Manufacturing & Processing Machinery > Metallic Processing Machinery > Metal Processing Machinery Parts > JOY High Frequency Aluminium Welding Machine

JOY High Frequency Aluminium Welding Machine

JOY High Frequency Aluminium Welding Machine thumbnail-3

JOY High Frequency Aluminium Welding Machine photo-1

JOY High Frequency Aluminium Welding Machine photo-2

JOY High Frequency Aluminium Welding Machine photo-3

US$ 7,100 - 9,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Hubei, China

Brand Name:

JOY

Model Number:

1064

Contact Supplier Request Quote Chat Now

Wuhan King Suntime CNC Equipment Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hubei, China

Brand Name JOY

Model Number 1064

Condition New

After-sales Service Provided Engineers available to service machinery overseas

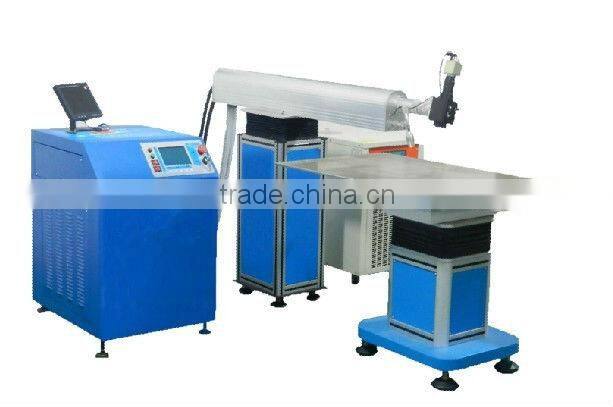

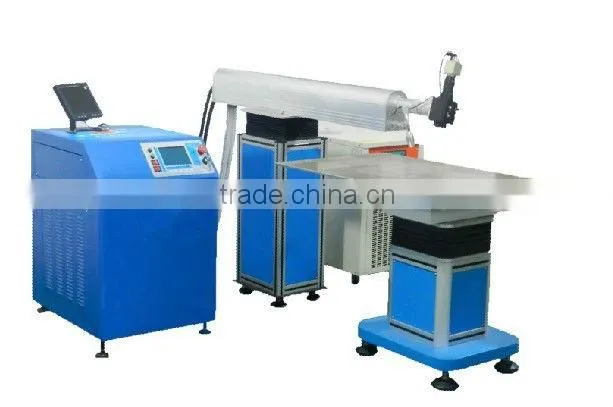

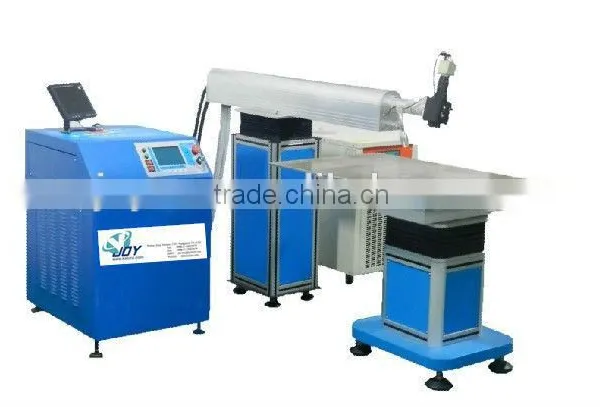

JOY High Frequency Aluminium Welding Machine

JOY Laser Welding Machine

Parameters:

Max. laser power	220W
Laser wave-length	1064nm
Single pulse energy	90J
Welding depth	0.1-1.2mm
Pulse width	0.3-20ms
Welding frequency	0.5-40Hz
Adjustable facula size	0.2-2mm
Power consumed	≤9KW
Electrical source	220V±10%/50Hz/40A
Standard worktable	800*1000mm
Positioning	Microscope
Z-itinerary	200mm
Mobile level	200-800mm

Advantages of Joy welding character machine:

Kepu welding machine character machine welding head can be moved up and down, front and back, left and right to realize regulating and positioning, it is suitable for welding of font edge height 0.5-20cm, operability is greatly increased.
The optical path and the power control system use independent design, convenient movement and suitable for a variety of venues and does not affect the font welding.
Welding character table horizontal direction is using track ball screw, it can be applied to large, small font welding, the operation table can be easily removable, and has very high precision and stability. The center positioning system can realize accurate welding for various characters.
Joy welding character machine control system can control laser power waveform in precision, and the system set up optimization waveform values for different material. As long as select the corresponding material, it can achieve the best welding effect.
Small heat affected area, does not cause deformation, better welding depth, firm welding, better melted, leaving only 0.2mm~0.5 trace inside but not in font surface. The convex part of solution material in the bath can bind of the substrate material without convex depression phenomenon.
Joy welding character machine is a kind of high energy bam welding, which is using high-power coherent monochromatic photon beam to form a laser beam as heat source of welding. This welding method is usually divided into continuous power laser welding and laser welding of pulsed power. The welding character machine can realize precise energy control, thus can realize the precision welding.
Laser welding machine has the advantages of no need of consumable items-but only need of water and electricity, environmental protection, fast welding speed-8-10 times faster than the traditional welding, stable quality and no high requirement for workers-at the same time, it can be applied to many types of metal welding, particularly can solve some difficult welding small fonts and complicated shape welding.

Working :

It can achieve a variety of processing purposes because its non-contact processing, and high energy laser beam and the adjustable moving speed.
It can be used to a variety of metals, non-metallic processing, especially the materials with high hardness, brittleness, and high melting point.
There is no ”tool” wear, no “cutting force” acting on workpiece during processing.
High laser beam energy density, fast processing speed and local processing method have no effect or minimal impact on the welding position. Therefore, it can produce the small heat affected zone, small font thermal deformation, and small follow-up processing amount.
Welding machine can realize the direction changes, easy to cooperate with center control system, and can be use for complex font processing, so it is an extremely flexible welding method of character.
Joy welding character machine is with high production efficiency, conservation supplies, 8-10 times speed compared to the traditional welding machine, reliable quality and good economic benefit.
Joy welding character machine may cause unprecedented new industry revolution, which will benefit the vast number of advertising industry colleagues and business partners.
