Home > Products > Special Generator > CE approved 100kva silent Wholesale Portable Generator

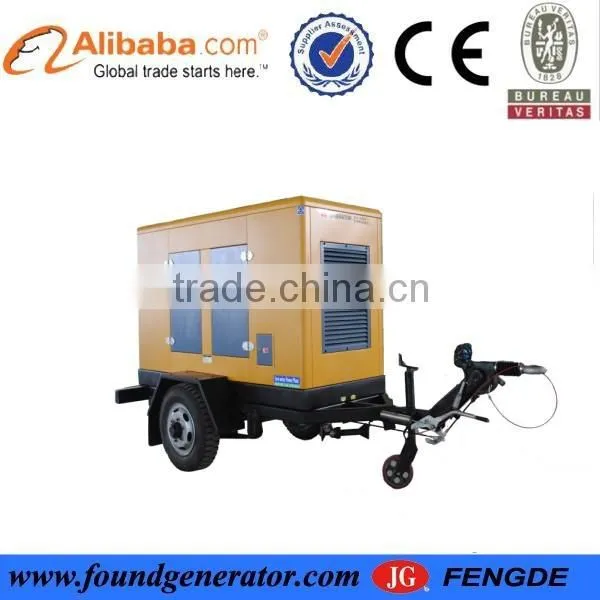

CE approved 100kva silent Wholesale Portable Generator
- 200 Set / Sets per Month
- Shanghai
- T/T
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | JG generator | Model Number: | JGC80GF |
Output Type: | AC Three Phase | Speed: | 1500RPM | Frequency: | 50HZ |
Rated Power: | 80KW | Rated Voltage: | 400V | Rated Current: | 144A |
Product Description
Specifications
Wholesale portable generator1.CE,ISO certificate
2.two or four wheels
3.global service for 12 month
4.with braking system
1. Wholesale portable generator general specification:
Equipped armor plate spring of structure poised;
The trailer adopt the adjustable- height bolted towed rack, which is suitable for different height trailer;
Have mechanical underprops at each corner of the trailer. Inertial traveling brake, station brake & disengage emergency brake between trailer and tractor
With turning lamp, brake indicator light and standard BNC connector plugs for back lamp
2. Diesel Generator Technical Data:
Engine data:
Engine Model | 6BT5.9-G2 |
Configuration | 4 cycle , 6 cylinders in line |
Aspiration | Turbocharged after water-cooled |
Bore×Stroke | 102 x120 mm |
Rated speed | 1500rpm |
Displacement | 5.9 L |
Compression Ratio | 17.5:1 |
Prime Power | 92KW |
Speed Governor | electrical |
Cooling System | Water-cooled , 40°C Radiator As Standard, 50°C Is Optional. |
Speed Stability (%) | ≤5% |
Fuel Consumption at 100% Load | 214g/kw.h |
Starter Motor | DC24V, |
Marathon alternator data:
Alternator model | MP-80-4 |
Alternator manufacturer | Marathon |
Exciter type | Single bearing, Brushless, Self-excited |
Rated output prime power | 80 kW |
Rated speed | 1500 RPM |
Rated frequency | 50 Hz |
Phase | 3 |
Rated voltage | 400 V(Available with customer requirements) |
Power factor | 0.8 |
Voltage adjust range | ≥5% |
Voltage regulation NL-FL | ≤±1% |
Insulation grade | H |
Protection grade | IP23 |
3.Warranty:
Our warranty will be 1000 accumulative hous or 12 month after shipping, whichever comes first.
4.Certificate & Document:
1) Alternator operation and maintenance manual 1PC
2)Engine operation and maintenance manual 1PC
3)Generator Overall drawings of the set 1PC
4)Electrinic system drawing 1PC
5)Bench test 1PC
6)Packing list 1PC

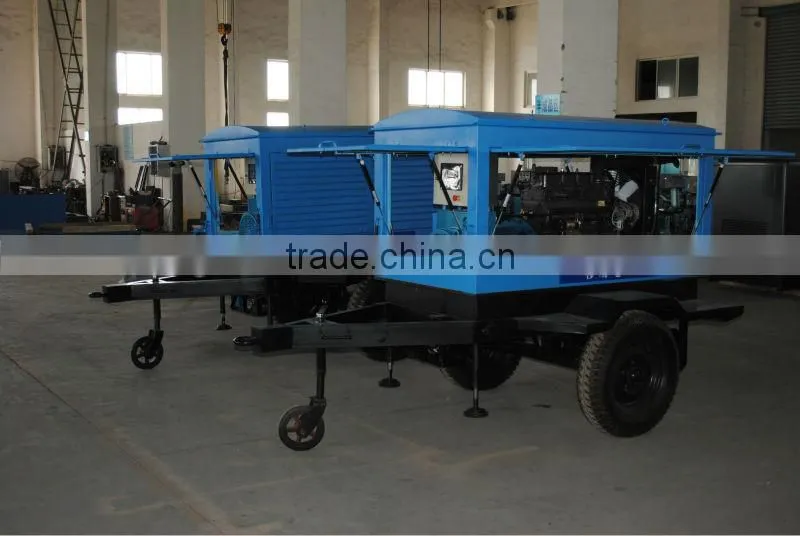

5.picture of control system and factory:
