Specifications
1.80kw silent mobile generator2.CE,ISO certificate
3.two or four wheels
4.global service for 12 month

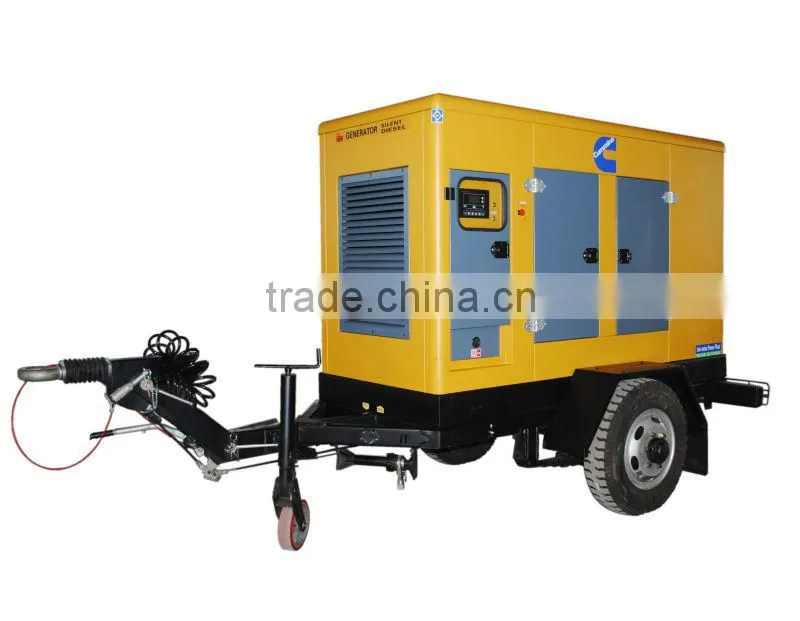

CE approved 100kva 80kw silent mobile generator for mining
1. general specification:
Besides all performances of Silent Type Gen Sets, JG Silent Type Gen Sets with Trailer has Advantages as follows:
Equipped armor plate spring of structure poised;
The trailer adopt the adjustable- height bolted towed rack, which is suitable for different height trailer;
Have mechanical underprops at each corner of the trailer. Inertial traveling brake, station brake & disengage emergency brake between trailer and tractor
With turning lamp, brake indicator light and standard BNC connector plugs for back lamp
2. Diesel Generator Technical Data:
Genset Technical Data | |
Prime power |
80 kW |
Standby power |
88 kW |
Rated speed |
1500 RPM |
Output frequency |
50 Hz |
Phase |
3 |
Rated voltage |
400 V |
Engine model |
6BT5.9-G2 |
Alternator model |
MP-80-4 |
Cummins Diesel Engine Technical Data
Engine Model |
6BT5.9-G2 |
Configuration |
4 cycle , 6 cylinders in line |
Aspiration |
Turbocharged after water-cooled |
Bore×Stroke |
102 x120 mm |
Rated speed |
1500rpm |
Displacement |
5.9 L |
Compression Ratio |
17.5:1 |
Prime Power |
92KW |
Speed Governor |
electrical |
Cooling System |
Water-cooled |
Speed Stability (%) |
≤5% |
Fuel Consumption at 100% Load |
214g/kw.h |
Starter Motor |
DC24V, |
Marathon Alternator Technical Data
Alternator model |
MP-80-4 |
Alternator manufacturer |
Marathon |
Exciter type |
Single bearing, Brushless, Self-excited |
Rated output prime power |
80 kW |
Rated speed |
1500 RPM |
Rated frequency |
50 Hz |
Phase |
3 |
Rated voltage |
400 V(Available with customer requirements) |
Power factor |
0.8 |
Voltage adjust range |
≥5% |
Voltage regulation NL-FL |
≤±1% |
Insulation grade |
H |
Protection grade |
IP23 |
3.Warranty:
Our warranty will be 1000 accumulative hous or 12 month after shipping, whichever comes first.
4.Certificate & Document:
1) Alternator operation and maintenance manual 1PC
2)Engine operation and maintenance manual 1PC
3)Generator Overall drawings of the set 1PC
4)Electrinic system drawing 1PC
5)Bench test 1PC
6)Packing list 1PC
5.picture
