Specifications
Soundproof gensets1/CE certificate
2/ISO9001:2000 certificate
3/OEM manufactory
4/more than 10 years manufacturing experie

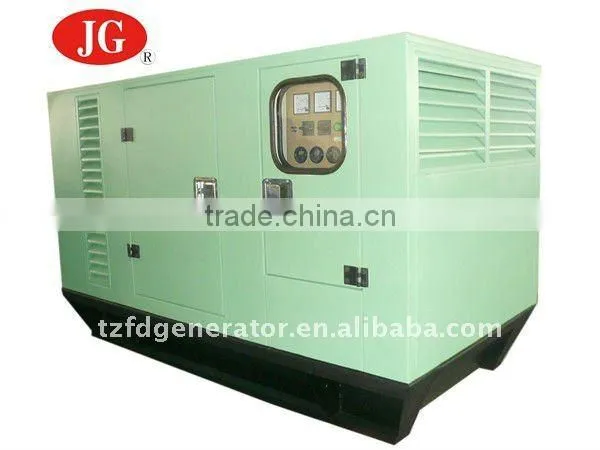

Soundproof gensets 15kw to 1000kw
diesel generator set adopt Cummins engines , which is a world-reputable brand with its good service and performance , high reliability , low use and maintenance cost .
Cummins Inc. have two production bases , Chongqing Cummins Engine Co., Ltd ( produce M , N, K series engine ) and Dongfeng Cummins Engine Co., Ltd ( produce B, C, L series ) , also with global uniform quality standard.
1/Output:15kw-1000kw
2/Engine details: Cummins series
3/Alternator details: Stamford series, Marathon series, Lerysomer series Kaijieli and so on.
4/Water-cooled
5/8hrs operation base tank
6/Key start/auto start
7/Sound-proof/weather-proof canopy is optional
8/230/440V AC, 50HZ/60HZ,0.8PF three-phase and four wires alternating current output
9/Frequency: <3%
10/Frequency at stable state: <0.5%
11/ Frequency deviation at instantaneous state: ≤+10%
12/Frequency return time: ≤3s
13/Voltage deviation at stable state: ≤+1%
14/Voltage deviation at instantaneous state: ≤+20%
15/Voltage return time: ≤4s
16/Voltage modulation: ≤0.3%
17/Standard configuration of gensets:
a) Engine: Cummins series diesel engine
b) Engine type: water-cooled, in line four-stoke, direct injection
c) Alternator: Marathon brushless alternator
18/Control system:
a)Automatic alarm system: the unit has the acoustic-optics.
Power factor 0.8(delay) Frequency/Speed 50Hz/1500rpm | ||||||
Model |
Rated Power |
Rated Current A |
Engine Model |
Overall dimension (L×W×H)mm |
Weight Kg |
|
KW |
KVA |
|||||
JG20GFC |
20 |
25 |
36 |
4B3.9-G2 |
1850×850×1300 |
780 |
JG30GFC |
30 |
38 |
54 |
4BT3.9-G2 |
1850×850×1300 |
850 |
JG50GFC |
50 |
63 |
90 |
4BTA3.9-G2 |
1850×850×1300 |
1100 |
JG75GFC |
75 |
94 |
135 |
6BT5.9-G2 |
2050×850×1500 |
1450 |
JG100GFC |
100 |
125 |
180 |
6BTA5.9-G2 |
2050×850×1500 |
1550 |
JG140GFC |
140 |
175 |
252 |
6CTA8.3-G2 |
2400×950×1500 |
2600 |
JG150GFC |
150 |
188 |
270 |
6CTA8.3-G2 |
2400×950×1500 |
2650 |
JG200GFC |
200 |
250 |
360 |
6LTAA8.9-G2 |
2500×1000×1600 |
2900 |
JG200GFC |
200 |
250 |
360 |
NT855-GA |
3050×1050×1900 |
2700 |
JG220GFC |
220 |
275 |
396 |
NTA855-G1 |
3050×1050×2000 |
2750 |
JG250GFC |
250 |
313 |
450 |
NTA855-G2 |
3050×1050×2000 |
2850 |
JG300GFC |
300 |
375 |
540 |
NTAA855-G7 |
3050×1050×2000 |
3100 |
JG360GFC |
360 |
450 |
648 |
KTA19-G3 |
3600×1500×2350 |
3600 |
JG400GFC |
400 |
500 |
720 |
KTA19-G4 |
3600×1500×2350 |
3800 |
JG440GFC |
440 |
550 |
792 |
KTAA19-G6 |
3600×1500×2350 |
4600 |
JG450GFC |
450 |
625 |
900 |
KTAA19-G7 |
3600×1500×2350 |
4700 |
JG500GFC |
500 |
625 |
900 |
KTA38-G |
4800×1800×2350 |
7300 |
JG600GFC |
600 |
750 |
1080 |
KTA38-G2 |
4800×1800×2350 |
7500 |
