Specifications
1.lovol silent diesel generator set2.ISO,CE certificate
3.global service for 12 month
4.75dB at the distance of 7 meters
1. lovol silent diesel generator set general feature:
1) Output range: 20kW (25kVA) up to 1000kW (1,250kVA),
2) Engine model: Volvo engine
3) Alternator: Stamford, Marathon series Stamford copy
4) Water-cooled
5) 8hrs operation base tank
6) Key start / auto start
7) Sound-proof / weather-proof generator is optional
8) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wiresalternating current output
9) Frequency: <3%
10) Frequency at stable state: <0.5%
11) Frequency deviation at instantaneous state: ≤+10%
12) Frequency return time: ≤3s
13) Voltage deviation at stable state: ≤±1%
14) Voltage deviation at instantaneous state: ≤+20%15) Voltage return time: ≤4s16) Voltage modulation: ≤0.3%
15)Generatig power :from 20KW to 1200KW
We are the top VIP supplier on Alibaba ,
authorized by famous certification authority-BV ( Bureau Veritas ).
2. Lovol engine Technical Data:
Engine Model |
TAD734GE |
Configuration |
4 cycle , 6 cylinders in line |
Aspiration |
Turbochargerd |
Bore×Stroke |
108x130 mm |
Rated speed |
1500rpm |
Displacement |
7.15 L |
Compression ratio |
17.0:1 |
Prime Power |
217KW |
Speed Governor |
Electronic |
Cooling System |
water-cooled |
Speed Stability (%) |
≤5% |
Fuel Consumption at 100% Load |
204g/kw.h |
Starter Motor |
24V, |
Stamford alternator technical data
Alternator model |
UCD274K |
Alternator manufacturer |
Stamford |
Exciter type |
Single bearing, Brushless, Self-excited |
Rated output prime power |
200kW |
Rated speed |
1500 RPM |
Rated frequency |
50 Hz |
Phase |
3 |
Rated voltage |
400 V(Available with customer requirements) |
Power factor |
0.8 |
Voltage adjust range |
≥5% |
Voltage regulation NL-FL |
≤±1% |
Insulation grade |
H |
Protection grade |
IP23 |
3.Warranty:
Our warranty will be 1000 accumulative hous or 12 month after shipping, whichever comes first.
4.Picture:

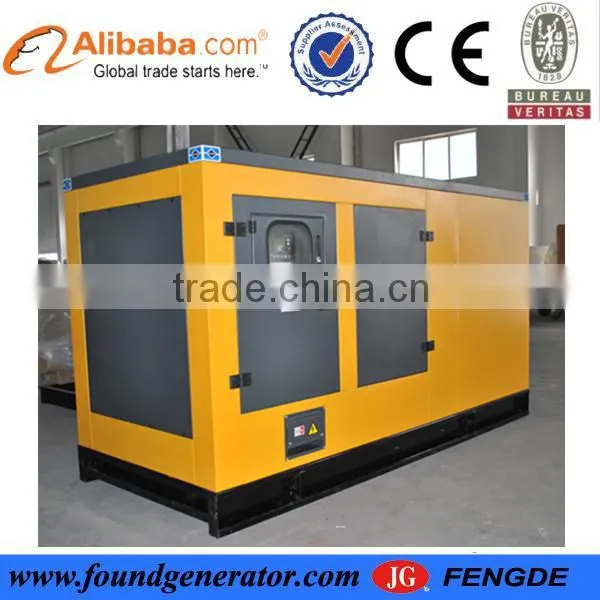

picture for reference
