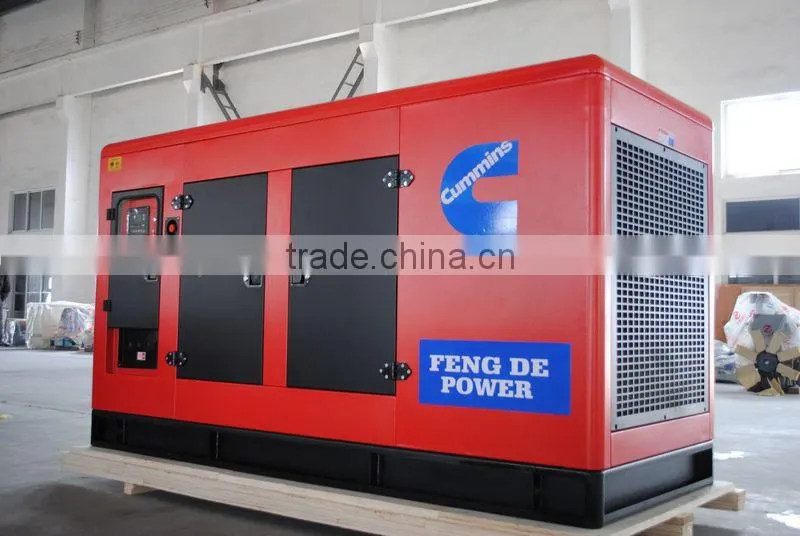

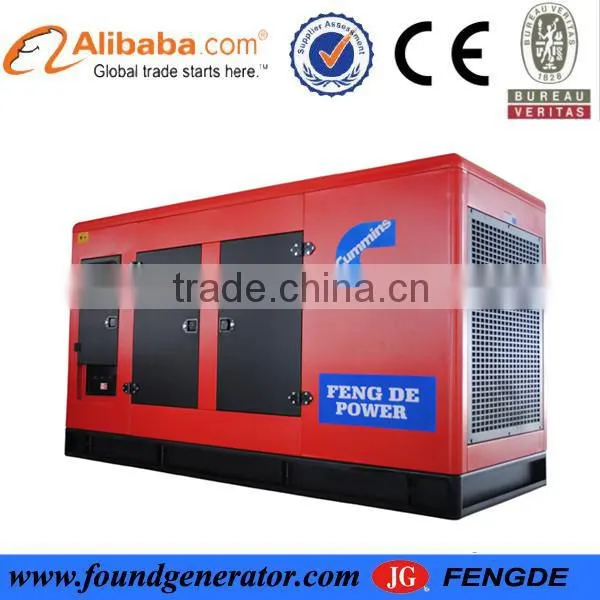

Factory Direct Sale 200kw Silent Diesel Generator

US$ 10,000 - 250,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Model Number:

JGC200GF

Taizhou Fengde Mechanical & Electrical Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name JG

Model Number JGC200GF

Output Type AC Three Phase

Speed 1500rpm

Frequency 50HZ

Rated Power 90kw

Rated Voltage 230v/400v

Rated Current 162A

Specifications

1.200kw silent diesel generator
2.global service for 12 month
3.ISO,CE certificate
4.75dB at the distance of 7 meters

1. 200kw silent diesel generator general feature:

1) Factory direct sale

2) Soon delivery time

3) CE,ISO certificate

We are the top VIP supplier on Alibaba ,

authorized by famous certification authority-BV ( Bureau Veritas ).

2. Cummins engine Technical Data:

Engine Model	6LTAA8.9-G2
Configuration	4 cycle , 6 cylinders in line
Aspiration	Turbocharged after air-air cooled
Bore×Stroke	114 x 144 mm
Rated speed	1500rpm
Displacement	8.9L
Compression Ratio	17.0:1
Prime Power	200KW
Speed Governor	electrical
Cooling System	Water-cooled , 40°C Radiator As Standard, 50°C Is Optional.
Speed Stability (%)	≤5%
Fuel Consumption at 100% Load	197g/kw.h
Starter Motor	DC24V,

3.Sunvim Alternator Technical Data:

Alternator model	SV274
Alternator manufacturer	Sunvim
Exciter type	Single bearing, Brushless, Self-excited
Rated output prime power	200kW
Rated speed	1500 RPM
Rated frequency	50 Hz
Phase	3
Rated voltage	400 V(Available with customer requirements)
Power factor	0.8
Voltage adjust range	≥5%
Voltage regulation NL-FL	≤±1%
Insulation grade	H
Protection grade	IP23
