Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > Famous Brand Low Price Sale 160kw Automation Silent Diesel Generatoring Set

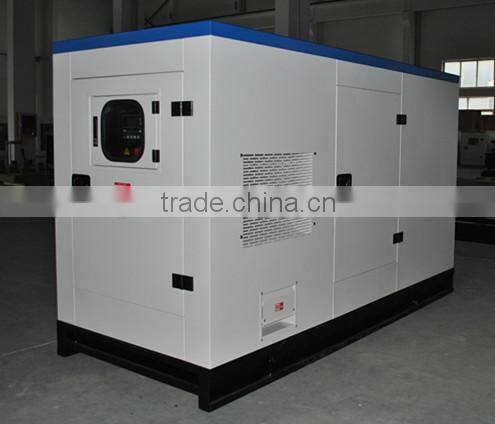

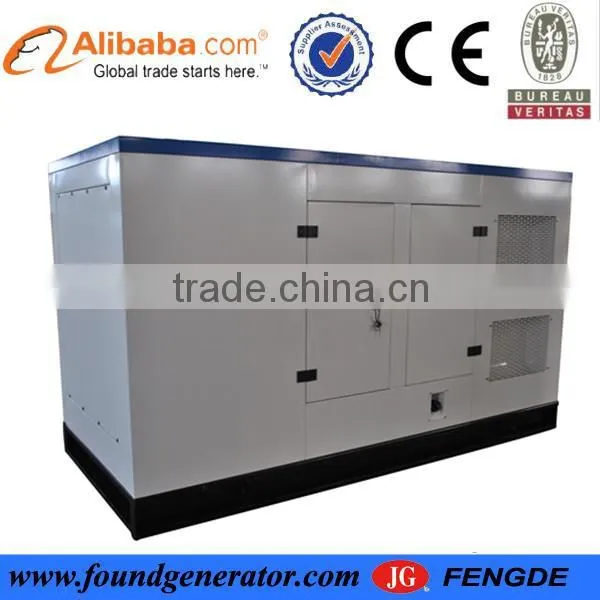

Famous Brand Low Price Sale 160kw Automation Silent Diesel Generatoring Set

US$ 15,000 - 25,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Model Number:

JGC160GF

Taizhou Fengde Mechanical & Electrical Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name JG

Model Number JGC160GF

Output Type AC Three Phase

Speed 1500rpm/1800rpm

Frequency 50hz/60hz

Rated Power 160kw

Rated Voltage 230v/400v

Rated Current 288A

Specifications

160kw automation silent diesel generatoring set
1.ISO,CE certificate
2.factory direct sale
3.75dB at the distance of 7 meter

1. general feature:

160kw automation silent diesel generatoring set

1) factory direct sale

2) OEM factory direct sale

3) genuine cummins engine

We are the top VIP supplier on Alibaba ,

authorized by famous certification authority-BV ( Bureau Veritas ).

2.diesel generator Technical Data:

1.Main technical data of industry gensets
1.1	Model	JGC160GF
1.2	Prime power	160KW/176KVA
1.3	Prime voltage	230/400V
1.4	Speed	1500 rpm
1.5	Weight	2500kg
1.6	Overall dimension	1670×850×1270mm (just for reference)
2.Main technical data of engine
Cummins engine, 4 stroke. DC start.
2.1	Brand	CumminS
2.2	Model	6CTAA8.3-G2
2.3	Prime power	188KW
2.4	Governor type	Electronic
2.5	Configuration	4 cycle , 6 cylinder in line
2.6	Air Intake System	Natural Aspirate
2.7	Bore/Stroke	114×135mm
2.8	Displacement	3.9 L
2.9	Starting method	Electric
2.10	Compression ratio	17:1
2.11	Fuel consumption	205g/kw.h
3. Main technical data of alternator
Alternator is selected the new type brushless alternator designed by US Marathon Electric, which has a unique design, advanced structure, small size, light weight, excellent performance, reliable running and easy-to-use operation.
3.1	Brand	MARATHON
3.2	Model	MP-160-4
3.3	Prime power	160kW
3.4	Configuration	Brushless , self-exciting
3.5	Prime voltage	230V/400V
3.6	Frequency	50 HZ
3.7	Power factor	0.8(lagging)
3.8	Phase/wire	3 phase 4 wires
3.9	Isolation	H
