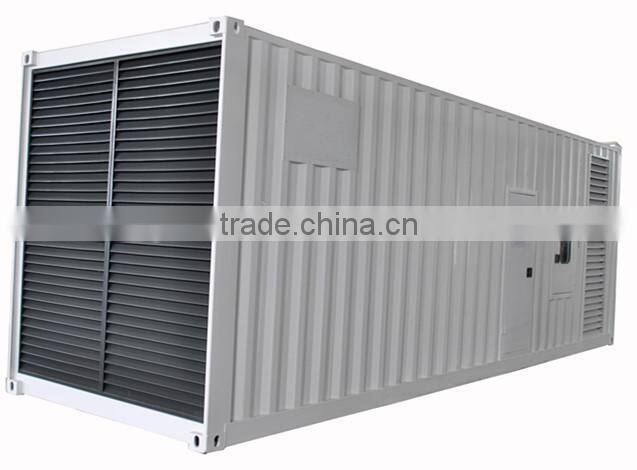

Help Center20% off New Design 1MW Super Silent Diesel Generator Set
Related Products
-
CE Approved Super Silent 25kw Diesel Generator With ATS/AMFUS$ 4,500 - 10,000MOQ: 1 Set -
China Manufacturer Silent Diesel Generator,super Performance Silent Generator SetUS$ 4,500 - 10,000MOQ: 1 Set
-
CE Certificate Diesel Generator 120 KvaUS$ 5,000 - 15,000MOQ: 1 Set
-
CE Approved 40-900kw Soundproof Canopy Diesel GeneratorUS$ 10,000 - 25,000MOQ: 1 Set
-
China Supplier Electric Generator,diesel Generator With CanopyUS$ 10,000 - 25,000MOQ: 1 Set
Specifications
1.super silent diesel generator2.CE,ISO certificate
3.Soon delivery
4.global service for 12 month
1.super silent diesel generator general specifications:
1) Output range: 1000kw generator
2) Engine model: cummins engine
3) Alternator: Marathon
4) Water-cooled
5) 8hrs operation base tank
6) Key start / auto start
We are the top VIP supplier on Alibaba ,
authorized by famous certification authority-BV ( Bureau Veritas ).
2.Cummins engine Specificaton:
Engine Model |
KTA50-G3 |
Configuration |
4 cycle , 16 cylinders in "V" |
Aspiration |
Turbocharged Aftercooled |
Bore×Stroke |
159 x159 mm |
Rated speed |
1500rpm |
Displacement |
50.3L |
Compression Ratio |
13.9:1 |
Prime Power |
1097KW |
Standby Power |
1227KW |
Speed Governor |
Electrical |
Cooling System |
Water-cooled , 40°C Radiator As Standard, 50°C Is Optional. |
Speed Stability (%) |
≤5% |
Fuel Consumption at 100% Load |
202g/kw.h |
Start method |
24V DC |
Alternator Specification:
Brand |
Stamford |
Alternator Model |
PI734A |
Capacity |
1008KW |
Voltage |
415V |
Frequency & Speed |
50HZ/1500RPM |
Exciter type |
Brushless, Self-excited |
Power factor |
0.8 |
Voltage Adjust range |
≥5% |
Voltage Regulation NL-FL |
≤±0.5% |
Insulation Grade |
H |
Protection Grade |
IP23 |
3.Warranty:
Our warranty will be 1000 accumulative hous or 12 month after shipping, whichever comes first.
4.Document:
1) Alternator operation and maintenance manual 1PC
2)Engine operation and maintenance manual 1PC
3)Generator Overall drawings of the set 1PC
4)Electrinic system drawing 1PC
5)Bench test 1PC
6)Packing list 1PC
5.picture of control system and factory:
