1. silent generator set general feature:
1) Output range: 30kW (38kVA)
3) Alternator: Marathon
4) Water-cooled
5) 8hrs operation base tank
6) Key start / auto start
7) Sound-proof / weather-proof canopy is optional
8) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wiresalternating current output
9) Frequency: <3%
10) Frequency at stable state: <0.5%
11) Frequency deviation at instantaneous state: ≤+10%
12) Frequency return time: ≤3s
13) Voltage deviation at stable state: ≤±1%
14) Voltage deviation at instantaneous state: ≤+20%15) Voltage return time: ≤4s16) Voltage modulation: ≤0.3%
We are the top VIP supplier on Alibaba ,
authorized by famous certification authority-BV ( Bureau Veritas ).
2.Diesel Engine Technical Data:
Engine Model |
4BT3.9-G2 |
Configuration |
4 cycle , 4 cylinders in line |
Aspiration |
Turbocharged |
Bore×Stroke |
102 x120 mm |
Rated speed |
1500rpm |
Displacement |
3.9 L |
Compression Ratio |
16.5:1 |
Prime Power |
36KW |
Speed Governor |
electrical |
Cooling System |
Water-cooled , 40°C Radiator As Standard, 50°C Is Optional. |
Speed Stability (%) |
≤5% |
Fuel Consumption at 100% Load |
214g/kw.h |
Starter Motor |
DC24V, |
3.Marathon alternator technical data:
Alternator model |
GM-30-4 |
Alternator manufacturer |
Marathon |
Exciter type |
Single bearing, Brushless, Self-excited |
Rated output prime power |
30 kW |
Rated speed |
1500 RPM |
Rated frequency |
50 Hz |
Phase |
3 |
Rated voltage |
400 V(Available with customer requirements) |
Power factor |
0.8 |
Voltage adjust range |
≥5% |
Voltage regulation NL-FL |
≤±1% |
Insulation grade |
H |
Protection grade |
IP23 |
4.Warranty:
Our warranty will be 1000 accumulative hous or 12 month after shipping, whichever comes first.
5.Certificate & Document:
|
a. Alternator operation and maintenance manual CCS certificate |
1PC 1PC |
|
b. Engine operation and maintenance manual CCS certificate EIAPPcertificate |
1PC 1PC 1PC |
|
c. Generator CCS certificate Overall drawings of the set ELECTRINIC SYSTEM DRAWING Bench test Packing list |
1PC 1PC 1PC 1PC 1PC |
|
d. Control panel CCS certificate operation and maintenance manual |
1PC 1PC |
6.picture :
silent type for reference

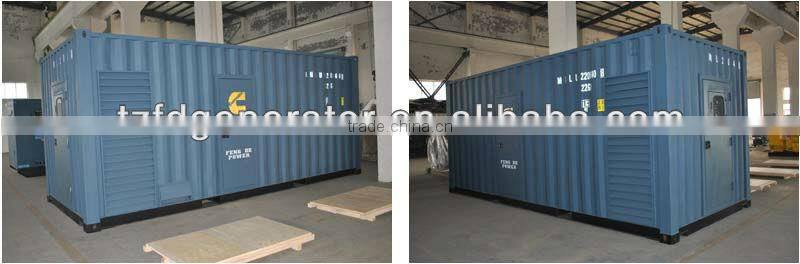

container type

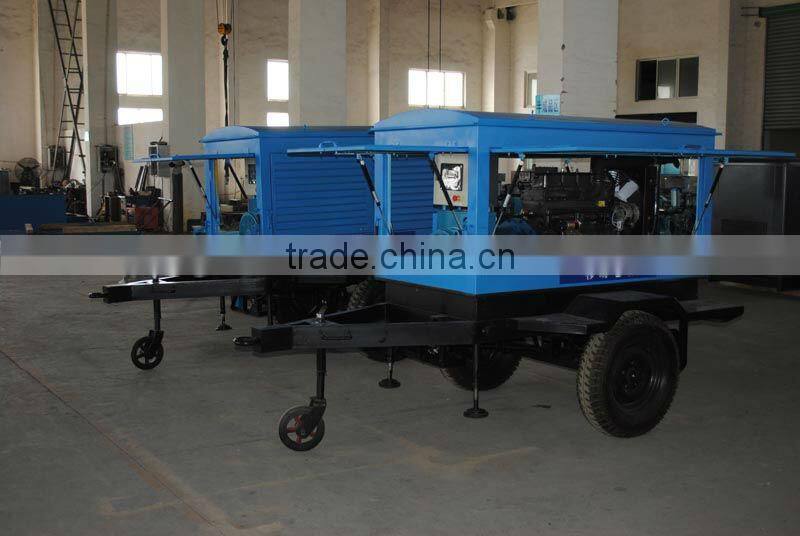

trailer type
