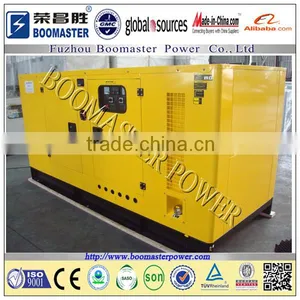

OEM Generator Diesel 125 Kva With Prices
US$ 9,999 - 19,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
cummins
Model Number:
BC-125
Payment & Shipping
Payment Methods:
Port of Shipment:
FUZhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Good Choice!!! Yangdong Engine Slient Diesel Generator for Sale 20kvaUS$ 2,999 - 3,999MOQ: 1 Set -
60HZ 100kva/80kw Canopy OEM Price Yuchai Diesel Generator SetUS$ 7,999 - 9,999MOQ: 1 Set
-
Slient Yuchai Price of 60kva GeneratorUS$ 4,999 - 6,999MOQ: 1 Set
-
Marine Generator Lovol Engine Made in ChinaUS$ 5,000 - 10,000MOQ: 1 Set
-
Deutz Used Marine Diesel Generators With CE and ISOUS$ 5,000 - 10,000MOQ: 1 Set
Place of Origin
Fujian, China
Brand Name
cummins
Model Number
BC-125
Output Type
AC Three Phase
Speed
1500/1800Rpm
Frequency
60Hz
Rated Power
100kw
Rated Voltage
220/380V 230/400V
Rated Current
190A
Specifications
OEM generator diesel 125 kva with prices1.Rated power:25kva to 250kva
2.Vol /Fre: 230/400V 60Hz
OEM generator diesel 125 kva with prices
| Product Overview | |
| 1) Brand-Cummins | |
| 2) Brushless alternator,single bearing,flange connection,IP23,H insulation class,with AVR. | |
| 3) Auto control panel with LCD display. | |
| 4) Engine mounted battery-charging alternator,Genset with battery charge of main supply. | |
| 5) Circuit Breaker,Exhaust Silencer. | |
| 6) Copper Radiator for 40°C ambient temperature and double-deck cooling,with fan guard and front guard. | |
| 7) Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable. | |
| 8) Skid-mounted bottom 8 hours fuel tank. | |
| 9) Extemal recessed emergency stop button for extra safety. | |
| 10)Optional:Soundproof,ATS(automatic transfer switch),AMF panel,Trailer,Parallel system. | |
| 125kva Cummins diesel generator | |
| Genset Specification | |
| Genset Model | BC-125 |
| Prime Power(Kw/Kva) | 100/125 |
| Frequency | 60Hz |
| Structure type | Open or Soudproof |
| Dba"@7m | silent genset 55-78 dba @ 7m , open type75-98 dba @7m |
| Engine Model | 6BTAA5.9-G2 |
| Alternator Model | STG274C |
| Open type DimensionL*W*H(mm) | 2100*700*1380 |
| Weight(Kg) | 1500 |
| Silent type DimensionL*W*H(mm) | 2300*1000*1500 |
| Weight(Kg) | 1700 |
| Engine Detail | |
| Manufacturer | Chongqing cummins engine Co.,Ltd |
| Model | 6BTAA5.9-G2 |
| Engine speed | 1800rpm |
| Engine Characters | water-cooled,6cylinders in line,4-cycle,direct injection |
| The maximum output(kw) | 145KW |
| Aspiration | Turbocharged |
| Bore(mm)xStroke(mm) | 102*120 |
| Compression ration | 16.5:1 |
| Fuel consumption(L/H) | 30(100%loading) |
| Displacement(Liters) | 5.9 |
| Exhaust air flow(m3/min) | 176 |
| Compress air flow(m3/min) | 7.6 |
| Exhaust gas flow(m3/min) | 21 |
| Exhaust highest temperature | 601°C |
| Lube-oil pan capacity(L) | 16.4 |
| Cooling water capacity(L) | 11Liters(Engine only) |
| Voltage for start(V) | 24 |
| Instrument for adjusting speed | Electronically |
| Noise level(A)@7m | <96dBA(open type) ,<72dBA(silent type) |
| Alternator Detail | |
| Model | STG274C |
| Output power(Kw/Kva) | 100/125 |
| Number of phase | 3 |
| Power factor(Cos Phi) | 0.8 |
| Number of Pole | 6 |
| Exciter type | Shunt |
| Insulation class | H |
| Voltage regulation | 0.50% |
| Total haarmonics (TGH/THC) | 4% |
| Wave form:Nema=TIF | 50 |
| Wave form:I.E.C=THF | 2% |
| Bearing | single |
| Coupling | Direct |
Generator soundproof/Silent and canopy
Ø Excellent ventilation
Ø Black finish stainless steel locks and hinges
Ø Zinc plated or stainless steel fasteners
Ø Body made from steel components treated with polyester powder coating
Ø Two large doors on either side
Ø Radiator fill access plate
Ø Fully guarded cooling fan and battery charging alternator
Ø Fuel fill and battery access via lockable access doors
Ø Emergency stop button on canopy exterior
Ø Lube oil drain and radiator drain to exterior
Ø Control panel viewing window
Ø Lifting points on base frame
Ø 1m<80DBA / 7m<70DBA
Generator set warranty and maintenance:
Ø Do the full power load test for five hours before package.
Ø One year or 1000 working hours, whichever comes first, global warranty for Cummins. Deutz, UK P, Volvo, Daewoo.
Ø After expiration, we provide spare parts maintenance with low price
Cummins :

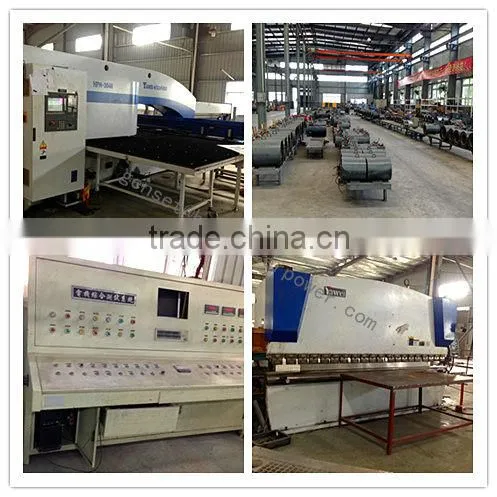

Factory photo
Exhibition
Certificate
