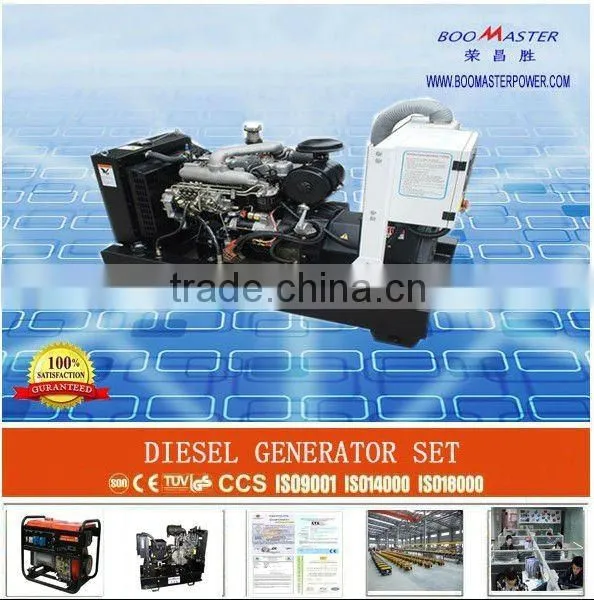

Yanmar Diesel Power Generator Witn 11.6Kw

Name: Yanmar Diesel Power Generator Witn 11.6Kw
Brand: Boomaster
SKU: 103713175
Availability: InStock

Elephant Tech Fuzhou Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

Boomaster

Model Number:

BM16YM5

Payment & Shipping

Payment Methods:

Port of Shipment:

Fuzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name Boomaster

Model Number BM16YM5

Output Type AC Three Phase

Speed 1500rpm

Frequency 50Hz

Rated Power 11.6Kw/14.5Kva

Rated Voltage 230/400V

Specifications

1.Quality Approvals
2.Small Orders Accepted
3.Enjoy Good Reputation
3.Prompt Delivery
4.Guarantee/Warranty

Product Overview
1) Brand-new engine,w/start motor.
2) Brushless alternator,single bearing,flange connection,IP23,H insulation class,with AVR.
3) Auto control panel with LCD display.
4) Engine mounted battery-charging alternator,Genset with battery charge of main supply.
5) Circuit Breaker,Exhaust Silencer.
6) Copper Radiator for 40°C ambient temperature and double-deck cooling,with fan guard and front guard.
7) Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable.
8) Skid-mounted bottom 8 hours fuel tank.
9) Extemal recessed emergency stop button for extra safety.
10)Optional:Soundproof,ATS(automatic transfer switch),AMF panel,Trailer,Parallel system.

Genset Specification
Genset Model	BM16YM5(50Hz)
Prime Power(Kva/Kw)	11.6Kw/14.5Kva(50Hz)
Engine Model	YANMAR 3TNV84T
Alternator Model	PI044G(50Hz)
Speed Control type	Centrifugal-all speed governor
Phase	Three
Fuel Tank Capacity	50 L
System Voltage	12V
Frequency	50/60 Hz
Fuel injection pump	Bosch in-line, Yanmar made
Emission level	Stage 4
Dimension(LWH mm)
Open Type	14607301170
Silent Type	18007401150

Engine Detail
Model	YANMAR 3TNV84T
Maximum output(kw)	15.8KW(50Hz)
Number of Cylinders	3
Aspiration	Naturally aspirated
Cycle	4
Fuel Type	Diesel
Combustion Type	Indirect Injection
Cooling Type	Water cooled
Coolant Capacity	2liter
Lubrication Capacity	6.7 liter
Bore*Stroke	84*90mm
Displacement	1.496 L
Compression ratio	19:01

Alternator Detail
Model	PI044G(50Hz)
Insulation	Clase"H"
Execitation Type	Self-excitation
Protection class	IP23
