Help Center10KW/12KVA Yanmar Diesel Generator
Related Products
-
20kva China Yanmar Diesel Generators Electric Generators UsedUS$ 2,050 - 2,500MOQ: 1 Set -
8kw Yanmar Diesel GensetNegotiableMOQ: 1 Set
-
8Kw Yanmar Diesel Generator PricesNegotiableMOQ: 1 Set
-
56kva Yanmar Diesel Generator SetUS$ 1,999 - 19,999MOQ: 1 Set
-
49kva China Yanmar Diesel Generator Power Plant DesignUS$ 3,900 - 4,600MOQ: 1 Set
Specifications
1.CE,ISO2.Deepsea controller,ATS
3.1000 hours/12 months warranty
4.Low noise
5.power:10kw/12kva
10kw/12kva yanmar diesel generator
Generator Supply Scope:
Ø .Standrad tool kits and complete operation/maintenance/spare parts manuals to Engine/Alternator
Ø .brand-new engine, w/ start motor.
Ø .brand new brushless alternator, single bearing, flange connection, IP23, H insulation class, with AVR.
Ø .auto control panel, with LCD display.
Ø .Engine mounted battery-charging alternator, Genset with battery charger of mains supply.
Ø .Circuit Breaker,Exhaust Silencer
Ø .Copper Radiator for 50°C ambient temperature and bouble-deck cooling,with fan guard and front guard
Ø .Antivibration pads are fixed between engine/alternator and base frame,as to ensure the compete genset running under stablilization.
Ø .Skid-mounted bottom Fuel tank - 8hrs continous running(bigger fuel tank by your demand under extra cost)
Ø .External recessed emergency stop button for extra safety
Ø .The colors & Brands by your requests
Ø .Optional Choice:Soundproof, ATS (automatic transfer switch), AMF panel, Trailer, Parallel system by your extra choose.
Diesel Engine Specifications
Engine Model |
3TNV88-GGE |
Engine manufacturer |
Yanmar |
Number of Cylinders |
3 |
Cylinder arrangement |
Vertical in line |
Cycle |
4-cycle |
Intake system |
Turbocharged |
Bore x Stroke (mm x mm) |
70 x 74 |
Displacement (L) |
0.57 |
19. |
|
Prime Power/Speed (KW / rpm) |
11 / 1500 |
Standby Power/Speed (KW / rpm) |
12 / 1500 |
Speed Governor |
Mechanical |
Cooling System |
Water-cooled, 40°C Radiator as Standard, 50°C Is Optional |
Speed Stability (%) |
≤5% |
Lubrication system capacity (L) |
6.7 |
Coolant capacity (L) |
2 |
Fuel Consumption at 100% Load (g/kWh) |
245 (at 1500RPM) |
Starter Motor |
DC12V |
Alternator |
AC12V |
Alternator Specifications
Brand |
Original Stamford |
Model |
PI 044E |
Prime Power |
10KW/12KVA |
Rated Current (A) |
11 |
Rated Voltage |
220V / 380V |
Frequency |
50HZ @ 1500rpm |
Power Factor(COS) |
0.8 |
Phase |
3-phase 4-wire |
Excitation |
Brushless, Self-excited, Automatic voltage regulation. Insulation Class: H . Protection Grade : IP23. |
Voltage Regulation |
AVR |
The regulating rate of steady voltage |
≤1% |
The regulating rate of instantaneous voltage: |
-15%~ +20% |
The time of steady voltage: |
≤1.5sec |
The waving rate of voltage: |
≤1.0% |
The regulating rate of steady frequency: |
≤3% |
The regulating rate of instantaneous frequency: |
≤±10% |
The time of steady frequency: |
3sec |
The waving rate of frequency: |
≤1% |
Generator set warranty and maintenance:
Ø Do the full power load test for five hours before package.
Ø One year or 1000 working hours, whichever comes first, global warranty for Cummins. Deutz, UK P, Volvo, Daewoo.
Ø After expiration, we provide spare parts maintenance with low price.
Other pictures:

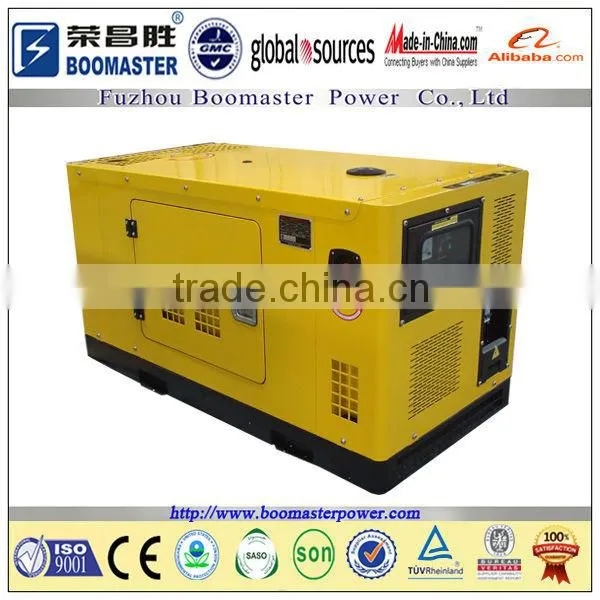

Silent diesel generator
Our factory
Certification
