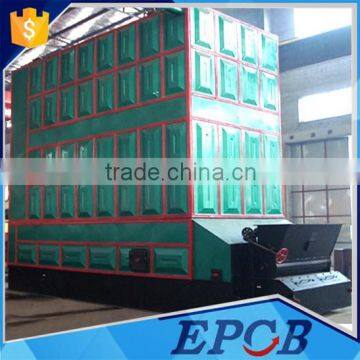

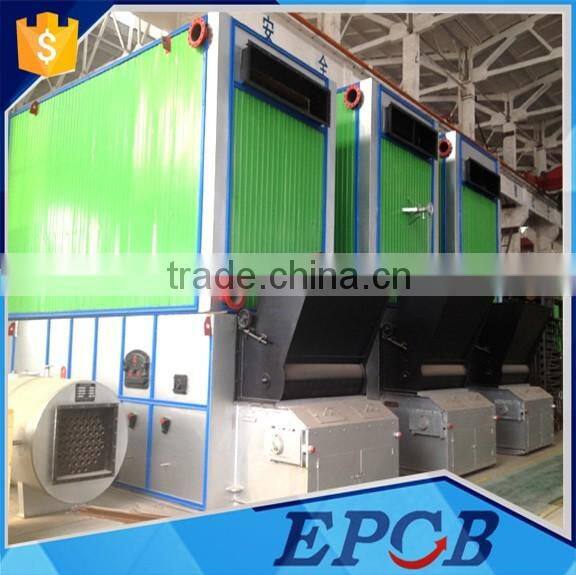

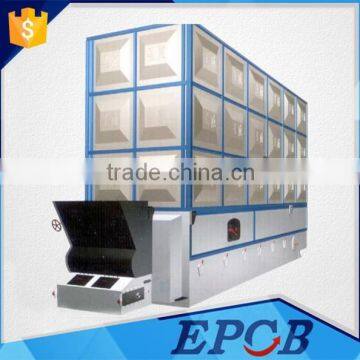

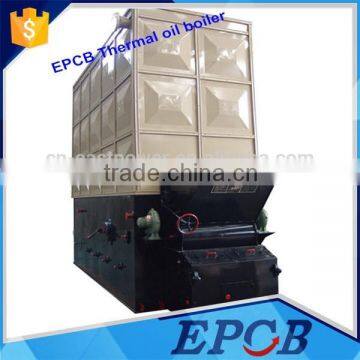

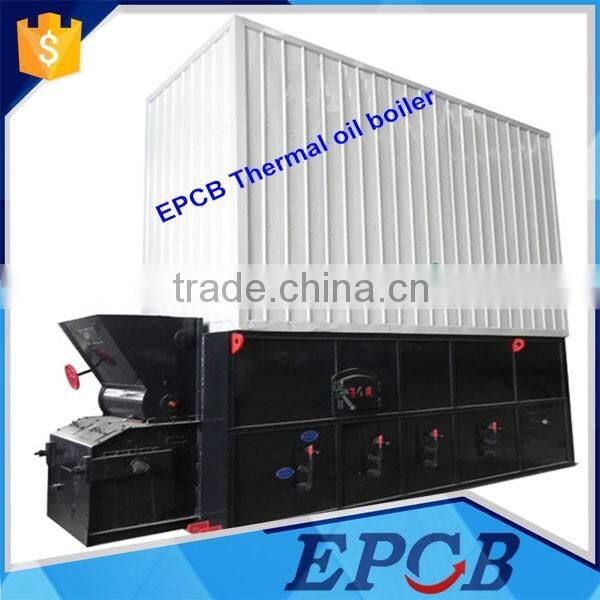

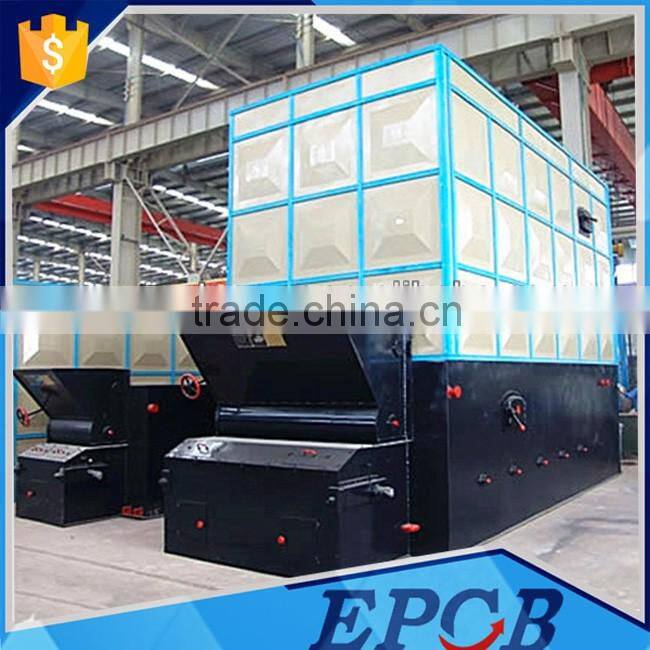

Hot Sale Chain Grate Biomass Fired Hot Oil Boiler
Dear Customer:
Welcome to our website and hope our products will make you satisfied .
We think creatively,design bravely,manufacture precisely and loyalty to
our customers. And we have our own factory.So we can produce the products
according to customer requirements .
Give us a negotiate chance, and we will yield you a surprise .
Yours
EPCB
A: Features of Biomass-fired thermal oil boiler
1. Low steel consumption,high air leakage efficient, high coal leakage volume,suitable to burn I II soft coal, biomass fuel.
2. Adoption of automatic temperature control function is made to achieve stable heating and precise temperature adjustment.
3. It adopts perfect running control and safety monitoring device with safety,reliability and easy operation.
4. Fast temperature rise,high thermal efficiency, with overload capacity at a certain degree to ensure output of boiler.
B: Parameter coal fired thermal oil Boiler
| Horizontal Chain Grate Biomass-fired Thermal Oil Boiler | ||||||||||||||||
| Model | YLW-1900MA-160 | YLW-2300MA-200 | YLW-3000MA-250 | YLW-3500MA-300 | YLW-4000MA-350 | YLW-4600MA-400 | YLW-6000MA-500 | YLW-7000MA-600 | YLW-8000MA-700 | YLW-9300MA-800 | YLW-10000MA-900 | YLW-1200MA-1000 | YLW-14000MA-1200 | YLW-16500MA-1400 | YLW-19000MA-1600 | |
| Rated power | KW | 1900 | 2300 | 3000 | 3500 | 4000 | 4600 | 6000 | 7000 | 8000 | 9300 | 10000 | 12000 | 14000 | 16500 | 19000 |
| ×104 kcal/h | 160 | 200 | 250 | 300 | 350 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1200 | 1400 | 1600 | |
| Rated thermal efficiency % | ≥79 | ≥79 | ≥79 | ≥79 | ≥79 | ≥79 | ≥79 | ≥79 | ≥79 | ≥79 | ≥79 | ≥79 | ≥79 | ≥79 | ≥79 | |
| Rated working pressure MPa | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| ing temperature ℃ | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | |
| Thermal oil capacity m³ | 2.8 | 3.5 | 4.85 | 5.4 | 5.8 | 6.8 | 7.9 | 8.8 | 9.8 | 13.5 | 14.8 | 15.6 | 16.9 | 18.1 | 19.4 | |
| Circulating oil Capacity m3/h | 165 | 200 | 225 | 280 | 280 | 300 | 340 | 400 | 400 | 520 | 600 | 680 | 800 | 800 | 800 | |
| Main valve size | DN150 | DN150 | DN150 | DN200 | DN200 | DN200 | DN250 | DN250 | DN250 | DN300 | DN325 | DN350 | DN350 | DN400 | DN400 | |
| Whole system power kw |
75 | 85 | 85 | 130 | 130 | 150 | 180 | 205 | 205 | 260 | 280 | 310 | 315 | 320 | 350 | |
| Available fuel | AI, AII, AIII soft coal | |||||||||||||||
| Weight (kg) | 21500 | 23000 | 24000 | 29500 | 32000 | 35000 | 45000 | 64000 | 66500 | 66800 | 87600 | 98000 | 128500 | 146000 | 168000 | |
Our Services:
1. 100%safety, running stably, excellent water level and pressure control, fully automatic operation.
2. Boiler running life > 20years.
3. Good after-sale service. It is free for you to get the damaged spares in warranty period (1 year) if there is any question. Assure that we can supply you spares in boiler’s all life.
4. We can arrange engineer to your company for installation and commissioning and training. If you need us at any time, we can send our technicians and prepare in a short time.
5. Special paint is used after assembly. Paint is particularly used in your climate area, which is anti-corrosion, anti-abrasion and color-fastness.
Why do you choose our boiler?
1. Lower dust emission & SO2 emission & NOx emission, dust emission concentration < 30mg/m³
SO2 & NOx emission concentration < 18mg/m³
2. We supply 2 units Water Pump (one duty one standby) which from the famous pump manufacturer.
3. Boiler can achieve automatic temperature control & pressure control & feed water control & feed fuel control & safety indication.We also freely supply you a set of inner parts of Electric controller for standby.
4. Boiler with stainless cladding, anti-corrosion & anti-rust & beautiful appearance.
5. Comprehensive after-sales service. We can design layout drawings of boiler system according to your actual requirement.Also can dispatch engineer to guide installation & commissioning.
Q: Are you manufacturer?
A: Yes, we are manufacturer. Our factory is in Pingdu Qingdao established in 1993.
Q: Do I get guarantee of products?
A: Yes, every product is 1 year quality warrantee under customer correct using the products.
Q: Do you have any Certificate?
A: Yes. Each of our boiler has China GB certificate. If you need CE ASME or AS, we can help you to get it.
Q: How to buy it?
A: Please contact me by email or online, let me know your factory situation, I will give you some advice which model mostly suitable to you.
Q: What about the delivery?
A: We have shipping agent can choosing the cheapest and fastest delivery. FOB,CIF, C&F or EXW are no problem for us
Q: How can I pay you?
A: T/T, LC is very well used.
Q: What about the production?
A: Produce time is 20~25days for <6Ton boiler, 25~40days for >8Ton boiler.
Q: Could you offer some wear parts?
A: Yes, some chain grate bars, electric equipments in control panel box for example.
Q: What about the maintenance?
A: I will offer you the timely maintenance way sheet after installation of the boiler mainly parts.
Tips:
1. If you know your needs clearly, just tell us the fuel, the pressure and the
capacity of the boiler directly.
2. If you are not sure which is the proper boiler for you, just tell us the
production line the boiler will be used for, the fuel that is convenient for you,
the temperature of water or steam you want to reach.
