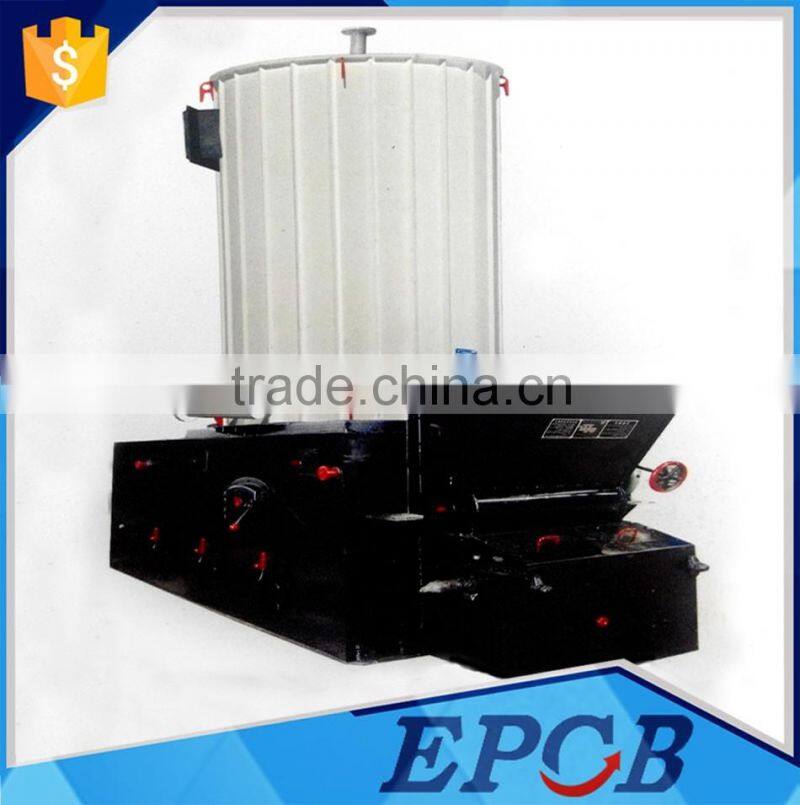

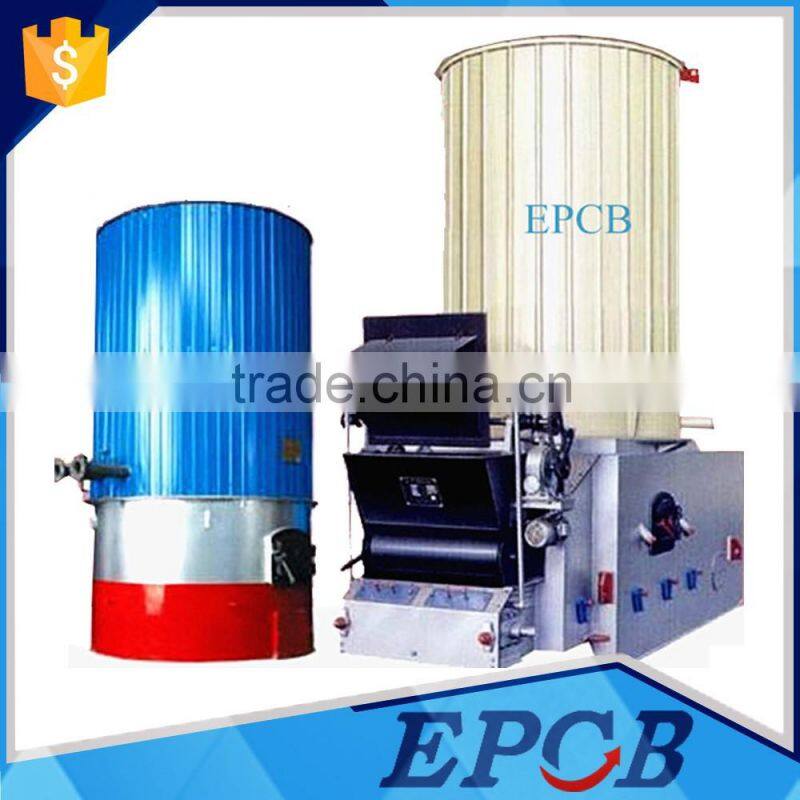

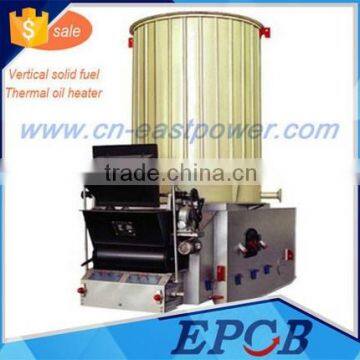

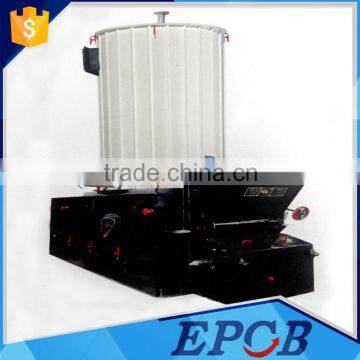

Vertical Low Pressure Chain Grate Biomass Fired Thermal Oil Boiler
I. Features of the thermal oil boiler:
1. The position between the burner joint and the coil is sealed with good seal, large flexible space, to increase the service life of burner and enhance the heating efficiency.
2. Triple coil structure is adopted by the boiler with three-pass flue gas, compact design and space-saving. Heating efficiency of the air pre-heater enhance up to 92% or more.
3. Multiple running with safety protection make boiler’s operation more safety and simply. High temperature control precision (± l°C) and good combustion effect.
4. Automatic control functions, to extend the service life of equipment while saving human resources.
II. Why are you choice our thermal oil boiler?
1. Lower dust emission & SO2 emission & NOx emission,dust emission concentration < 30mg/m³
SO2 & NOx emission concentration < 200mg/m³.
2. Boiler equips European Burner, fuel combustion can achieve automatic adjustment.
3. We supply 2 units High temperature circulating pump (one duty one standby) which from the famous pump manufacturer.
4. Boiler can achieve automatic temperature control & pressure control & feed fuel control & safety indication.We also freely supply you a set of inner parts of Electric controller for standby.
5. Boiler with stainless cladding, anti-corrosion & anti-rust & beautiful appearance.
6. Comprehensive after-sales service.
We can design layout drawings of boiler system according to your actual requirement.
Also can dispatch engineer to guide installation & commissioning.
III. Specifications
IV. Main Technical Parameters:
| Rated thermal power | KW | 180 | 240 | 350 | 600 | 700 | 870 | 1200 | 1400 | 1800 | 2400 | 3000 | 3500 | 4000 | 4600 | 6000 | 7000 | 9600 | 12000 |
| ×104 kcal/h | 15 | 20 | 30 | 50 | 60 | 75 | 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400 | 500 | 600 | 800 | 1000 | |
| Designed thermal efficiency (%) | ≥85 | ||||||||||||||||||
| Rated working pressure (Mpa) | 1 | ||||||||||||||||||
| Maximum operating temperature (°C) | 350 | ||||||||||||||||||
| Hot kerosene capacity (m³) | 0.15 | 0.23 | 0.39 | 0.61 | 0.85 | 1.02 | 1.35 | 1.62 | 1.85 | 2.16 | 2.73 | 3.45 | 3.84 | 4.45 | 5.46 | 6.54 | 8.93 | 11.56 | |
| Circulation oil capacity (m³/h) | 12.5 | 18 | 30 | 50 | 50 | 60 | 100 | 100 | 100 | 160 | 200 | 230 | 230 | 250 | 300 | 400 | 500 | 600 | |
| The main thermal coal caliber (mm) | 50 | 50 | 80 | 100 | 100 | 125 | 125 | 125 | 150 | 200 | 200 | 200 | 250 | 250 | 250 | 250 | 300 | 350 | |
| System-wide installed capacity(oil) KW | 11 | 12 | 14 | 22 | 22 | 40 | 40 | 40 | 40 | 66 | 85 | 85 | 85 | 85 | 100 | 100 | 150 | 150 | |
| System-wide installed capacity(gas) KW | 11 | 17 | 17 | 27 | 28 | 40 | 40 | 40 | 45 | 70 | 70 | 85 | 85 | 85 | 100 | 100 | 150 | 150 | |
| 60#heavy oil (Kg/h) | 20.3 | 27 | 40.6 | 67.7 | 81.2 | 102 | 135 | 162 | 203 | 270 | 338 | 406 | 473 | 541 | 676 | 812 | 1082 | 1353 | |
| Diesel fuel (Kg/h) | 19.6 | 26 | 39 | 65 | 78 | 98 | 130 | 156 | 196 | 261 | 326 | 392 | 457 | 522 | 653 | 784 | 1045 | 1307 | |
| Natural gas (Nm³/h) | 23 | 31 | 47 | 79 | 95 | 119 | 158 | 190 | 238 | 317 | 396 | 476 | 555 | 635 | 793 | 952 | 1269 | 1587 | |
| Liquefied petroleum gas (Nm³/h) | 7.8 | 10.4 | 15.6 | 26 | 31 | 39 | 52 | 62.5 | 78 | 104 | 130 | 156 | 182 | 208 | 260 | 312 | 416 | 520 | |
| City Gas (Nm³/h) | 50 | 66 | 100 | 166 | 200 | 250 | 333 | 400 | 500 | 666 | 833 | 1000 | 1166 | 1333 | 1666 | 2000 | 2666 | 3333 | |
High Quality with Mature Design:
1. Quality:
A grade boiler, A1, A2 grade pressure vessel manufacturing company. All products have passed ISO9001:2008 & ASME International Quality Management System Certification, also can provide CE, AS, GOST certification.
2. Management:
In order to ensure the quality, we strictly monitor the comprehensive quality system from raw material procurement & re-testing & process to storage. All the steels and pipes are purchased from developed countries & the well-known large domestic enterprises.
3. Welding:
Welding mainly uses advanced automatic welding, gas protected welding, TIG welding. Drum and other main pressure parts adopt CNC automatic welding, all of the welding 100% passed penetrant inspection.
4. Market:
Asia: Kazakhstan, Uzbekistan, Kyrgyzstan, Tajikistan, Azerbaijan, Singapore, Hongkong, Philippines, Indonesia, Thailand, myanmar, Laos, United Arab Emirates, Saudi Arabia, Palestine, Afghanistan, Bangladesh, Malaysia, Qatar , Lebanon, Armenia, Yemen, Jordan
America: Colombia, Chile, Suriname,Peru, Bolivia, Ecuador
Africa: Sudan, Cameroon, Algeria, Libya, Benin, Nigeria, Egypt, Ghana, Guinea, Mauritius, Kenya, Ethiopia, Cote d'ivoire, Tunisia
Europe: Serbia, Albania
