200kw Cummins Engine Generator Set With CE ISO EPA
US$ 18,500 - 18,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Boomaster 200kw cummins engine generator set
Model Number:
C250
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
38Kva Cummins Engine Diesel Electric Generator Dynamo Sets for SaleUS$ 5,076 - 5,865MOQ: 1 Set -
Cummins Engine Generator Set 100kw/125kvaUS$ 6,899 - 7,199MOQ: 1 Set
-
Soundpoof Industrial Diesel Generator SetUS$ 2,999 - 19,999MOQ: 1 Set
-
Cummins Engine Generator Set 200KVAUS$ 12,999 - 14,999MOQ: 1 Set
-
64Kw Cummins Engine Silent Type Diesel Generator,Kubota,Deutz,chinese Engine Generator for OptionalUS$ 3,999 - 19,999MOQ: 1 Set
Place of Origin
Fujian, China
Brand Name
Boomaster 200kw cummins engine generator set
Model Number
C250
Output Type
AC Three Phase
Speed
1800rpm
Frequency
60Hz
Rated Power
250KVA
Rated Voltage
220 to 240 and 380 to 415V

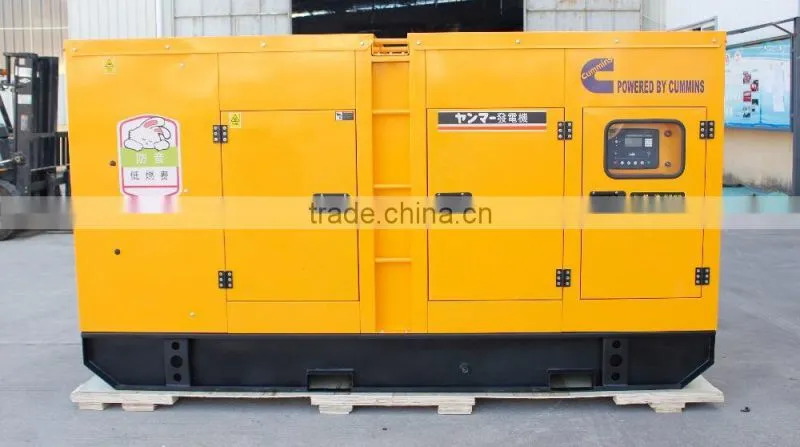

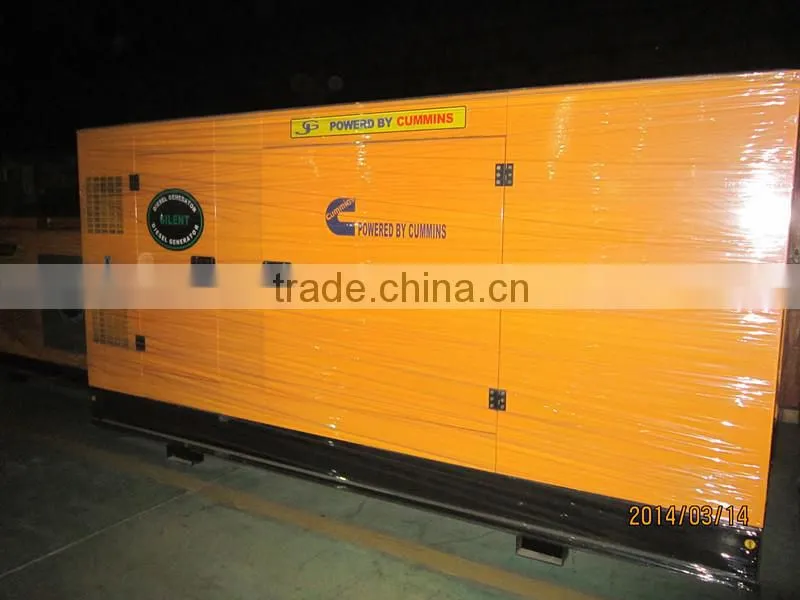

200kw cummins engine generator set with CE ISO EPA
If any items as below meet your market,please feel free to contact us!!
| Genset Specification | |
| Genset Model | BC-250 |
| Prime Power(Kw/Kva) | 200/250 |
| Frequency | 60Hz |
| Structure type | Open or Soudproof |
| Dba"@7m | silent genset 55-78 dba @ 7m , open type75-98 dba @7m |
| Engine Model | 6LTAA8.9-G2 |
| Alternator Model | STG274H |
| Open type DimensionL*W*H(mm) | 2300*900*1600 |
| Weight(Kg) | 2300 |
| Silent type DimensionL*W*H(mm) | 2400*1100*1700 |
| Weight(Kg) | 2600 |
| Engine Detail | |
| Manufacturer | Chongqing cummins engine Co.,Ltd |
| Model | 6LTAA8.9-G2 |
| Engine speed | 1800rpm |
| Engine Characters | water-cooled,6cylinders in line,4-cycle,direct injection |
| The maximum output(kw) | 240KW |
| Aspiration | Turbocharged |
| Bore(mm)xStroke(mm) | 114*135 |
| Compression ration | 16.6:1 |
| Fuel consumption(L/H) | 53(100%loading) |
| Displacement(Liters) | 8.9 |
| Exhaust air flow(m3/min) | 490 |
| Compress air flow(m3/min) | 20.7 |
| Exhaust gas flow(m3/min) | 56.9 |
| Exhaust highest temperature | 541°C |
| Lube-oil pan capacity(L) | 36.7 |
| Cooling water capacity(L) | 11.1Liters(Engine only) |
| Voltage for start(V) | 24 |
| Instrument for adjusting speed | Electronically |
| Alternator Detail | |
| Model | STG274H |
| Output power(Kw/Kva) | 200/250 |
| Number of phase | 3 |
| Power factor(Cos Phi) | 0.8 |
| Number of Pole | 6 |
| Exciter type | Shunt |
| Insulation class | H |
| Voltage regulation | 0.50% |
| Total haarmonics (TGH/THC) | 4% |
| Wave form:Nema=TIF | 50 |
| Wave form:I.E.C=THF | 2% |
| Bearing | single |
| Coupling | Direct |
Guaranty:
Guarantee for one year or 1000 hours (whichever comes first) from ex-factory date. During the guarantee period, our Boomaster will provide the free easy-damaged spare parts for problems caused by our quality of production or raw materials,
except the damage caused by customer's incorrect manmade operation.
After expiration, our company will provides cost spare parts maintenance for genset
MOQ |
1 set |
Delivery Clause |
FOB Fuzhou |
Terms of payment |
T/T, L/C at sight |
.Leading Professional manufacturer of power generator
.Certification:CE EPA ISO IEC
.Fast delivery:we will do our best to meet your requirement when you need it.
.Product quality :Famous high quality engine.we offer spare parts.
.OEM is warmly welcomed
