Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > Cummins Engine Generator Set 100kw/125kva

Cummins Engine Generator Set 100kw/125kva

Cummins Engine Generator Set 100kw/125kva photo-1

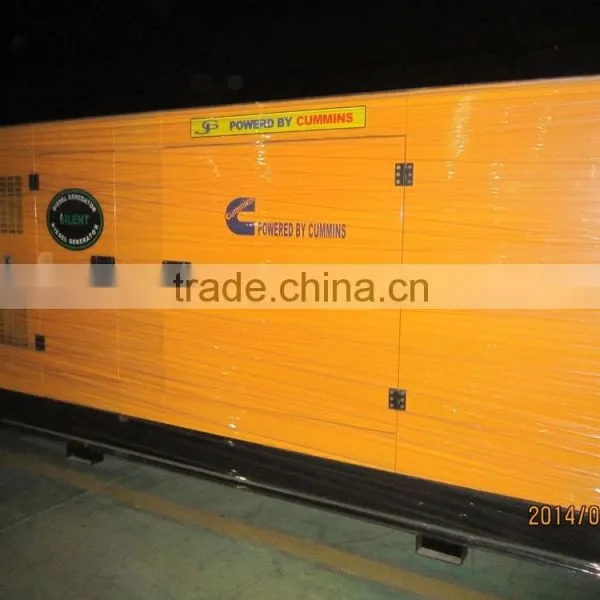

Cummins Engine Generator Set 100kw/125kva photo-2
US$ 6,899 - 7,199 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Micfull
Model Number:
MRC150
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou Port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Fujian, China
Brand Name Micfull
Model Number MRC150
Output Type AC Three Phase
Speed 1,500rpm
Frequency 50Hz
Rated Power 150KVA
Rated Voltage 400V

Cummins Engine Diesel Generator Set 100kw



1.Product Description





 Generator Details







PRIME:100kw/125KVA

STANBY:132KW/165KVA

Frequency: 50 Hz
Voltage: 400V
Engine Speed: 1500 RPM

Dimension
Open Type                   1850×730×1400mm
Weight:                      900kgs (Open Type)









Engine Details







Manufacturer: Cummins power by
Country of origin: CHINA
Engine Model: 6CTA-8.3-G2

Engine Speed: 1500RPM

PRIME POWER:163kw

STANBY POWER:180kw

Type………………………………… 6Cylinders, turbocharged

Combustion Type………………   Direct Inject
Number of Cylinder……………   In line 6 cylinders
Bore ×Stroke……………………   114×135mm
Displacement……………………    8.3 L
Cranking Motor………………….   24 V DC

Compression Ratio……………    17.3 :1
Governor Method………………    electronic Governor
Lub. Method……………………...   Full force pressure feed type
Cooling Method………………….    Fresh water force circulation
Starting Method…………………     Electric Motor 24V
Fuel Filter…………………………...  Full flow, cartridge type
Oil Filter……………………………..   Full flow, cartridge type
Lube oil Capacity………………..     23.8L
Fuel Consumption………………     210g/kw.h (full loading)













Alternator Details







Manufacturer: STAMFORD
Country: CHINA
Rated Power Factor………………………..0.8
Insulation Class…………………………… ..H
Protection Class……………………………..IP23
Number of Pole……………………………..4
Number of wire……………………………..3 phase 4 wires
Excitation……………………………………….Brushless, Self-excited

Cooling System………………………………IC01
Winding Pitch………………………………….2/3
Rotor support type………………………….Single type

Voltage regulation…………………………..+/- 0.5%
Total harmonic TGH/THC…………………At no load <1.5%,on load <2%
Wave form: NEMA (TIF)……………………<50
Wave form: IEC (THF)……………………….<2%







2.Shipping and payment



MOQ

1 set

Delivery Clause

FOB Fuzhou

Delievery time

25 to 30 days after the order is confirmed

Terms of payment

T/T, L/C at sight

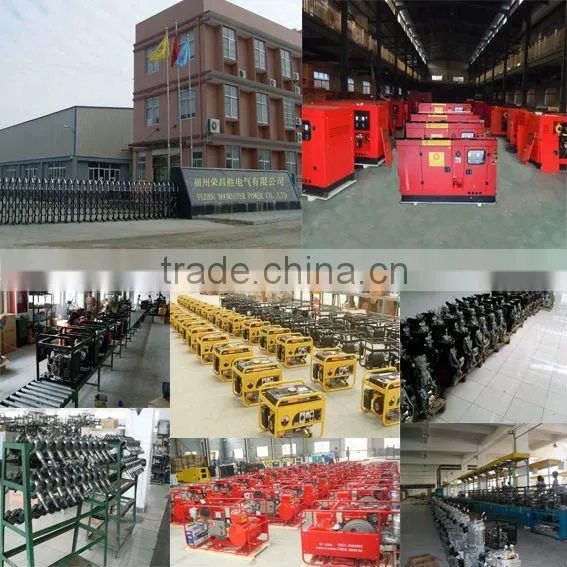

3.Company tour

Cummins engine Generator Set 100kw/125kva





4.Our advantage

  .Leading Professional manufacturer of power generator

 .Certification:CE EPA ISO IEC

 .Fast delivery:we will do our best to meet your requirement when you need it.

 .Product quality :Famous high quality engine.we offer spare parts.

 .Excellent sales and service team.Should  you have any problem,feel free to contact with us.We will do

 .OEM is warmly welcomed



 5.Certification:CE ISO EPA



Cummins engine Generator Set 100kw/125kvaCummins engine Generator Set 100kw/125kvaCummins engine Generator Set 100kw/125kvaCummins engine Generator Set 100kw/125kva
