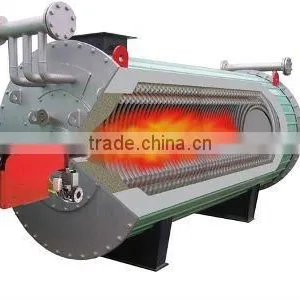

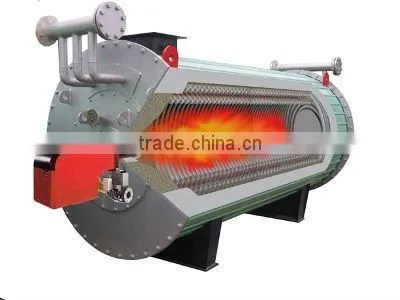

ASME Waste Oil Boiler

Name: ASME Waste Oil Boiler
Brand: EPCB
SKU: 103711065

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Type:

Natural Circulation

Usage:

Other, multi-purpose

Structure:

Fire Tube

Qingdao East Power Industry Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Type Natural Circulation

Usage Other, multi-purpose

Structure Fire Tube

Pressure Other, normal pressure

Style Vertical

Fuel Oil-fired

Place of Origin China

Brand Name EPCB

Model Number YY(Q)L

Output Other, thermal oil

Specifications

High heating efficiency, compact design and space-saving, operation safety, precise temperature control, nice combustion effect

Main Techncal Parameters:

Rated thermal power	KW	180	240	350	600	700	870	1200	1400	1800	2400	3000	3500	4000	4600	6000	7000	9600	12000
Rated thermal power	×104 kcal/h	15	20	30	50	60	75	100	120	150	200	250	300	350	400	500	600	800	1000
Designed thermal efficiency (%)		≥85
Rated working pressure (Mpa)		1
Maximum operating temperature (°C)		350
Hot kerosene capacity (m³)		0.95	0.32	0.46	0.78	0.96	1.21	1.56	1.82	2.02	2.38	2.96	3.85	4.04	4.65	5.68	6.84	9.03	12.06
Circulation oil capacity (m³/h)		12.5	18	30	50	50	60	100	100	100	160	200	230	230	250	300	400	500	600
The main thermal coal caliber (mm)		50	80	80	100	100	125	125	125	150	200	200	200	250	250	250	250	300	350
System-wide installed capacity(oil) KW		11	12	14	22	22	40	40	40	40	66	85	85	85	85	100	100	150	150
System-wide installed capacity(gas) KW		11	17	17	27	28	40	40	40	45	70	70	85	85	85	100	100	150	150
60#heavy oil (Kg/h)		20.3	27	40.6	67.7	81.2	102	135	162	203	270	338	406	473	541	676	812	1082	1353
Diesel fuel (Kg/h)		19.6	26	39	65	78	98	130	156	196	261	326	392	457	522	653	784	1045	1307
Natural gas (Nm³/h)		23	31	47	79	95	119	158	190	238	317	396	476	555	635	793	952	1269	1587
Liquefied petroleum gas (Nm³/h)		7.8	10.4	15.6	26	31	39	52	62.5	78	104	130	156	182	208	260	312	416	520
City Gas (Nm³/h)		50	66	100	166	200	250	333	400	500	666	833	1000	1166	1333	1666	2000	2666	3333
