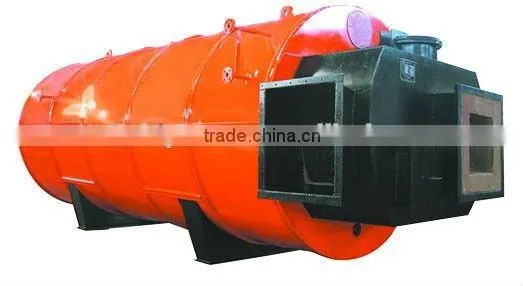

Help CenterWaste Heat Boiler
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Natural Circulation
Usage:
Industrial
Structure:
Fire Tube
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Exhaust Heat BoilerNegotiableMOQ: 1 Set -
Fully Automatic Feeding Fuel Industrial BoilerUS$ 10,000 - 300,000MOQ: 1 Set
-
High Grade Wood Pellet Thermax Oil BoilerUS$ 10,000 - 300,000MOQ: 1 Set
-
Pellet Thermax Oil Boiler for Food FactoryUS$ 10,000 - 300,000MOQ: 1 Set
-
Excellent Quality Pellet Thermal Oil Boiler for OvenUS$ 10,000 - 300,000MOQ: 1 Set
Type
Natural Circulation
Usage
Industrial
Structure
Fire Tube
Pressure
Other, According to the fact requires
Style
Horizontal
Fuel
Waste Heat
Place of Origin
China
Brand Name
EPCB
Model Number
Q10/1000-4-1.25
Output
Steam
Specifications
Using waste heat, save energy and economics;Compact structure, good sealing performance, no pollution, safety and reliability
| Heat Recovery Boiler | ||||||||
| Item / Model | Q10/1000-4-1.25 | Q18/900-6-1.25/1.6 | Q26/900-8-1.25/2.0 | Q36/900-10-1.25/1.6 | Q40/850-12-1.25 | Q50/900-15-1.25/1.6 | Q75/900-25-3.82 | Q130/950-35-3.82 |
| Rated evaporation (t/h) |
4 | 6 | 8 | 10 | 12 | 15 | 25 | 35 |
| Rated working pressure (Mpa) |
1.25 | 1.25/1.6 | 1.25/2.0 | 1.25/1.6 | 1.25 | 1.25/1.6 | 3.82 | 3.82 |
| Flue gas flow (nm³/h) |
10000 | 18000 | 26000 | 36000 | 40000 | 50000 | 75000 | 130000 |
| Inlet flue gas temperature (°C) |
1000 | 900 | 900 | 900 | 850 | 900 | 900 | 950 |
| Rated steam temperature (°C) |
350 | 280 | 250/300 | 250/300 | 194 | 280/300 | 450 | 450 |
| Heated area | 278 | 371.3 | 418 | 506 | 683 | 842.5/871.7 | 1145 | 1961 |
| Superheater heated area | 11.5 | 9.46 | 9.55/13.8 | 12.4 | / | 30.5 | 171 | 270 |
| System resistance (pa) | <1000 | <1000 | <1000 | <1000 | <2000 | <1500 | <1500 | <1600 |
| Transport weight (t) | 24.5 | 25.4/28.2 | 32.4 | 38.8 | 38.9 | Bulk | Bulk | Bulk |
| Application scope | Chemical industry | |||||||
