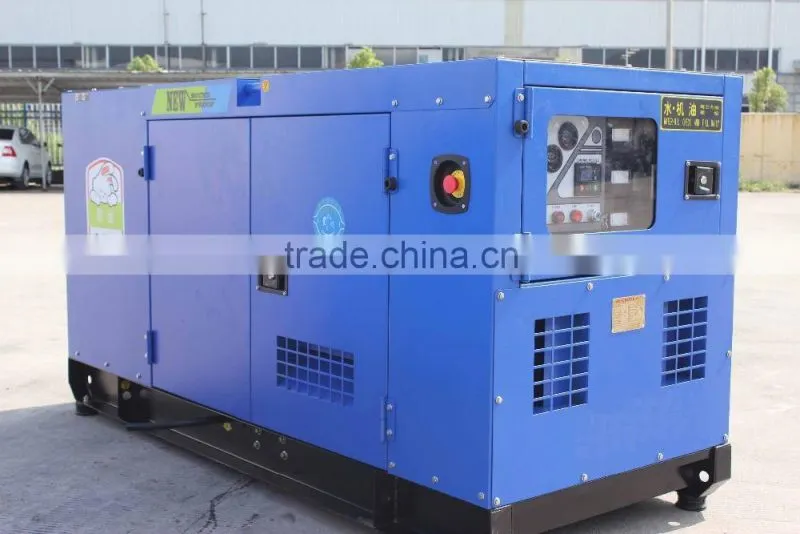

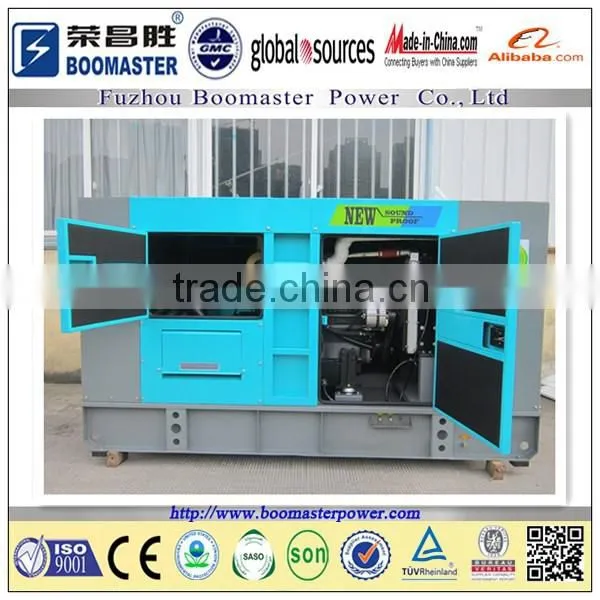

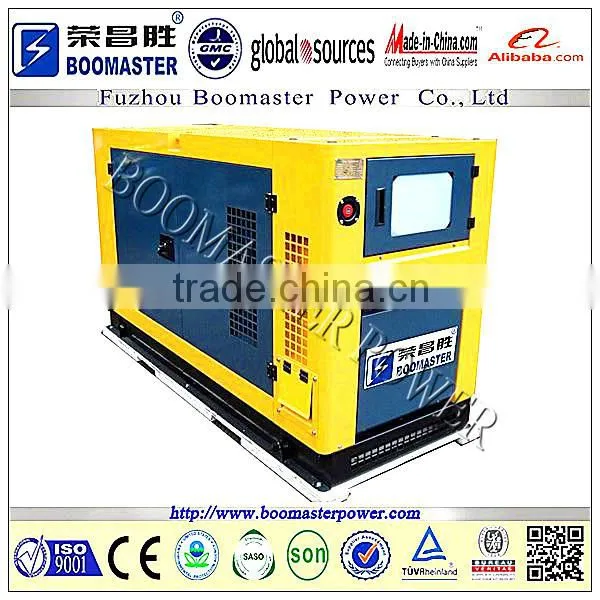

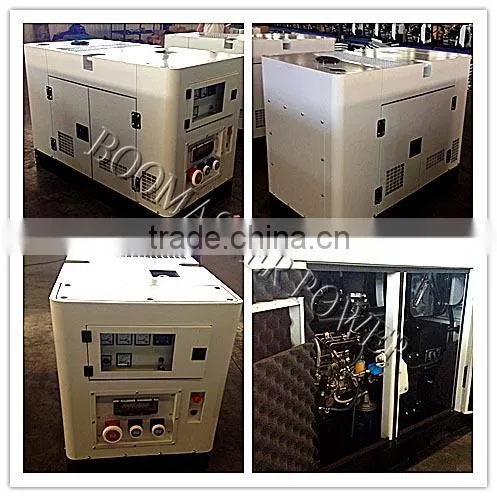

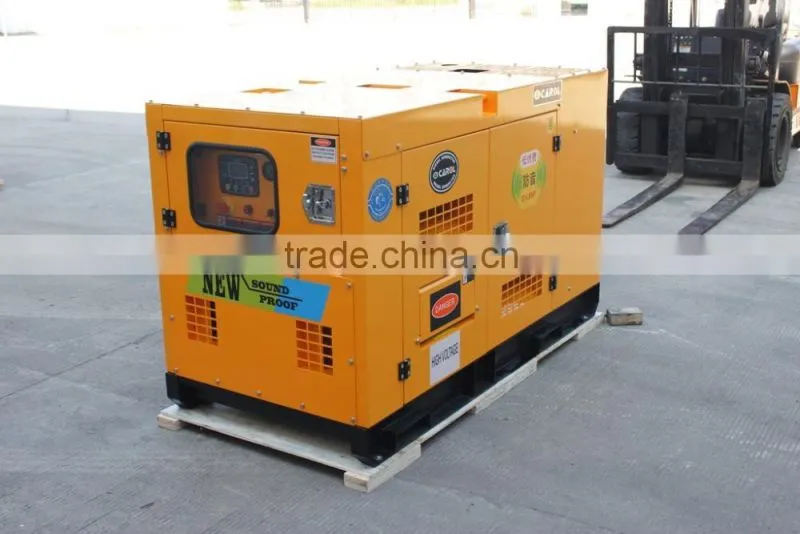

20kw 25kva Diesel Silent Electric Generator

Name: 20kw 25kva Diesel Silent Electric Generator
Brand: Poweronly
SKU: 103709775
Availability: InStock

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

Poweronly

Model Number:

DG-28S electric generator

Elephant Tech Fuzhou Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name Poweronly

Model Number DG-28S electric generator

Output Type AC Three Phase

Speed 1500RPM / 1800RPM

Frequency 50HZ

Rated Power 25KVA

Rated Voltage 220/380V

Rated Current 36.08A

20kw25kva Diesel EngineElectric Generator

Electric Generator Specification

javascript:void(0);javascript:void(0);


Model		DG-28S
Generator
Frequency	Hz	50	60
Rated Power	Kva	25	28
Voltage	V	50Hz: 200 or 380 or 400 or 415, 60Hz: 220 or 440(Dual Voltage)
Power Factory	%	80%
Class of rating		Continuous
Exciting Method		Brushless (with A.V.R.)
No.of Phase		3-Phase,4-Wire
Diesel Engine
model		490D
Prime Power	ps/kw	32.65/24	38.1/28
Speed	rpm	1500	1800
Diesel Engine Type		naturally aspirated, forced water cooling
cylinder no.	L	4
Bor*stroke(mm)		90*105
chamber type		direct injection
Starting systerm		Electric Starting
Fuel consumption (50/75% load)	L/hr	3.43/5.15	4.0/6/.0
Standar parts:		storage batter. 8hours the fuel tank.Emergency stop switch .shock absorbers. radiator.silencer,drain outlet ,fuel systerm etc
Controller		Smartgen HGM180 .Deepsea DSE3110. Harsen Gu601A
Optional parts		ATS.Trailer.16hours fuel tank

Noise (db)	db	silent genset 55-78 dba @ 7m
Dimensionsmm	mm	2000x900x1040
New Weight(kg)	kg	900
