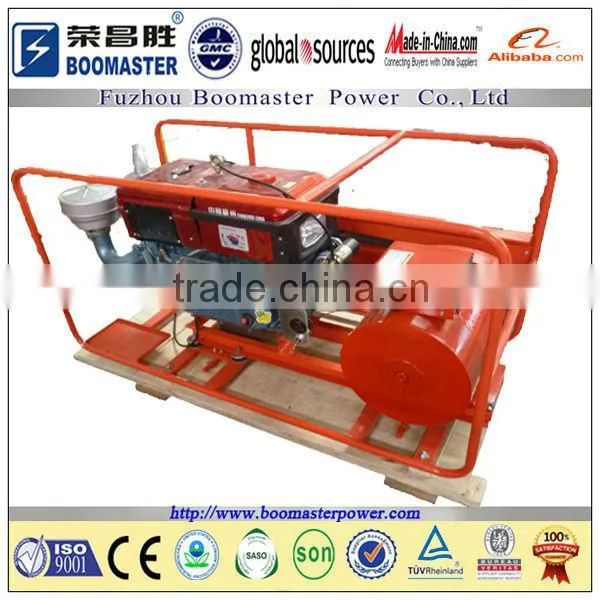

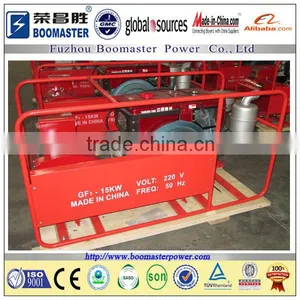

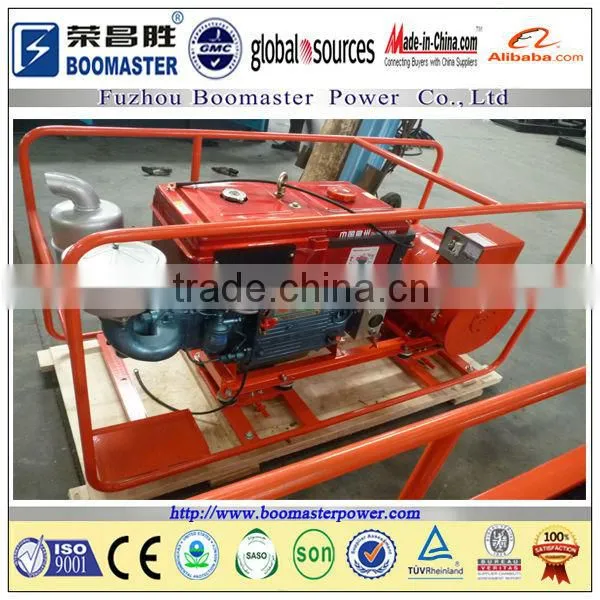

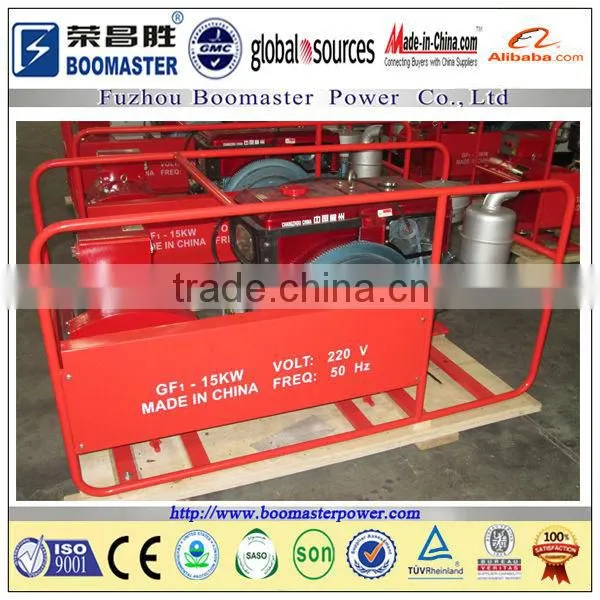

3-15kw Water Cooled Single Cylinder Generator Set
US$ 1,800 - 2,200
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Boomaster
Model Number:
GF1 -3
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Silent Diesel Generator SetUS$ 1,999 - 5,999MOQ: 1 Set -
Denyo 20 KVA GeneratorUS$ 2,500 - 2,900MOQ: 1 Set
-
AC Single Phase Output Type Electric Start for GeneratorUS$ 2,500 - 2,900MOQ: 1 Set
-
AC Three Phase Output Type Super Silent Diesel Generator 20kvaUS$ 2,500 - 2,900MOQ: 1 Set
-
AC Three Phase Output Type 10kva GeneratorUS$ 2,000 - 2,500MOQ: 1 Set
Place of Origin
Fujian, China
Brand Name
Boomaster
Model Number
GF1 -3
Output Type
AC Three Phase
Speed
1500RPM
Frequency
50HZ
Rated Power
3KW-15KW
Rated Voltage
220/380V
Rated Current
13A-68A
Specifications
3-15kw water cooled single cylinder generator set1.delivery time:20 days
2.warranty period:1-2 year
3.OEM
3-15kw water cooled single cylinder generator set
| |||||||||||||||
| Diesel Engine | GenSet model | GF1-3 | GF1-5 | GF1-8 | GF1-10 | GF1-12 | GF1-15 | ||||||||
| Prime Power | 3kw | 5kw | 8kw | 10kw | 12kw | 15kw | |||||||||
| Engine Mode | S175 | S190 | S1100 | S1105 | ZS1110 | L28M | |||||||||
| Starting system | Manual/Electric start | ||||||||||||||
| Fuel consumption | 270 | 250 | 250 | 250 | 250 | 250 | |||||||||
| ( g/kW·h) | |||||||||||||||
| Type | Horizontal, single-cylinder, four-stroke, water-cooled | ||||||||||||||
| Cooling type | Closed circulating cooling (condensor) | ||||||||||||||
| Rated speed | 1500/1800 | ||||||||||||||
| Alternator | Mode | STC-3 | STC-5 | STC-8 | STC-10 | STC-12 | STC-15 | ||||||||
| (ST-3) | (ST-5) | (ST-8) | (ST-10) | (ST-12) | (ST-15) | ||||||||||
| Rated freq. (Hz) | 50/60 | ||||||||||||||
| Rated voltage(V) | 400/230 | ||||||||||||||
| Rated current(A) | 5.4(13/25) | 9(21.7/43.5) | 14.4(32.6/65.2) | 18(43.5/87) | 21.6(52.2/104.3) | 27/65.2 | |||||||||
| Rated output(kW) | 3 | 5 | 8 | 10 | 12 | 15 | |||||||||
| Power factor | 0.8LAG(1.0) | ||||||||||||||
| Type | Triple harmonic, 3phase(single-phase) | ||||||||||||||
| Diesel Genset | Dimensions( mm) | 1050X500X720 | 1320X650X860 | 1320x650x860 | 1320x650x860 | 1320x650x860 | 1500x800x950 | ||||||||
| Net weight (kg) | 170 | 320 | 350 | 360 | 380 | 420 | |||||||||
Generator set warranty and maintenance:
Ø five hours full loading testing before package.
Ø One year or 1000 working hours, whichever comes first, global warranty for Cummins. Deutz, UK P, Volvo, Daewoo
Ø After expiration, we provide spare parts maintenance with low price.

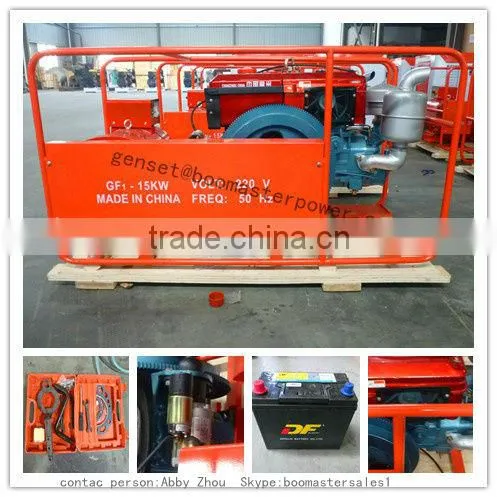

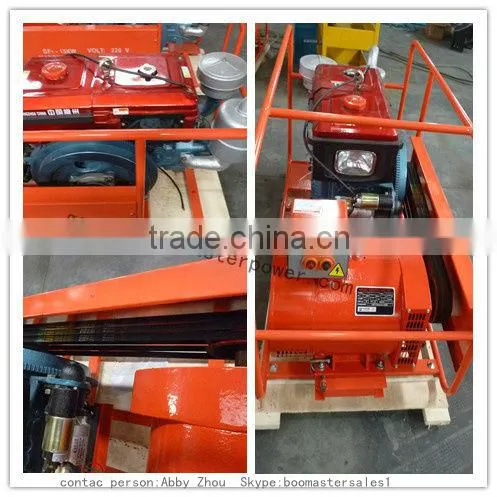

generator set photo:

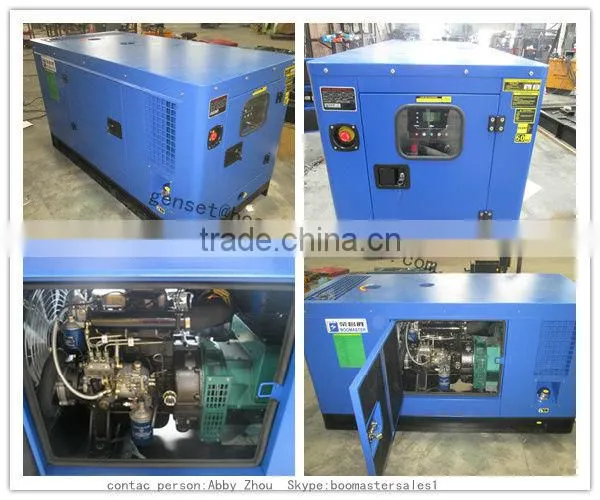

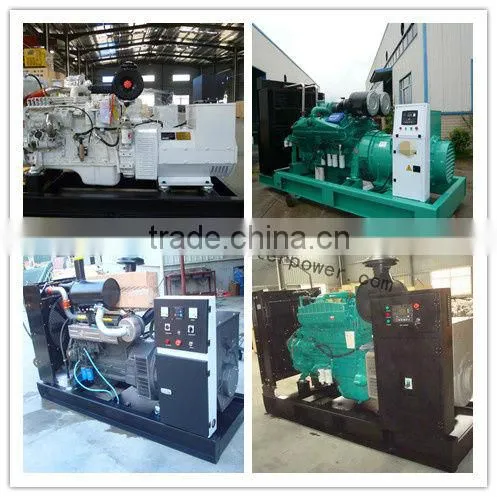

Available other series model

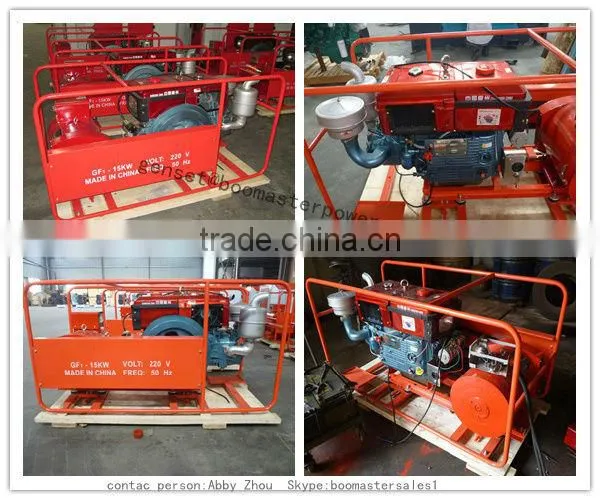

Open frame genset available :
Factory photo
Packing photo
Certificate
