10kw 10kva Silent Diesel Generator

10kw 10kva Silent Diesel Generator thumbnail-1
10kw 10kva Silent Diesel Generator thumbnail-2
10kw 10kva Silent Diesel Generator thumbnail-3
10kw 10kva Silent Diesel Generator photo-1
10kw 10kva Silent Diesel Generator photo-2
10kw 10kva Silent Diesel Generator photo-3
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Boomaeter
Model Number:
SDG-12S
Contact Supplier Request Quote Chat Now
Elephant Tech Fuzhou Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name Boomaeter
Model Number SDG-12S
Output Type AC Single Phase
Speed 1500rpm
Frequency 50Hz
Rated Power 10\12
Rated Voltage 220V
Rated Current 48A

Specifications

10kw silent diesel generator
1) Rated power: 10kw 12kva
2) with ISO and CE
3) silent type

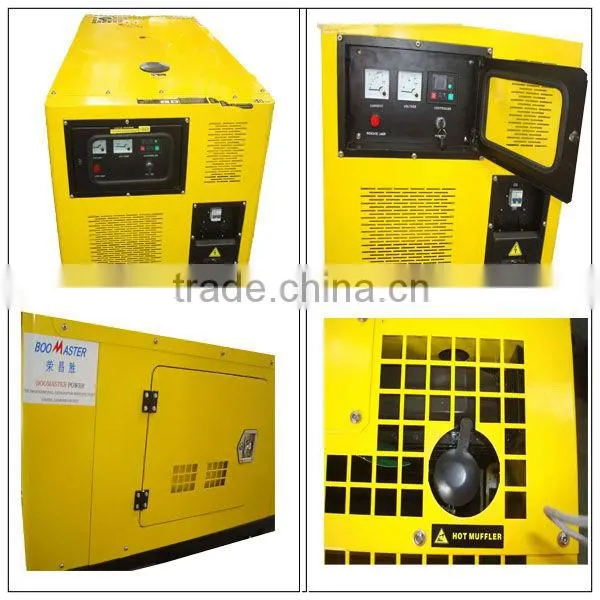

10kw 12kva silent diesel generator



Product Overview

1) Brand-new engine,w/start motor.
2) Brushless alternator,single bearing,flange connection,IP23,H insulation class,with AVR.
3) Auto control panel with LCD display.
4) Engine mounted battery-charging alternator,Genset with battery charge of main supply.
5) Circuit Breaker,Exhaust Silencer.
6) Copper Radiator for 40°C ambient temperature and double-deck cooling,with fan guard and front guard.
7) Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable.
8) Skid-mounted bottom 8 hours fuel tank.
9) Extemal recessed emergency stop button for extra safety.
10)Optional:Soundproof,ATS(automatic transfer switch),AMF panel,Trailer,Parallel system.

12Kva Quanchai diesel generator
Genset Specification
Genset Model SDG-12S
Prime Power(Kw/Kva) 1012
Frequency 50Hz
Structure type Open or Soudproof
Dba"@7m silent genset 55-78 dba @ 7m , open type75-98 dba @7m
Engine Model QC385D
Alternator Model STG164C
Open type DimensionL*W*H(mm) 1600x700x900
Weight(Kg) 420
Silent type DimensionL*W*H(mm) 1660x880x950
Weight(Kg) 520

Engine Detail
Manufacturer Quanchai engine Co.,Ltd
Model QC385D
Engine speed 1500rpm
Engine power
…………Prime power 11KW(50Hz)
Type vertical,4cylinder,in-line,water-cooled,four-stroke
Aspiration Naturally aspirated
Governor electrical
Bore*Stroke 85*90mm
Displacement 1.532L

Alternator Detail
Model STG164C
Output power(Kw/Kva) 1012
Number of phase 3
Power factor(Cos Phi) 0.8
Number of Pole 4
Exciter type Shunt
Insulation class H
Voltage regulation 0.50%
Total haarmonics (TGH/THC) 4%
Wave form:Nema=TIF 50
Wave form:I.E.C=THF 2%
Bearing single
Coupling Direct

 10kw 10kva silent diesel generator10kw 10kva silent diesel generator10kw 10kva silent diesel generator
