10kw diesel generator set,silent diesel generator 10kw/12kva

Specifications

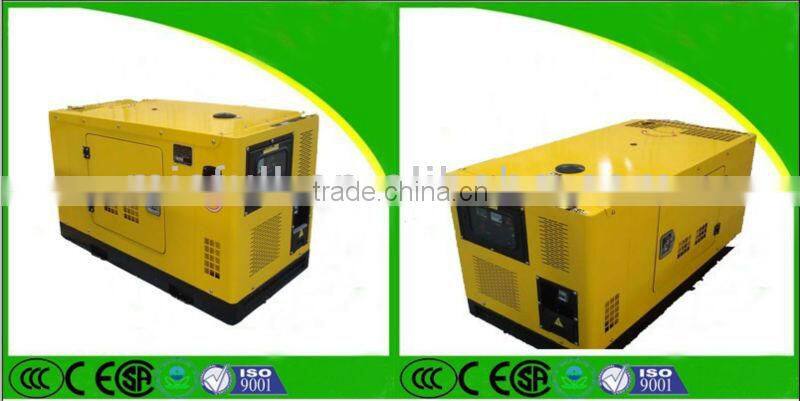

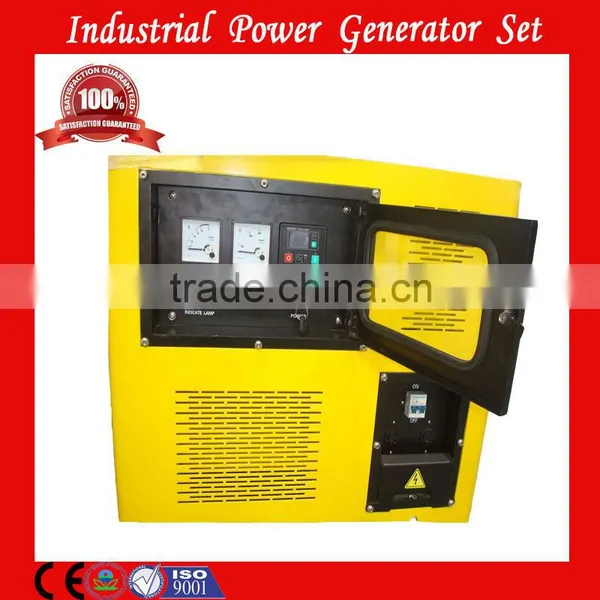

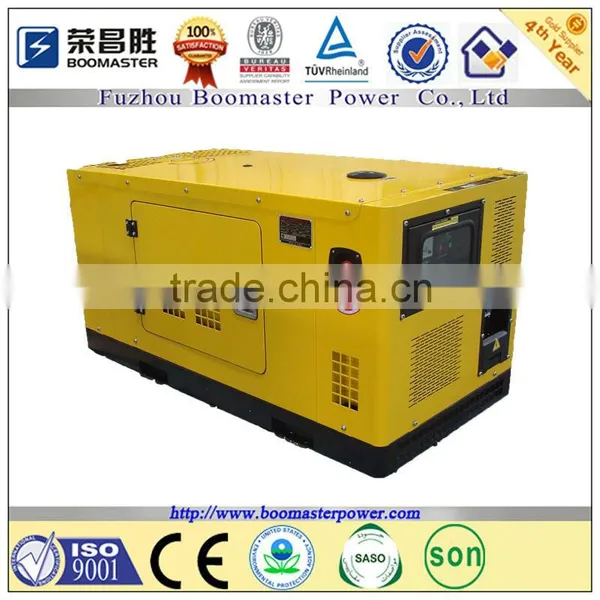

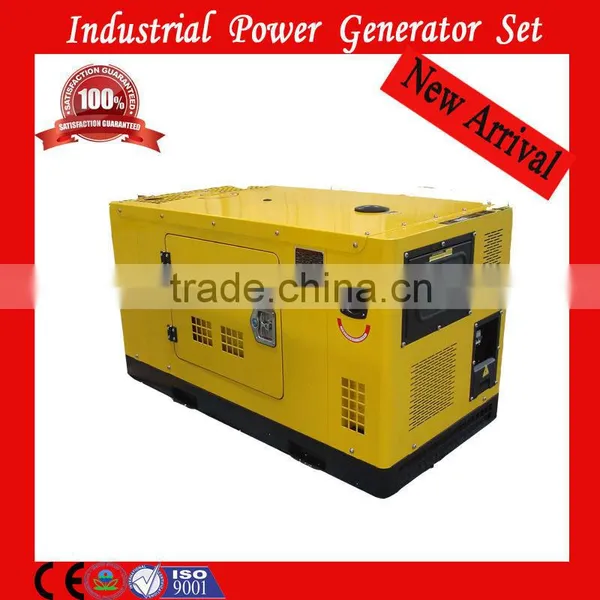

Silent 10kw diesel generator
1.CE ISO EPA SONCAP
2.Delivery:25-30days
3.Power:10kw,silent diesel generator
4.Guaranty:1 year

10kw diesel generator set,silent diesel generator 10kw

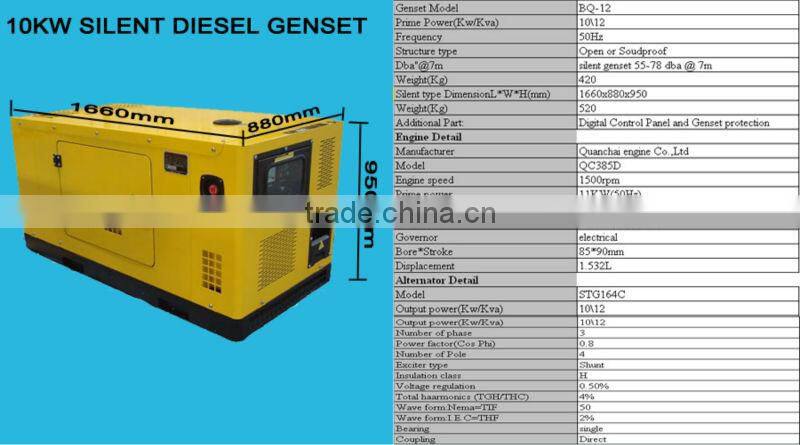

Genset Model	BQ-12
Prime Power(Kw/Kva)	1012
Frequency	50Hz
Structure type	Open or Soudproof
Dba"@7m	silent genset 55-78 dba @ 7m , open type75-98 dba @7m
Engine Model	QC385D
Alternator Model	STG164C
Open type DimensionL*W*H(mm)	1600x700x900
Weight(Kg)	420
Silent type DimensionL*W*H(mm)	1660x880x950
Weight(Kg)	520

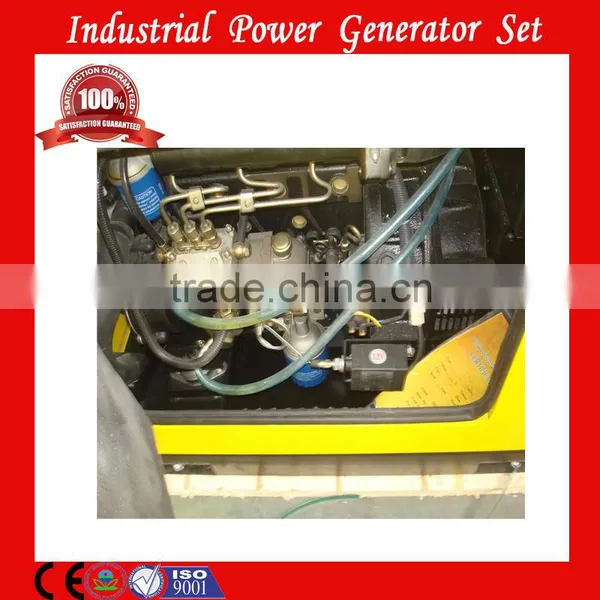

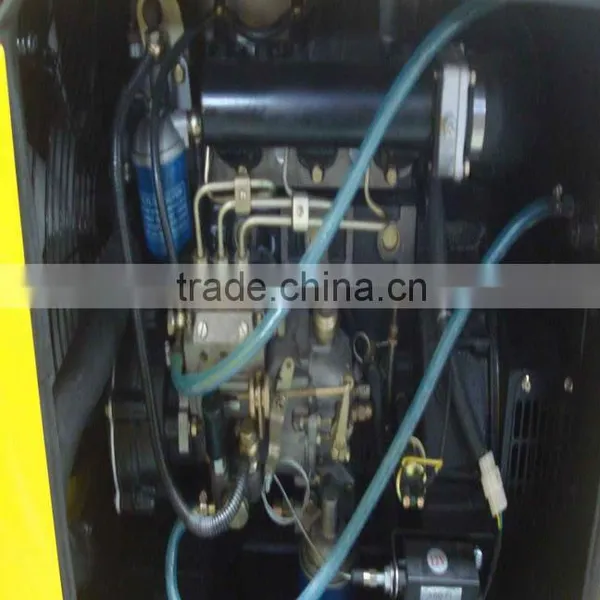

Engine Detail
Manufacturer	Quanchai engine Co.,Ltd
Model	QC385D
Engine speed	1500rpm
Prime power	11KW(50Hz)
Type	vertical,4cylinder,in-line,water-cooled,four-stroke
Aspiration	Naturally aspirated
Governor	electrical
Bore*Stroke	85*90mm
Displacement	1.532L
Alternator Detail
Model	STG164C
Output power(Kw/Kva)	1012
Number of phase	3
Power factor(Cos Phi)	0.8
Number of Pole	4
Exciter type	Shunt
Insulation class	H
Voltage regulation	0.50%
Total haarmonics (TGH/THC)	4%
Wave form:Nema=TIF	50
Wave form:I.E.C=THF	2%
Bearing	single
Coupling	Direct









Guarantee for one year or 1000 hours (whichever comes first) from ex-factory date. During the guarantee period, our Boomaster will provide the free easy-damaged spare parts for problems caused by our quality of production or raw materials, except the damage caused by customer's incorrect manmade operation. After expiration, our company will provides cost spare parts maintenance for genset.





If there is any items meets your market,do not hestitate to contact us.we will reply asap!!

Looking forward to your inquiry!!
