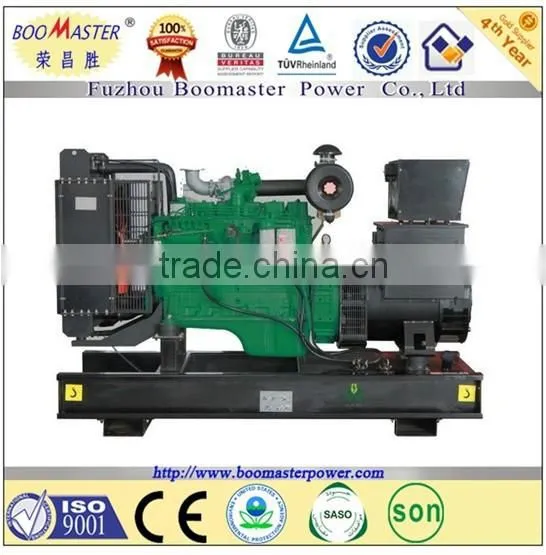

Super Power Chinese Engine Diesel Generator 60Hz/20 kw

Super Power Chinese Engine Diesel Generator 60Hz/20 kw thumbnail-1
Super Power Chinese Engine Diesel Generator 60Hz/20 kw photo-1
US$ 4,465 - 19,065 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Cummins power by
Model Number:
BC-25
Contact Supplier Request Quote Chat Now
Elephant Tech Fuzhou Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name Cummins power by
Model Number BC-25
Output Type AC Three Phase
Speed 1,500rpm
Frequency 50Hz/60Hz
Rated Power 20KW
Rated Voltage 220V/380 230V/400V

Super power Cummins engine diesel generator 60Hz/20 kw





Product Overview





1) Brand-Chinese engine



2) Brushless alternator,single bearing,flange connection,IP23,H insulation class,with AVR.



3) Auto control panel with LCD display.



4) Engine mounted battery-charging alternator,Genset with battery charge of main supply.



5) Circuit Breaker,Exhaust Silencer.



6) Copper Radiator for 40°C ambient temperature and double-deck cooling,with fan guard and front guard.



7) Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable.



8) Skid-mounted bottom 8 hours fuel tank.



9) Extemal recessed emergency stop button for extra safety.



10)Optional:Soundproof,ATS(automatic transfer switch),AMF panel,Trailer,Parallel system.





Genset Model

BC-25

Prime Power(Kw/Kva)

20/25

Frequency

50Hz

Structure type

Open or Soudproof

Engine Model

4B3.9-G1

Alternator Model

STG184F

Open type DimensionL*W*H(mm)

1460*680*800

Weight(Kg)

650

Silent type DimensionL*W*H(mm)

1660*680*1000

Weight(Kg)

750





Engine Detail



Manufacturer

Dongfeng cummins engine Co.,Ltd

Model

4B3.9-G1

Engine speed

1500rpm

Engine Characters

water-cooled,4cylinders in line,4-cycle,direct injection

The maximum output(kw)

30KW

Aspiration

Naturally aspirated

Bore(mm)xStroke(mm)

114*135

Compression ration

16.5:1

Fuel consumption(L/H)

6.5(100%loading)

Displacement(Liters)

3.9

Exhaust air flow(m3/min)

135.6

Compress air flow(m3/min)

4.13

Exhaust gas flow(m3/min)

9.96

Lube-oil pan capacity(L)

11

Cooling water capacity(L)

8Liters(Engine only)

Voltage for start(V)

24

Instrument for adjusting speed

Mechanical





Alternator Detail



Model

STG184F

Output power(Kw/Kva)

22/25

Number of phase

3

Power factor(Cos Phi)

0.8

Number of Pole

4

Exciter type

Shunt

Insulation class

H

Voltage regulation

0.50%

Total haarmonics (TGH/THC)

4%

Wave form:Nema=TIF

50

Wave form:I.E.C=THF

2%

Bearing

single

Coupling

Direct













Generator soundproof/Silent and canopy box:



Ø         8 hours’ base fuel tank



Ø         Excellent ventilation



Ø         Black finish stainless steel locks and hinges



Ø         Zinc plated or stainless steel fasteners



Ø         Body made from steel components treated with polyester powder coating



Ø         Two large doors on either side



Ø         Radiator fill access plate



Ø         Fully guarded cooling fan and battery charging alternator



Ø         Fuel fill and battery access via lockable access doors



Ø         Emergency stop button on canopy exterior



Ø         Lube oil drain and radiator drain to exterior



Ø         Control panel viewing window



Ø         Lifting points on base frame



Ø         1m<80DBA / 7m<70DBA







Generator optional:



Engine

Heater

Battery Charger



Fuel System

Daily Fuel Tank

Base Fuel Tank



Control System

Auto Control Panel

Remote Control Panel

Auto Transfer Switch (ATS) Control Panel

Alternator

Single phase, three phase

Brushless, carbon brush



Type

Weatherproof Type

Soundproof Type

Trailer type

Spare Parts

Fuel filer, Oil filter, air filter, tank pad, Triangle Belt, tools and Engine Parts Drawing List







Generator set warranty and maintenance:



Ø         Do the full power load test for five hours before package.



Ø         One year or 1000 working hours, whichever comes first, global warranty for Cummins. Deutz, UK P, Volvo, Daewoo.



Ø         After expiration, we provide spare parts maintenance with low price





















Chinese Diesel Generator

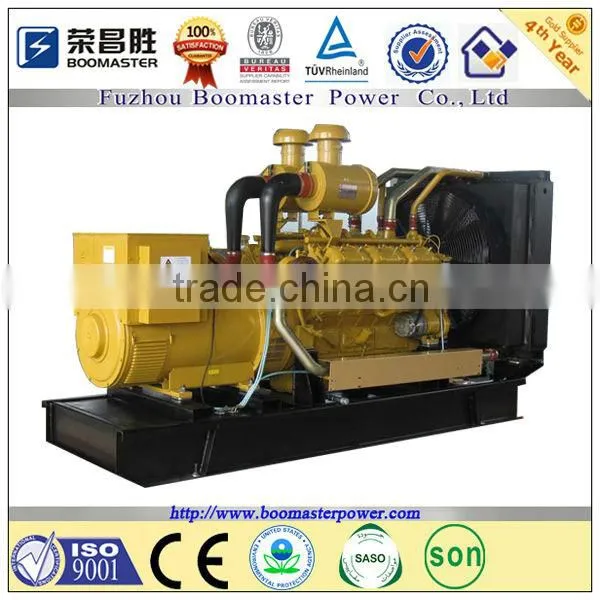

Super power chinese engine diesel generator 60Hz/20 kw
