Brand New Chinese Engine Diesel Genset
50Kva Brand New Chinese Diesel Genset(25 to250kva)
Technical Data
230/400 50/60HZ Power factor:0.8 three phase 4 wires
Product Overview
1) Brand-Quanchai
2) Brushless alternator,single bearing,flange connection,IP23,H insulation class,with AVR.
3) Auto control panel with LCD display.
4) Engine mounted battery-charging alternator,Genset with battery charge of main supply.
5) Circuit Breaker,Exhaust Silencer.
6) Copper Radiator for 40°C ambient temperature and double-deck cooling,with fan guard and front guard.
7) Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable.
8) Skid-mounted bottom 8 hours fuel tank.
9) Extemal recessed emergency stop button for extra safety.
10)Optional:Soundproof,ATS(automatic transfer switch),AMF panel,Trailer,Parallel system.
| Genset Model | BC-50 |
| Prime Power(Kw/Kva) | 40/50 |
| Frequency | 50Hz |
| Structure type | Open or Soudproof |
| Dba"@7m | silent genset 55-78 dba @ 7m , open type75-88 dba @7m |
| Engine Model | 4BTA3.9-G2 |
| Alternator Model | STG224D |
| Open type DimensionL*W*H(mm) | 1460*680*800 |
| Weight(Kg) | 750 |
| Silent type DimensionL*W*H(mm) | 1660*680*1000 |
| Weight(Kg) | 850 |
| Engine Detail | |
| Manufacturer | dongfeng cummins engine Co.,Ltd |
| Model | 4BTA3.9-G2 |
| Engine speed | 1500rpm |
| Engine Characters | water-cooled,4cylinders in line,4-cycle,direct injection |
| The maximum output(kw) | 50KW |
| Aspiration | Turbocharged |
| Bore(mm)xStroke(mm) | 102*120 |
| Compression ration | 16.5:1 |
| Fuel consumption(L/H) | 9.5(100%loading) |
| Displacement(Liters) | 3.9 |
| Exhaust air flow(m3/min) | 135.6 |
| Compress air flow(m3/min) | 4.13 |
| Exhaust gas flow(m3/min) | 9.96 |
| Exhaust highest temperature | 475°C |
| Lube-oil pan capacity(L) | 11 |
| Cooling water capacity(L) | 8Liters(Engine only) |
| Voltage for start(V) | 24 |
| Instrument for adjusting speed | Electronically |
| Noise level(A)@7m | <86dBA(open type) ,<70dBA(silent type) |
| Alternator Detail | |
| Model | STG224D |
| Output power(Kw/Kva) | 40/50 |
| Number of phase | 3 |
| Power factor(Cos Phi) | 0.8 |
| Number of Pole | 4 |
| Exciter type | Shunt |
| Insulation class | H |
| Voltage regulation | 0.50% |
| Total haarmonics (TGH/THC) | 4% |
| Wave form:Nema=TIF | 50 |
| Wave form:I.E.C=THF | 2% |
| Bearing | single |
| Coupling | Direct |

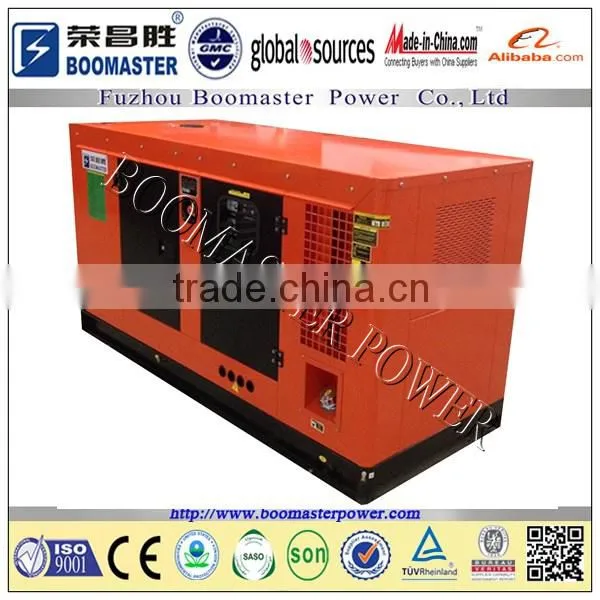

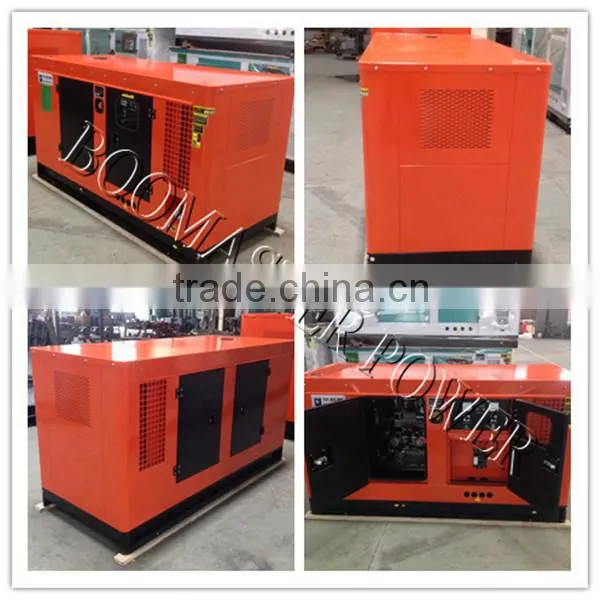

Generator soundproof/Silent and canopy box:
Ø 8 hours’ base fuel tank
Ø Excellent ventilation
Ø Black finish stainless steel locks and hinges
Ø Zinc plated or stainless steel fasteners
Ø Body made from steel components treated with polyester powder coating
Ø Two large doors on either side
Ø Radiator fill access plate
Ø Fully guarded cooling fan and battery charging alternator
Ø Fuel fill and battery access via lockable access doors
Ø Emergency stop button on canopy exterior
Ø Lube oil drain and radiator drain to exterior
Ø Control panel viewing window
Ø Lifting points on base frame
Ø 1m<80DBA / 7m<70DBA
Generator set warranty and maintenance:
Ø Do the full power load test for five hours before package.
Ø One year or 1000 working hours, whichever comes first, global warranty for Cummins. Deutz, UK P, Volvo, Daewoo.
Ø After expiration, we provide spare parts maintenance with low price

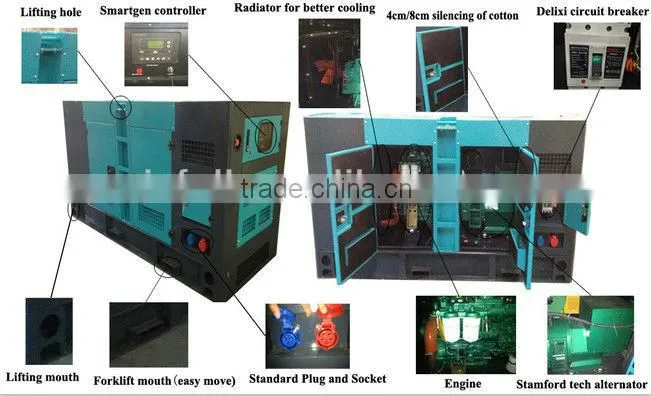

Generator Detailed Drawing
