10-20 KVA CAPACITY. SOUND PROOF DIESEL GENERATOR SET
Generator Supply Scope:
Ø .Standrad tool kits and complete operation/maintenance/spare parts manuals to Engine/Alternator
Ø .brand-new engine, w/ start motor.
Ø .brand new brushless alternator, single bearing, flange connection, IP23, H insulation class, with AVR.
Ø .auto control panel, with LCD display.
Ø .Engine mounted battery-charging alternator, Genset with battery charger of mains supply.
Ø .Circuit Breaker,Exhaust Silencer
Ø .Copper Radiator for 50°C ambient temperature and bouble-deck cooling,with fan guard and front guard
Ø .Antivibration pads are fixed between engine/alternator and base frame,as to ensure the compete genset running under stablilization.
Ø .Skid-mounted bottom Fuel tank - 8hrs continous running(bigger fuel tank by your demand under extra cost)
Ø .External recessed emergency stop button for extra safety
Ø .The colors & Brands by your requests
Ø .Optional Choice:Soundproof, ATS (automatic transfer switch), AMF panel, Trailer, Parallel system by your extra choose.
Detail information
|
Model |
50Hz,400/230,COS=0.8, |
Parameters of LOVOL diesel engine 1500rpm |
L/hr Fuel consumption (full load) |
Dimention & weight |
|||||||
| Genset output | mm | kg | |||||||||
| Prime KW / KVA |
Standby KW / KVA |
Engine model |
Engine rated power KVA / KW |
Cylinder No./Type |
L×W×H | Weight | |||||
| Power by Quanchai engine | |||||||||||
| BQ-10 | 8 | 10 | 9 | 11.25 | QC380D | 10 | 12.5 | 3,in line | 2.5 | 1630X790X1150 | 350 |
| BQ-12 | 9 | 11.3 | 10 | 12.5 | QC385D | 11 | 13.75 | 3,in line | 2.7 | 1630X790X1150 | 350 |
| BQ-13 | 10 | 12.5 | 11 | 13.75 | QC480D | 14 | 17.5 | 4,in line | 3.1 | 1630X800X1150 | 370 |
| BQ-15 | 12 | 15 | 14 | 17.5 | QC485D | 17 | 21.25 | 4,in line | 4 | 1630X800X1150 | 370 |
| BQ-23 | 18 | 22.5 | 20 | 25 | QC490D | 22 | 27.5 | 4,in line | 5 | 1650X800X1150 | 450 |
| BQ-28 | 20 | 25 | 22 | 27.5 | QC498D | 25 | 31.25 | 4,in line | 1700X810X1250 | 460 | |
| BQ-30 | 24 | 30 | 27 | 33.75 | QC4102D | 33 | 41.25 | 4,in line | 7.2 | 1700X810X1250 | 320 |
| BQ-38 | 30 | 37.5 | 33 | 41.25 | QC4105D | 38 | 47.5 | 4,in line | 9 | 1700X810X1250 | 330 |
Generator set warranty and maintenance:
Ø Do the full power load test for five hours before package.
Ø One year or 1000 working hours, whichever comes first, global warranty for Cummins. Deutz, UK P, Volvo, Daewoo.
Ø After expiration, we provide spare parts maintenance with low price.
Other pictures:

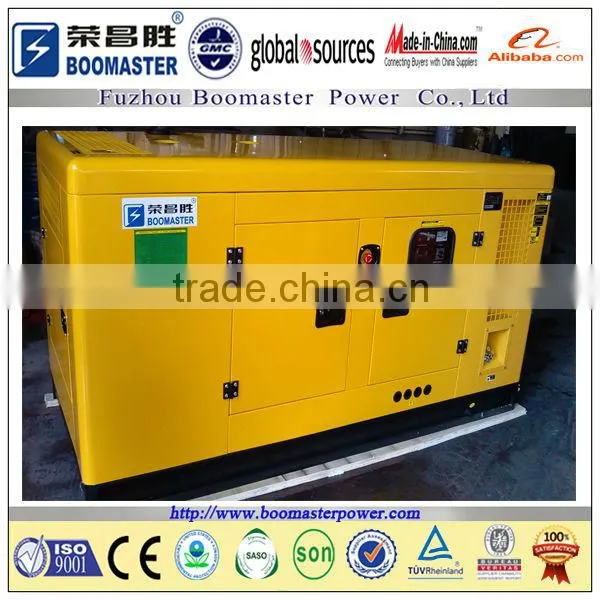

Silent diesel generator
Our factory
Certification
