Home > Instruments & Meters > Meter for Electricity > Current Meter > SALZER Brand SA-W96(C) Analog Power Meters

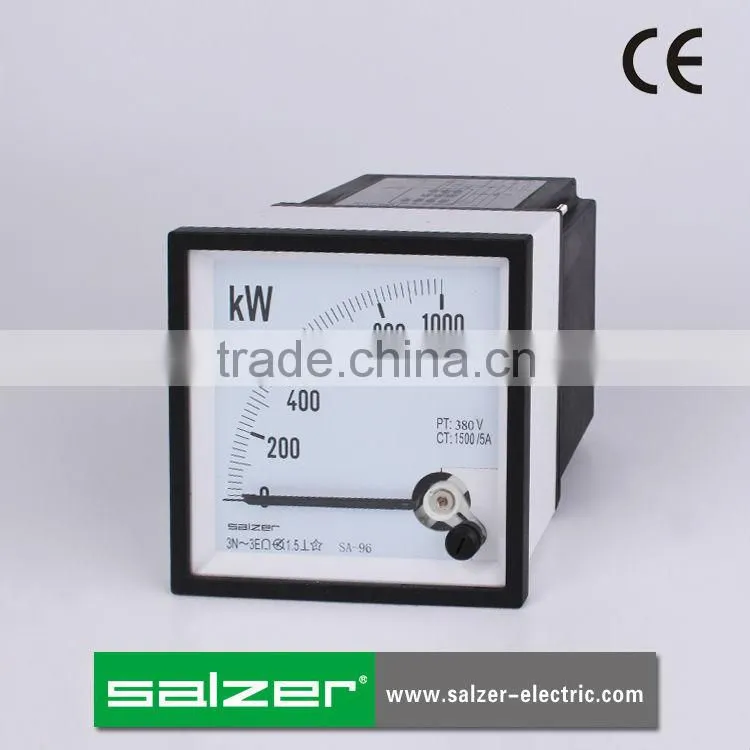

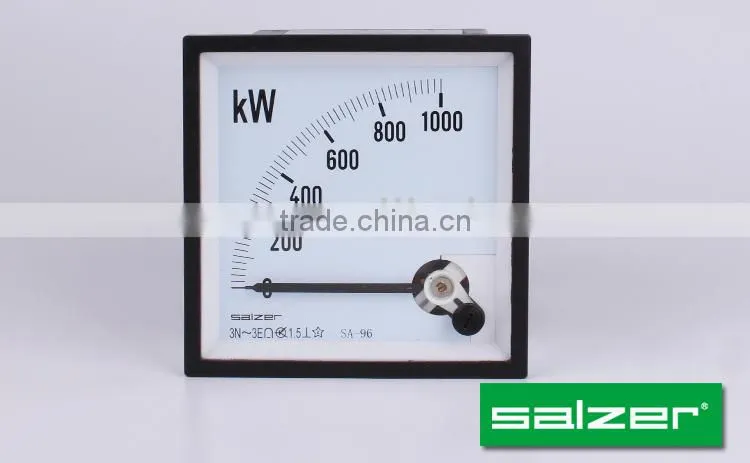

SALZER Brand SA-W96(C) Analog Power Meters

Name: SALZER Brand SA-W96(C) Analog Power Meters
Brand: SALZER
SKU: 103706143

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

SALZER

Model Number:

SA-W96(C)

Contact Supplier Request Quote Chat Now

Yueqing Leyi Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Shanghai Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name SALZER

Model Number SA-W96(C)

Display Type Analog Only

Measuring Range 1A or 5A

Accuracy Class Class 1.5

Supply Voltage 100V-415V

Operating Temperature 0-40deg.

Dimensions 96x96mm

Specifications

SALZER Brand SA-W96(C) Analog Power Meters
1.Accuracy: Class 1.5
2.Current:1A or 5A

SALZER Brand SA-W96(C) Analog Power Meters

An analog panel meter is a type of panel meter which drives the needle to move based on the electromechanical principle and the position where the pointer stops shows the measured value. Generally, the analog panel meter includes analog ammeter, analog voltmeter, analog frequency meter, analog power factor meter and analog power meter.

Power Meter (90 DEG,240 DEG)

Feature	With cover on movement (F),without cover on movement (C)
Model	90 DEG: SA-W(Var)96, SA-W(Var)72, SA-W(Var)48. 240 DEG: SA-W(Var)96, SA-W(Var)72, SA-W(Var)48
Accuracy	Class 1.5
Voltage	(Single phase): 100V, 220V, 380V. (Three phase three wire): 100V, 220V, 380V, 415V. (Three phase four wire): 100V, 220(380)V, 240(415)V. Above-mentioned can be connected directly. The following should be connected with voltage
Transformers	380/100V, 500/100V, 3K/100V, 6K/100V, 10K/100V, 15K/100V, 15K/100V, 35K/100V...
Current	1 Aor 5A The voltage circuits of the meter connected with voltage transformers. Which secondary voltage is 100V, if the secondary voltage is lower than 450V, it also can be connected directly. The current circuits connected with current transformers, which secondary current is 5A or 1A Wattmeters and Varmeters with converter for three-phase three wires or four wire and single phase, which can be used for balance and unbalance burden circuit.
Heat Resistance	Case of non-combustible plastic material.
Fastening	By means of must, absolutely safe, fast, robust, side-by-side
Mounting Depth	SA-W(Var)96: Max 43mm, SA-W(Var)72: Max 113mm.

As a China-based analog frequency meter manufacturer and supplier, Salzer offers a vast range of products that includes analog ammeter, analog power factor meter, cam switch, flush push button switch, high temperature wire, changeover switch, and many others.

We at Salzer back up our products with a 12 or 13-month warranty, during which substandard products are replaced free of charge. In addition, we can offer customize products according to customers' sample, drawings or other requirements. Free product samples (less than USD30) and wearing parts are also available, upon request. As a result, customers can feel secure in purchasing our axial fan, fan filter, cam switch, isolator switch, push button switch and LED indicator.

Mini order amount USD5,000
