Specifications
1) SA-Z96A Moving Iron AC Ammeter2) Accuracy: Class 1.5
3) Mounting Depth:Max 43mm

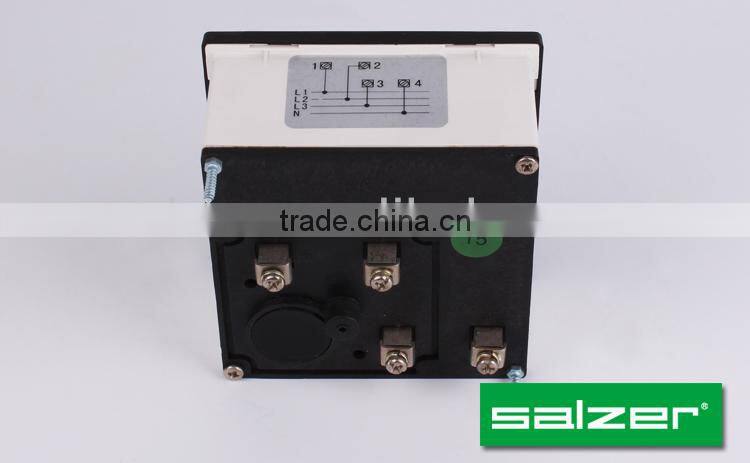

SALZER Brand SA-Z96A Moving Iron AC Ammeter
The instrument are suitable for measuring AC Ampere In 4 or 3 wire networks by using a change over switch on the front side of the instrument.
| Feature | with cover on movement (F), without cover on movement (C) |
| Model | SA-Z96A, SA-Z72A |
| Technical data | |
| Movement | Moving-iron movement with oil filled bearings, practically vibration-free oil damping |
| Accuracy | Class 1.5 |
| Frequency range | 50HZ |
Measuring range | 0.1 A/1 A, 0.2A/2A, 0.3A/3A. 0.4A/4A, 0.5A/5A, 1A/10A5/5A. |
3 phase 3 wire 2 Position | L1, L2. |
3 phase 4 wire 3 Position |
L1, L2, L3 |
| 3 phase 4 wire 4 Position | L1, L2, L3, OFF |
| Heat Resistance | Case of non-combustible plastic material. Fastening by means of nuts, absolutely safe, fast, robust, side by side. |
| Mounting Depth | Max 43mm. |
We at Salzer back up our products with a 12 or 13-month warranty, during which substandard products are replaced free of charge. In addition, we can offer customize products according to customers' sample, drawings or other requirements. Free product samples (less than USD30) and wearing parts are also available, upon request. As a result, customers can feel secure in purchasing our axial fan, fan filter, cam switch, isolator switch, push button switch and LED indicator.
Mini order amount USD5,000
About us
Aug., 2002 YUEQING LEYI ELECTRIC CO., LTD. WAS FOUNDED.
Dec., 2002 Singed agent with our Thailand customer.
Jul., 2003 Got the UL certificate for our cam switch SA16.
Nov., 2003 Our expertise in the field has earned us membership in the China Chamber of.
Commerce for Import and Export of Machinery and Electronic Products (CCCME).
May, 2004 Cooperated with ALIBABA, becoming one of the first Chinese gold suppliers.
Oct., 2005 Singed agent with our Mexico customer.
Jan., 2006 Singed agent with our Indonesia customer.
Apr., 2006 Successfully registered our SALZER brand in China.
Jan., 2007 Got the UL certificate for our wire THHN/THWN.
Dec., 2007 Singed agent with our Turkey customer.
Sep., 2008 Got the UL certificate for our axial fan PD120B/S.
Jun., 2010 Singed agent with our Russia customer.
Aug., 2010 Singed agent with our Poland customer.
Oct., 2013 Got TUV, CE and CB certificates for our cam switch SA16, SA25 and SA32.
Jan., 2014 Singed agent with our Philippines customer.
Mar. 2014 Got TUV, CE and CB certificates for our cam switch SA40, SA63 and SA80.
May, 2014 Got TUV, CE and CB certificates for our pushbutton SA22 series and LED lamp PL16-22.
May, 2014 Got TUV, CE certificates for our axial fan PD Series.
More detail informations, please feel free to contact us!
