wood stove waste wood fired steam boiler without pollution

FOB Price

USD $10,000 - $100,000 / Set

1 Set(Min.Order)

Supply Ability 600 Set / Sets per Month
Port Qingdao Port
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Natural Circulation	Usage:	Other, Industrial, Industrial Fire wood boilers
Structure:	Fire Tube	Pressure:	Low Pressure	Style:	Horizontal
Fuel:	Other, coal	Place of Origin:	Shandong, China	Brand Name:	EPCB
Model Number:	DZG	Output:	Steam	Dimension(LWH):	different coal boiler different size
Weight:	depend on boiler capacity	Certification:	GB,ISO9001,ASME,CE,AS,GOST	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

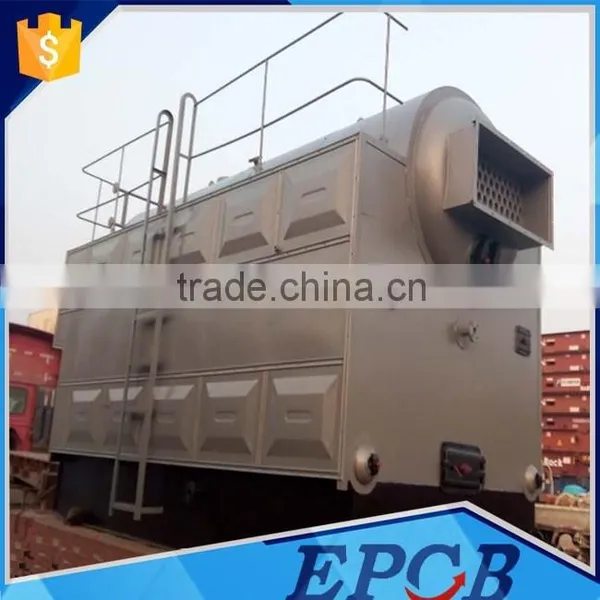

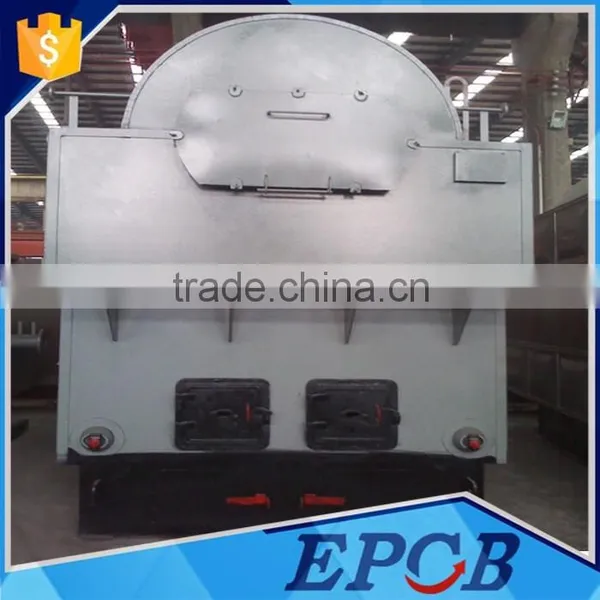

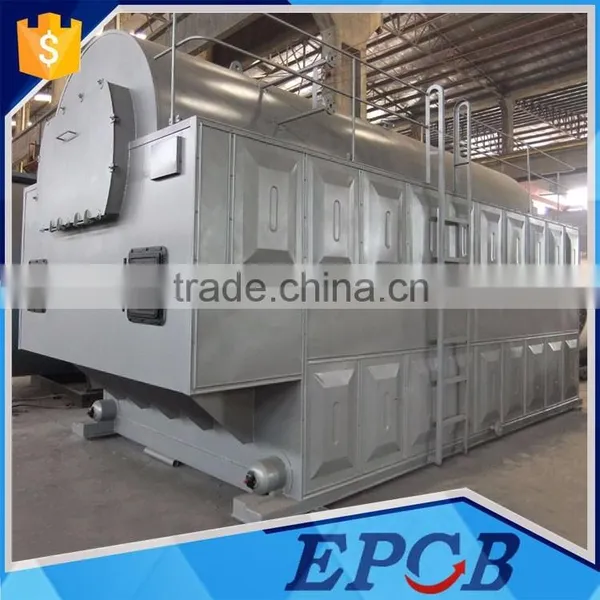

DZG series horizontal structure one drum water fire tube coal & biomass fuel manual fixed grate boiler are energy-saving, eco-friendly and prominent advantages comparing with other boiler structures.

* clean coke is a solid fuel, low sulfur dioxide emissions after combustion, in line with national environmental requirements.
* use of mechanical ventilation, complete combustion, Powerful, high thermal efficiency.
* cast carbon longer interval, low labor intensity, simple, safe and reliable.
* capacity than the same fuel (gas) boiler-time low investment, low operation cost, is an economical and environmentally friendly boiler type.
* application of fuel: coke, anthracite block, the installation of desulfurization equipment for coal for the same.
* boiler capacity of 1-4T / H (0.7-2.8MW).

DZG series Fixed Grate Environmental Protection Steam Boiler

ItemType		DZG0.5-0.7/1.0-J	DZG1-0.7/1.0/1.25-J	DZG2-0.7/1.0/1.25-J	DZG0.35-0.7/95/70-J	DZG0.7-0.7/95/70-J	DZG1.4-0.7/95/70-J
Rated capacity t/h		0.5	1.0	2.0	0.35	0.7	1.4
Rated steam pressure Mpa		0.7/1.0	0.7/1.0/1.25	0.7/1.0/1.25	0.7	0.7	0.7
Rated steam temperature C		170/184	170/184	170/184/194	95	95	95
Feed water temperature C		20	20	20	70	70	70
Heated area M²	radiation/revection	2.3/16.2	4.68/16.1	5.8/30.7	2.3/16.2	4.55/20.12	6.17/39.5
Suitable fuel type		soft coal , biomass, cokes, blind coal, ect.
Boiler heat efficiency %		76	78	78	76	78	78.0
Fuel consumption kg/h		76	146	290	76	146	290
Effective area of grate		0.98	1.5	2.4	0.98	1.5	2.4
Transportation size of boiler mm	length	2970	3782	4307	2970	3782	4900
	width	1950	1920	2130	1950	1800	2130
	heigth	2660	2820	3222	2660	2870	3222
Weight of larggest parts of boiler transportation (ton)		8.3/8.4	11/11/11.6	15.7/15.8/16	8.3	11	15.5

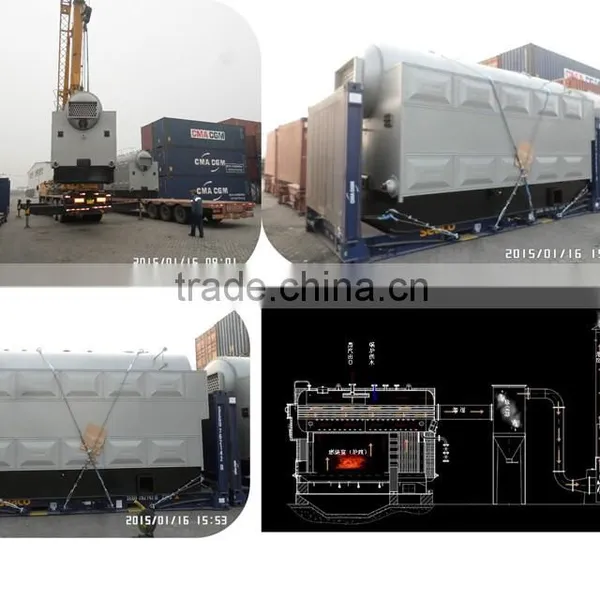

Packaging & Shipping

Our Services

Our Services:

1. 100%safety, running stably, excellent water level and pressure control, fully automatic operation.
2. Boiler running life > 20years.
3. Good after-sale service. It is free for you to get the damaged spares in warranty period (1 year) if there is any questions. Assure that we can supply you spares in boiler’s all life.
4. We can arrange engineer to your company for installation and commissioning and training. If you need us at any time, we can send our technicians and prepare in a short time.
5. Special paint is used after assembly. Paint is particularly used in your climate area, which is anti-corrosion, anti-abrasion and color-fastness.

Why do you choice our boiler?

1. Lower dust emission & SO₂ emission & NOx emission, dust emission concentration < 30mg/m³
SO₂ & NO_x emission concentration < 18mg/m³
2. We supply 2 units Water Pump (one duty one standby) which from the famous pump manufacturer.
3. Boiler can achieve automatic temperature control & pressure control & feed water control & feed fuel control & safety indication.We also freely supply you a set of inner parts of Electric controller for standby.
4. Boiler with stainless cladding, anti-corrosion & anti-rust & beautiful appearance.
5. Comprehensive after-sales service. We can design layout drawings of boiler system according to your actual requirement.Also can dispatch engineer to guide installation & commissioning.

Contact Us

Qingdao East Power Industry Equipment Co., Ltd.: Contact nameFrank zhang; Phone86-532-66717007; AddressHi-technology Park, Qingdao, China Qingdao,Shandong
