Made in China Products Fire Tube Boiler Price Induction Heating Boiler
Made in china products fire tube boiler price induction heating boiler
1. Features of industrial food boiler:
| 1).This thread boiler smoke pipe, arch tube sheet, wing flue structure, is the first victory in national development and National patent in 1991, after nearly two decades of continuous improvement and perfection of its structure is more reasonable, environmentally friendly energy.Effects become more prominent. |
| 2).For the application of different fuels, chain grate and reciprocating grate is divided into two series. With energy, strong radiation arch, can be applied to all types of bituminous coal combustion. |
| 3). With high standards, high-quality auxiliary equipment, accessories, automated control to ensure the boiler is safe, stable. |
| 4).Compact ,1-10T / H fast assembly ,15-35T / H large assembly, single-layer arrangement, one-time investment province. |
|

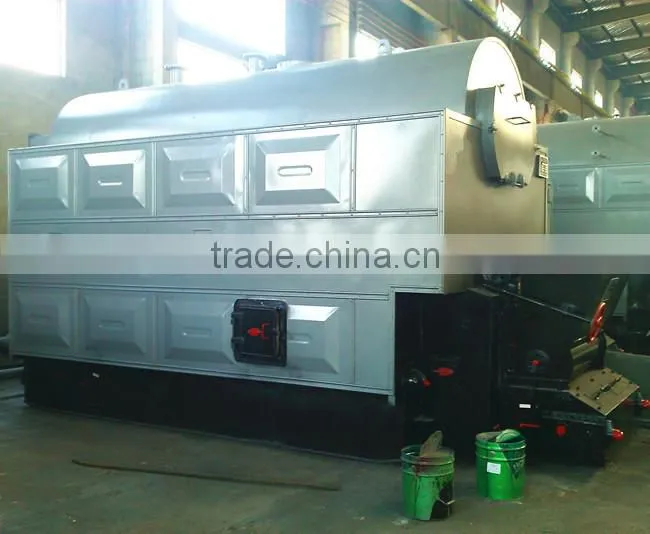

5).Boiler capacity of 1-35T / H (0.7-29MW). Horizontal Steam coal boiler |
Parameters:
| DZL Series coal-fired steam boiler technique parameter | |||||||||
| Item/Type | DZL1-0.7-AII DZL1-1.0-AII DZL1-1.25-AII | DZL2-0.7-AII DZL2-1.0-AII DZL2-1.25-AII | DZL3-0.7-AII DZL3-1.25-AII | DZL4-1.25-AII | DZL6-1.25-AII | DZL10-1.25-AII | DZL20--1.25-AII | DZL30-1.25-AII DZL30-1.6-AII | |
| Rated capacity t/h | 1 | 2 | 3 | 4 | 6 | 10 | 20 | 30 | |
| Rated steam pressure Mpa | 0.7/1.0/1.25 | 0.7/1.0/1.25 | 0.7/1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25/1.6 | |
| Rated Steam Temperature degree | 170/184/194 | 170/184/194 | 170/194 | 194 | 194 | 194 | 194 | 194/204 | |
| Feed water temperature degree | 20 | 20 | 20 | 20 | 20 | 105 | 105 | 105 | |
| Boiler Thermal efficiency % | 79 | 79.07 | 82 | 80 | 81 | 80.6 | 81 | 81.76 | |
| Fuel Consumption kg/h | 167 | 330 | 49.8 | 662 | 998 | 1655 | 3290 | 4230 | |
| Effictive area of grate degree | 1.8 | 3.04 | 3.34 | 5.14 | 9.36 | 12 | 22.56 | 26.88 | |
| Max. transport size | L (mm) | 4876 | 5290 | 5360 | 6237 | 6300 | 7600 | 7810 | 9000 |
| W (mm) | 1800 | 2240 | 2240 | 2660 | 3150 | 3200 | 3370 | 2600 | |
| H (mm) | 2820 | 3208 | 3208 | 3520 | 3938 | 3660 | 3500 | 2850 | |
| Weight of largest parts of boiler transporting (T) | 13.3/13.5/13.7 | 18.5/18.8/18.8 | 20.8/21 | 27 | 35 | 44 | 25 | 30 | |
|
1. Quality: A grade boiler, A1, A2 grade pressure vessel manufacturing company. All products have passed ISO9001 & ASME International Quality Management System Certification, also can provide CE, AS, GOST certification. |
|
2. Management: In order to ensure the quality, we strictly monitor the comprehensive quality system from raw material procurement & re-testing & process to storage. All the steels and pipes are purchased from developed countries & the well-known large domestic enterprises. |
|
3. Welding: Welding mainly uses advanced automatic welding, gas protected welding, TIG welding. Drum and other main pressure parts adopt CNC automatic welding, all of the welding 100% passed penetrant inspection. |
|
4. Market: Our products have been exported to more than 40 countries, such as Australia, USA, Japan, Canada, Russia, Thailand, Mexico, Cyprus, Pakistan, Angola, Mongolia, etc. |
1).One year parts warranty. |
2). Spare parts available at ex-factory price. |
3).Different voltage available. |
4).100% tested before delivery. |
5).WNS steam boiler capacity ranging from 500 -- 30000 Kg/h. |
6).Skid-mounted complete system available 100-- 2000 kg/h. |
7). Complete system fixed in container available 100-- 4000 kg/h. |
8). Engineer on-site instruction of installation and commissioning available. |
Our Main Product scope:
1).WNS series Horizontal oil/gas fired boilers (0.5-30T/H, 0.7-14MW) |
2).SZS serires Horizontal Oil/gas fired boiler (4- 35T/H ) |
3).LHS series Vertical Oil/gas fired boiler (0.1-2 T/H, 0.06-0.7MW ) |
4).DZL new type water fire tube boilers (1-35T/H, 0.7-29MW) |
5). SZL series water tube biomass boilers (4-35T/H, 1.4-29MW) |
6).SHX boiler boiler ( 10--35 T/H) |
| 7).CFB Circulating Fluidized Bed boiler ( 35T--130 T ) |
For more than 25 years, we are expert in producing BOILERS only!!
Please contact Jenny Shi, this is my Skype: epcbsale26, I am waiting for your join ~~
