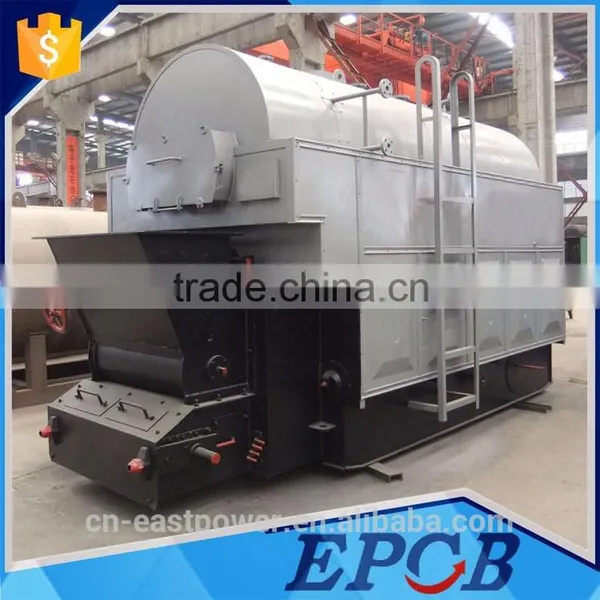

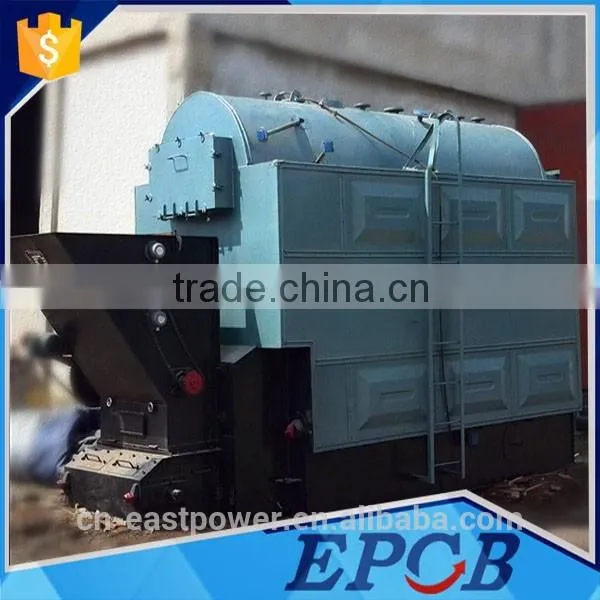

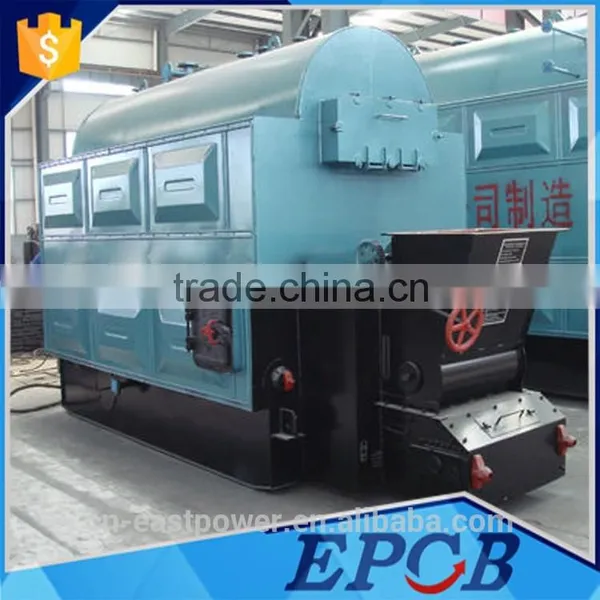

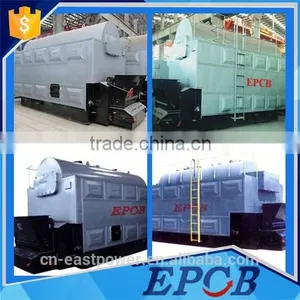

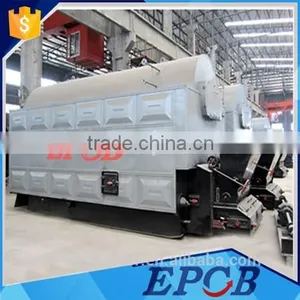

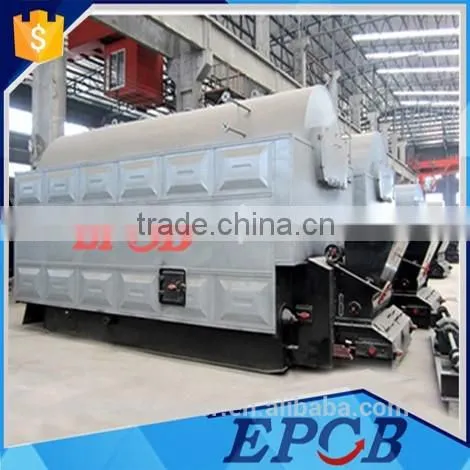

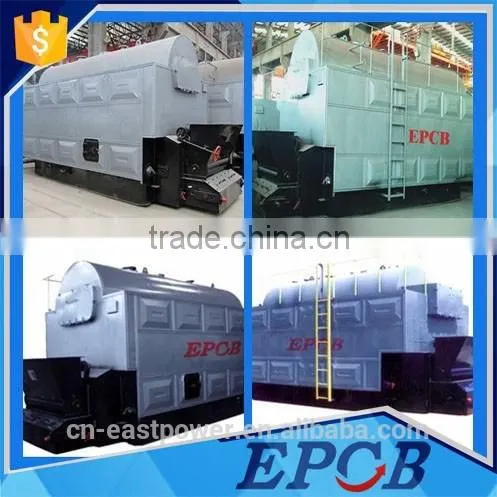

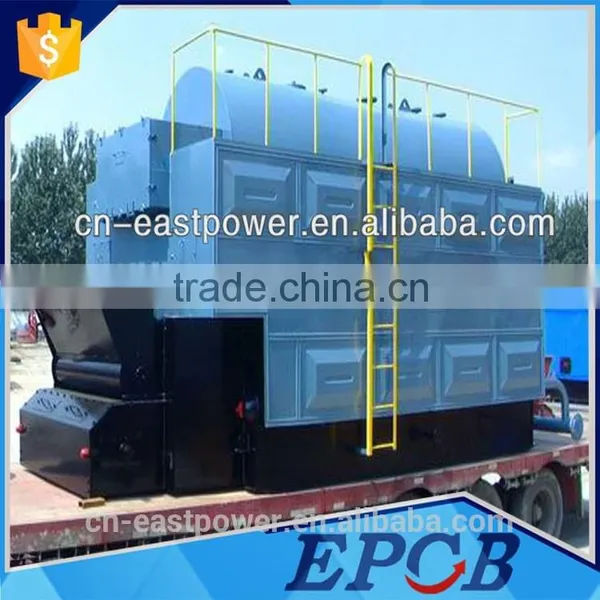

DZL 1000 kg Chain Grate Coal Fired Steam Boiler
1, the usage of high-performance heat transfer components - threaded pipe, with a reasonable gas flow rate, the boiler thermal efficiency is higher 6-8 percentage points than the state high professional standards.
2, arch tube plate, thread to make pot pipe from the quasi-rigid body shell variable based elastomer with the airfoil stack, completely avoid the defects that traditional high-temperature pyrotechnic tube boiler tube plate cracking.
3, reasonable and unique water circulation loop backwater ejector device (hot water boiler), improved the increased water velocity, to avoid the water-wall tube break.
4, the usage of inertial separation of dust furnace, supplemented by high-performance multi-collector, so that the concentration of dust emission boiler to meet the demand for a class.
5, reasonable structure of the boiler does not need a steel frame can support the weight of its own.
6, the usage of energy, strong radiation furnace arch, can guarantee the stability of fuel combustion.
7, the usage of a high standard, high-quality auxiliary equipment, accessories and automatic control equipment, boiler guarantee security, stability operations, while reducing the labor intensity Boiler Operators.
8, the structure is compact, the boiler1-20t / h (0.7-14MW) can be single-layer arrangement
| Model | DZL1-0.7-AII | DZL2-1.25-AII | DZL4-1.25-AII | DZL6-1.25-AII | DZL10-1.25-AII | DZL15-1.25-AII | DZL20-1.25-AII | |
| DZL1-1.0-AII | DZL2-1.6-AII | DZL4-1.6-AII | DZL6-1.6-AII | DZL10-1.6-AII | DZL15-1.6-AII | DZL20-1.6-AII | ||
| DZL2-2.5-AII | DZL4-2.5-AII | DZL6-2.5-AII | ||||||
| Rated evaporation capacity t/h | 1 | 2 | 4 | 6 | 10 | 15 | 20 | |
| Rated working pressure Mpa | 0.7/1.0 | 1.25/1.6/2.5 | 1.25/1.6/2.5 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | |
| Rated steam temp. C | 170/184 | 193/204/226 | 193/204/226 | 193/204 | 193/204 | 193/204 | 193/204 | |
| Water-supply temp. C | 20 | 20 | 20 | 20 | 20 | 20 | 20 | |
| Area of grate m 2 | 3.5/20/10 | 6.5/40/17 | 11/88/17 | 16/118/50 | 17/200/131 | 35/332/200 | 53/415/213 | |
| Effective area of grate m 2 | 2.1 | 3.2 | 5.2 | 7.8 | 11.8 | 17.3 | 21 | |
| Boiler volume m 3 | 3.6 | 6.5 | 9.2 | 12.3 | 16.5 | 20 | 25 | |
| Design efficiency % | >78 | >80 | >80 | >81 | >82 | >82 | >82 | |
| Applicable fuel | Bituminous class II | |||||||
| Kg/h | 167.9 | 330 | 655 | 870 | 1440 | 2240 | 2860 | |
| Maximum size of shipping part m | 5.5×1.8×2.9 | 5.7×2.6×3.4 | 6.8×2.9×3.6 | 7.1×2.8×3.6 | 7.6×3.4×3.6 | 9.4×3.4×3.6 | 9.8×3.5×3.6 | |
| Maximum weight of shipping part m | 13 | 17 | 28 | 22 | 25 | 26 | 27 | |
| Size of installation m | 6.0×3.2×4.2 | 5.7×3.9×4.9 | 6.8×3.6×5.1 | 8.1×5.2×6.3 | 9.8×5.7×6.3 | 10.4×5.2×8.1 | 11×5.6×8.6 | |
| Draught fan | model | Y5-47 | GY2-15 | YX9-35No.8C | GY6-1 | GY10-15 | Y5-47 12D | Y5-47 12.4D |
| (m 3 /h) airflow | 3295-5100 | 5200-8500 | 8868-19342 | 14000-20000 | 26321-32138 | 33318-50356 | 36762-55561 | |
| (Pa) pressure | 2383-2079 | 3668-3020 | 2805-3041 | 3060-3220 | 3714-3802 | 3628-3393 | 387-3619 | |
| (KW) power | 5.5 | 11 | 18.5 | 30 | 55 | 75 | 90 | |
| Blower fan | model | T4-72 3A | GG2-11 | T4-72 4.5A | T4-72 5A | GG10-1 | G4-73 9D | G4-73 9D |
| (m 3 /h) airflow | 1688-3517 | 3189-4130 | 5360-10288 | 7352-10249 | 1000-22500 | 23003-32079 | 23003-44128 | |
| (Pa) pressure | 792-1300 | 1578-1461 | 2582-1616 | 3195-2954 | 2690-1620 | 2668-2559 | 2668-1775 | |
| (KW) power | 1.5 | 3 | 7.5 | 11 | 15 | 30 | 37 | |
| Feed pump | model | JGGC2.0-8×14/18 | JGGC2.4-9×19/22 | DG6-25×7/8 | DG6-25×7/9 | DG12-25×7/8 | DG25-30×6/7 | DG25-30×6/7 |
| DG6-25×11 | DG6-25×12 | DG6-25×12 | ||||||
| (m 3 /h) | 2.4 | 2.4/2.4/3.75 | 3.75-7.5 | 3.75-7.5 | 7.5-15 | 15-30 | 15-30 | |
| m | 119/153 | 152/176/280 | 175/200/300 | 175/225/300 | 175/200 | 180/210 | 180/210 | |
| (KW) power | 3 | 3 | 7.5/11/15 | 7.5/15/15 | 15/15 | 30/30 | 30/30 | |
| Speed govemor | model | GL-5P | GL-5P | GL-5P | GL-10P | GL-16P | GL-20P/II | GL-20P/II |
| (KW) power | 0.55 | 0.55 | 0.55 | 0.75 | 1.1 | 1.5 | 1.5 | |
| Slag machine | model | LXL-1 | LXL-2 | LXL-4 | LXL-6 | LXL-10 | LXL-15 | LXL-20 |
| (KW) power | 0.75 | 1.1 | 1.1 | 1.1 | 1.1 | 1.5 | 1.5 | |
| dust model | XD-1 | XD-2 | XD-4 | XD-6 | XD-10 | XD-15 | XD-20 | |
After-sale services
1. Assist clients to prepare for the first construction, and also can arrange engineer on-site instruction of installation and commissioning
2. Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
Factory assurance
1. One year parts warranty
2. Spare parts available at ex-factory price
3. Different voltage available
4. 100% tested before delivery
5. Skid-mounted complete system available 100-- 2000 kg/h.
6. Complete system fixed in container available 100-- 4000 kg/h.
7. Engineer on-site instruction of installation and commissioning available.
High Quality with Mature Design:
1. Quality:
A grade boiler, A1, A2 grade pressure vessel manufacturing company. All products have passed ISO9001:2008 & ASME International Quality Management System Certification, also can provide CE, AS, GOST certification.
2. Management:
In order to ensure the quality, we strictly monitor the comprehensive quality system from raw material procurement & re-testing & process to storage. All the steels and pipes are purchased from developed countries & the well-known large domestic enterprises.
3. Welding:
Welding mainly uses advanced automatic welding, gas protected welding, TIG welding. Drum and other main pressure parts adopt CNC automatic welding, all of the welding 100% passed penetrant inspection.
4. Market:
Asia: Kazakhstan, Uzbekistan, Kyrgyzstan, Tajikistan, Azerbaijan, Singapore, Hongkong, Philippines, Indonesia, Thailand, myanmar, Laos, United Arab Emirates, Saudi Arabia, Palestine, Afghanistan, Bangladesh, Malaysia, Qatar , Lebanon, Armenia, Yemen, Jordan
America: Colombia, Chile, Suriname,Peru, Bolivia, Ecuador
Africa: Sudan, Cameroon, Algeria, Libya, Benin, Nigeria, Egypt, Ghana, Guinea, Mauritius, Kenya, Ethiopia, Cote d'ivoire, Tunisia
Europe: Serbia, Albania
Company Introduction
Spirit: Supply Reliable & high efficient heating system.
1, More than 600 sets of boilers (5000 t/h) can be produced by us per year. Class A boiler manufacturer. Class A1, A2 pressure vessel manufacturer.
2, Each boiler system parts is from first class brand all over the world or China.
3, Strict quality control system. From the material, welding, to finished boiler shipment. From project establishment, drawing design, to final audit.
4, We are the stable and long term supplier of many Top 500 Groups all over the world. Such as Petro China, Sinopec, Nestle, Mercedes-Benz, Coca cola, etc,.
Our main boiler range
1.WNS series Horizontal oil gas fired boiler (0.5-30T/H, 0.7-14MW)
2.SZS serires Horizontal Oil gas fired boiler (4- 35T/H )
3.LHS series Vertical Oil gas fired boiler (0.1-2 T/H, 0.06-0.7MW )
4.DZL series coal fired boiler and biomass boiler(1-35T/H, 0.7-29MW)
5.SZL series water tube coal fired boiler and biomass boiler (4-35T/H, 1.4-29MW)
6.LDR series electric boiler ( 0.05---10 T/H)
7.YQW series Horizontal oil gas fired thermal oil boiler
8.YLW series coal fired thermal oil boiler
9.CFB Circulating Fluidized Bed boiler ( 35T--130 T )
If any needs ,please feel free to contact me.
