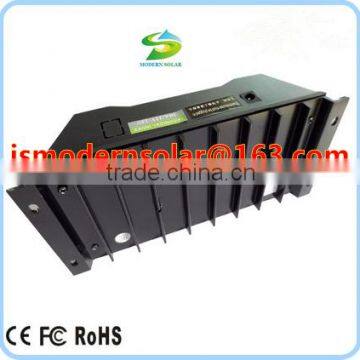

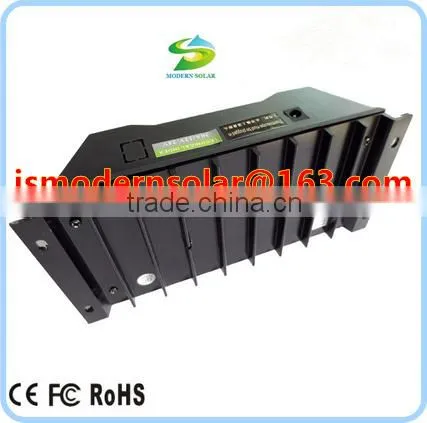

PWM Portable 12v 24v Auto Voltage 30a Solar Controller

 PWM portable 12v 24v auto voltage 30a solar controller

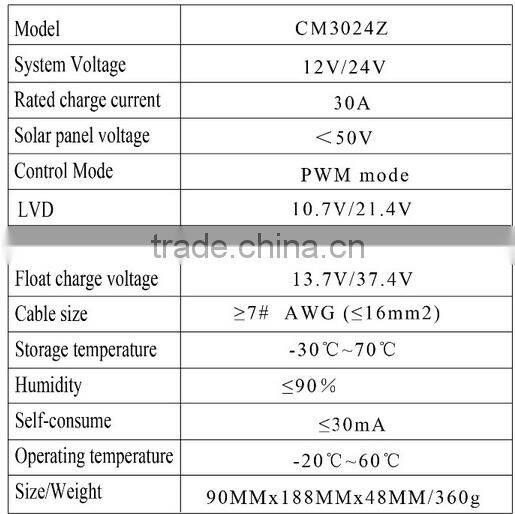

Type: CM30

Rated Current: 30A

Rated voltage:12V/24V auto, 48V

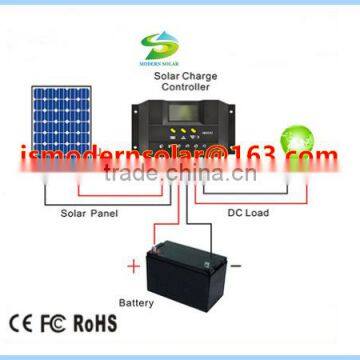

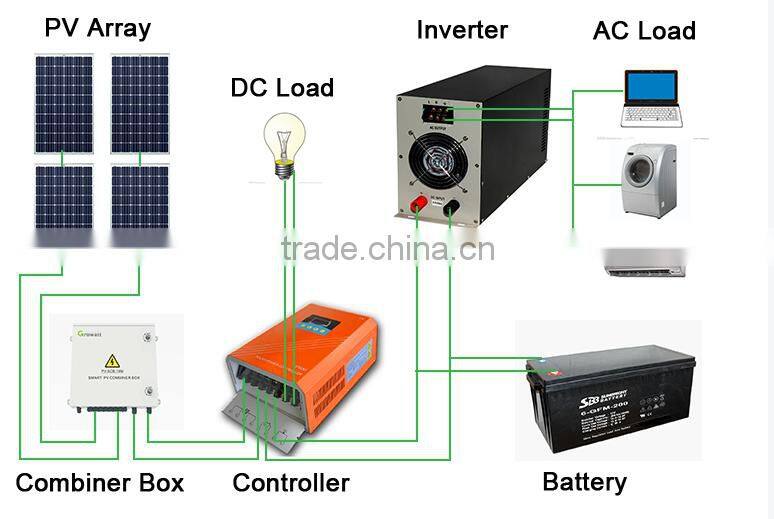

Application: Solar PV home system, off-grid solar system, ect.

 Profile:

       CM series  24v dc voltage regulator is a kind of intelligently, multi-purpose solar charge and discharge controller. The family use the fixed LCD display, with a very friendly interface various control parameters can be flexibly set, fully meet your various application requirements.

Features:

• Image of LCD graphic symbol
• Simple button operation
• Automatic Identification System Voltage level
• Intelligent PWM charge mode
• Automatic Temperature Compensation
• Adjustable charge-discharge control parameters
• Settable Operating mode of Load hours
• Accumulated function of charge and discharge Ampere
• Remote monitoring and control function (customized)
• Battery Low Voltage Disconnection (LVD)
• Battery reverse-discharge protection
• Battery reverse connection protection
• Overload, Short Circuit Protection

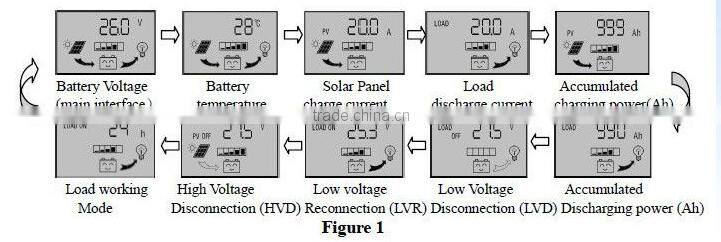

You can View and Set the Parameters:

• Battery voltage
• The load on/off control
• Environment Temperature
• Solar Panel charging current
• Load discharging current
• Accumulated charging power (Ah) by solar panel and back to zero
• Accumulated discharging power (Ah) by Load and back to zero
• Low Voltage Disconnection Protection
• Low Voltage Reconnection
• High Voltage Disconnection

Three Load Working Mode:

 24H—Normal Mode, in case of no fault state of the load is always in power.

 1H~23H—Light Control with Time Control Mode, Load power after dark, and close the load according to the timer setting.

 0H—Light Control Mode, Load on after dark, turn off the load after drawn.

You can try Trade Assurance, you'll enjoy:

• 100% product quality protection
• 100% on-time shipment protection
• 100% payment protection for your covered amount

1. May I take some samples to test before placing the order ?
Answer: Yes, but customers need to pay for the sample fees and express fees, and it will be returned when next order is confirmed.

2. How long can you offer the samples?
Answer: 1~5 days after the deposit payment is confirmed.

3. What's your payment terms for sample?
Answer: You can pay via T/T.

4. What’s the price terms can you offer for us?
Answer: We can accept EXW, FOB, CIF and so on.

5. Do you have any certifications for your products?
Answer: We have ISO9001:2000, CE, RoHS, certifications for all of our products.

6. Where is your main market for your products?
Answer: Most of our Suoer brand products are exported to Southeast Asia, Africa and Mid East.
