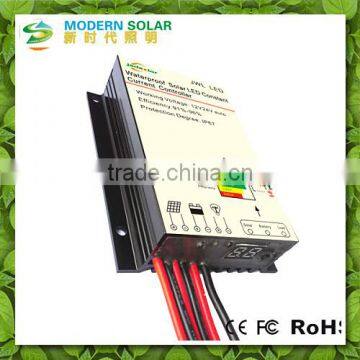

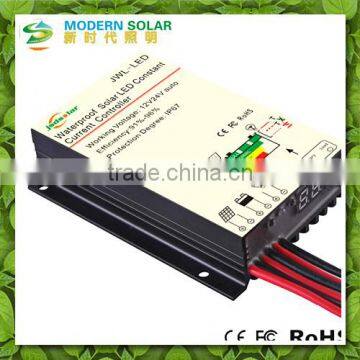

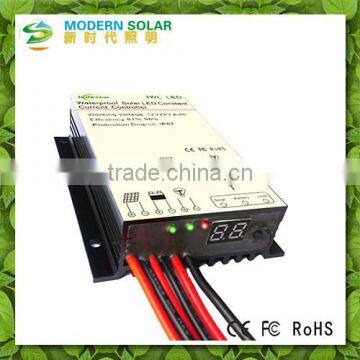

12V/24V 15A SOLAR STREET LIGHTS CONTROLLER

Parameter

Model

JWL-LED

Rated charge current

10A, 15A

Rated system voltage

              12V;  12V/24V auto

 Solar PV input Voltage

         16V/34V to 50V

 Solar PV input Power

                    180W/12V; 360W/24V

Output voltage

Battery voltage - 50V (self boost to meet LED light's voltage)

Max. Output power

40W/12V;  70W/24V

Dimming Value

10%-90% (30mA-1500mA adjustable)

Output current

1500mA, 2700mA(OEM)

Power consumption

Normal mode≤3.5mA

Working temperature

industrial grade:-35°C to +55°C

Boost voltage

14.6V;×2/24V;

Equalization voltage

14.4V; ×2/24V;

Float voltage

13.6V; ×2/24V;

Charging return voltage

13.2v; ×2/24V;

Tempe. Compensation

-3mv/°C/2V(25°C)

Lower voltage

12.0V; ×2/24V;

protecting voltage

11.1V; ×2/24V;

Low voltage

reconnect voltage

12.6V;×2/24V;

N.W/dimension

0.30KG; 100*74*26mm

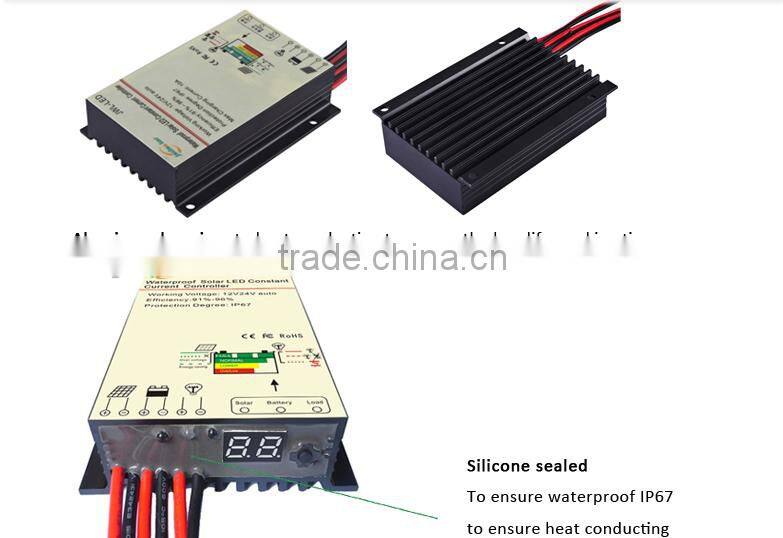

Protection Degree

IP67 (High heating conducting silicone potted)

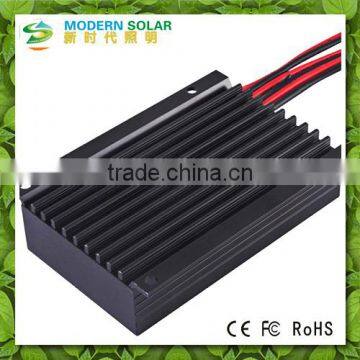

 Housing

Aluminum housing to heatsink

Note

The above voltage is suitable for GEL/AGM/Flooded battery, If bttery is lithium/LiFePO4, we support OEM

 Protection

 PV overvoltage protection

PV over current protection

Over temperature protection

Battery reverse polarity protection

Load overload protection

Load short circuit protection

Features

1.  This charge controller generator  buildin high accuracy constant current (LED Driver), with 91%-96% output efficiency

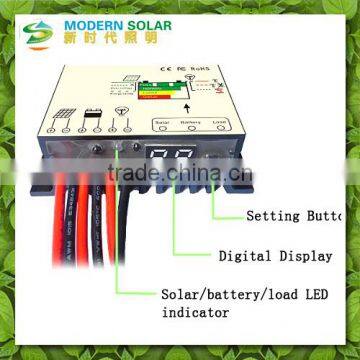

2. A setting button to adjust LED lamp dimmable value and working timers

3.Full power timer, Second timer, Third timer, hours to dawn timer are option with different output power 10%-90% dimming value

4.Special for LESS THAN 70W Solar LED Street Lights

5. This led driver 15a charge controller generator  is equal to a solar charge controller + LED driver + dimming capability

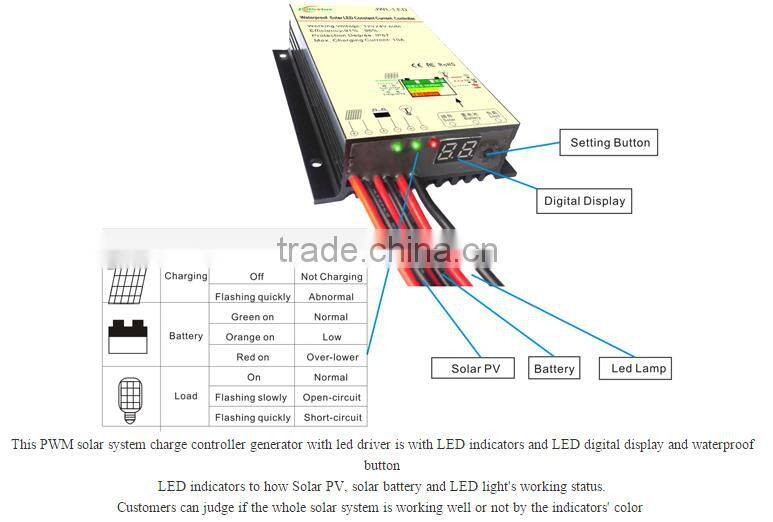

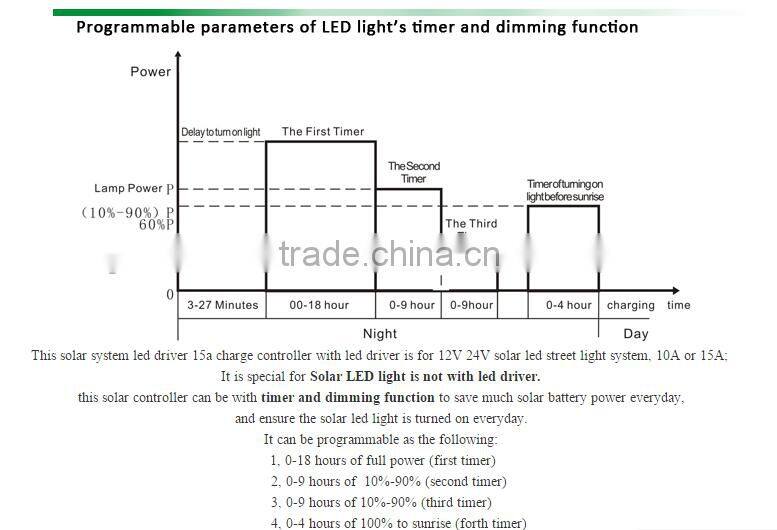

 Timer and dimming

 Fours timers and 10%-90% dimming value, for example:

1, 30W LED light, with 10 series(30V), 3 parallels(1A)

2, 4 hours of 100%, 3 hours of 80%, 3 hours of 40%, 1 hours 100% to sunrise

3, the digital display will shows: 04 23 33 43 58 64 71 82

4, more information, please contact us.
