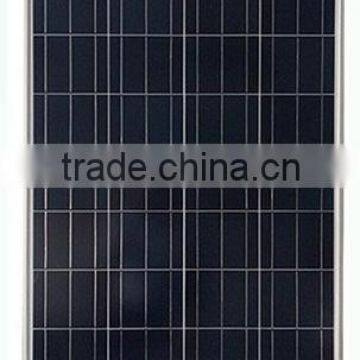

100w Poly Solar Panels

Jiangsu Modern Solar Lighting Co., Ltd.
100w Poly Solar Panels thumbnail-1
100w Poly Solar Panels thumbnail-2
100w Poly Solar Panels thumbnail-3
100w Poly Solar Panels photo-1
100w Poly Solar Panels photo-2
100w Poly Solar Panels photo-3
US$ 0.45 - 0.48 MOQ: 1 Watt
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
MSL
Model Number:
MSLP-100W
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Lianyungang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name MSL
Model Number MSLP-100W
Material Polycrystalline Silicon
Size 1121*673*35mm
Number of Cells 36pcs
Max. Power 100W
Product Description



 STC                                                             MSLP-100
Maximum Power100W
Module Efficiency15.6%
Max Power Current8.49A
Max Power Voltage18.2V
Short Circuit Current5.95A
Open Circuit Voltage22.8V
Power Tolerance0~+5W
Values at Standard Test Conditions STC(Air Mass AM1.5,Irradiance 1000W/m²,Cell Temperature 25℃)
Mechanical Characteristics
Cell Type                                                     Polycrystalline
GlassHigh Transmission,Low Iron,Tempered Glass
Frame                           Anodized Aluminium Alloy
Junction box                                                     IP65/IP67 rated,with bypass diodes
Dimension1121x673x35mm
Output Cable                                     4mm2(EU)/12AWG(US),1000mm²
Weight                         7.5Kg

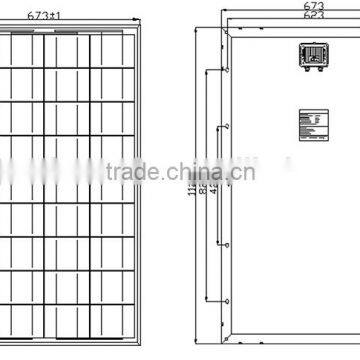

Installation Hole LocationSee Drawing Above
No.of Bypass Diodes3



Product Feature

  1. High cell efficiency with quality silicon materials for long term output stability and reliability.
2. High transmittance low iron tempered glass with enhanced stiffness and impact resistance
3. Unique frame design with high mechanical strength for easy Installation.
4. Advanced encapsulation material with multiplayer sheet lamination to provide efficient
protection from the severest environmental conditions, PET sheet imported from Toyo Japan with advanced encapsulating material
5. Outstanding electrical performance under high temperature and low irradiance conditons
6. Excellent performance in harsh weather,Outstanding electrical performance under high temperature and low irradiance
7. Strictly quality control ensure the stability and reliability, totally 30 QC procedures.

100w poly solar panels100w poly solar panels
