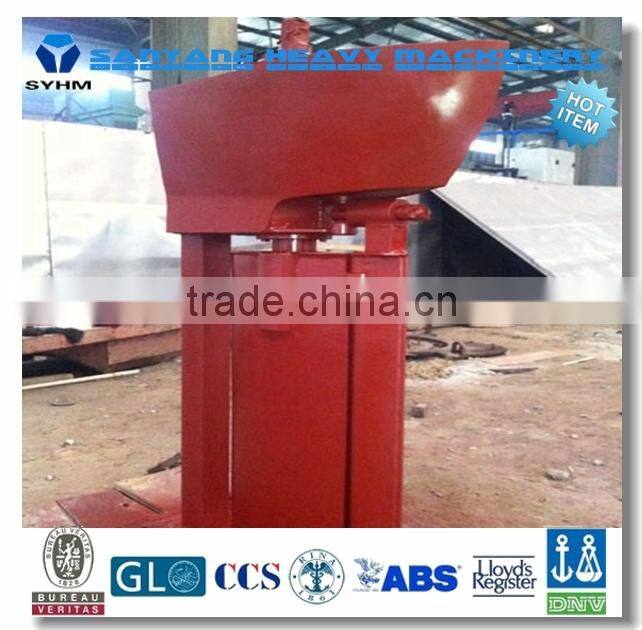

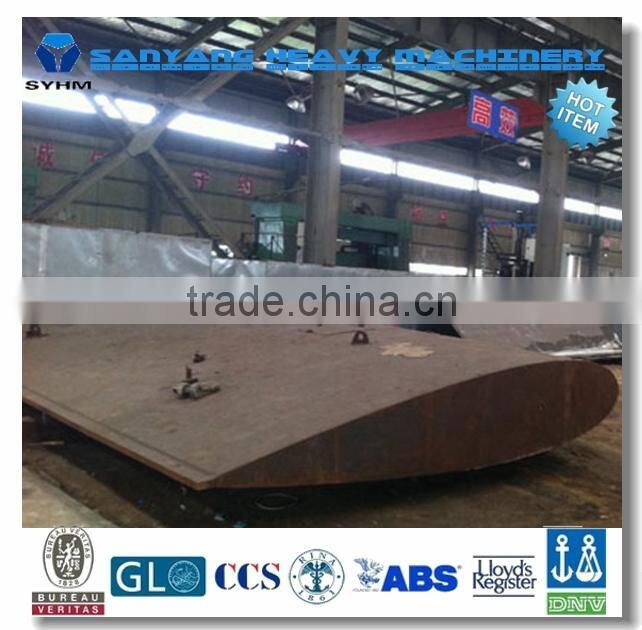

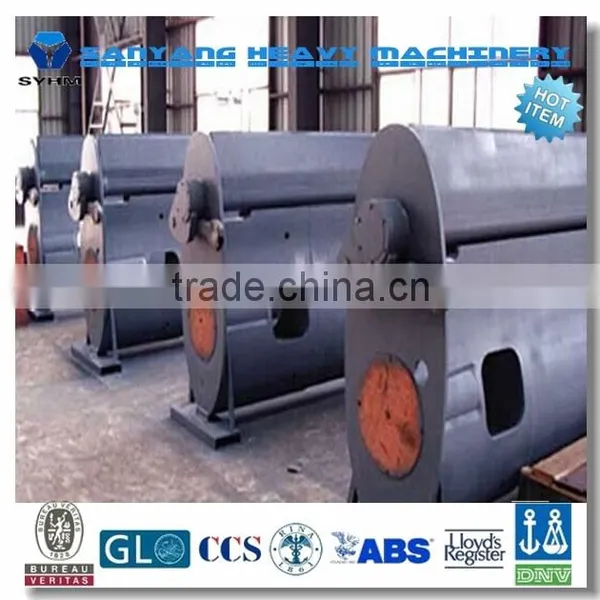

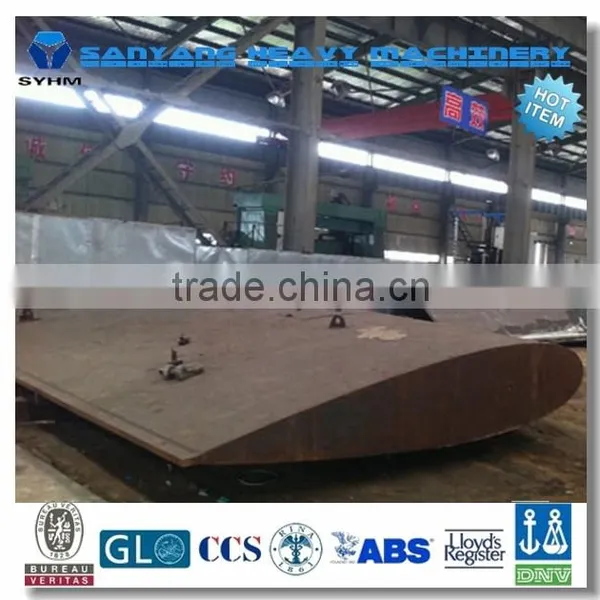

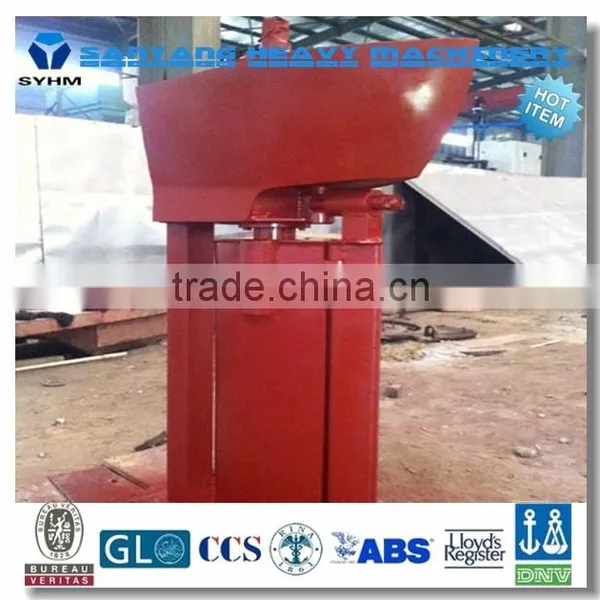

Help CenterHigh Quality Marine Rudder Blade/ Carbon Steel Rudder Blade
Related Products
-
Marine Rudder System for SaleNegotiableMOQ: 1 Set -
Marine Rudder Blade / Rudder BladeNegotiableMOQ: 1 Set
-
Finished Carbon Steel Rudder Blade From Factory SupplyNegotiableMOQ: 1 Set
-
Carbon Steel Marine Rudder BladeUS$ 500 - 5,000MOQ: 1 Piece
-
Marine Flap Rudder SystemUS$ 10,000 - 50,000MOQ: 1 Set
Specification

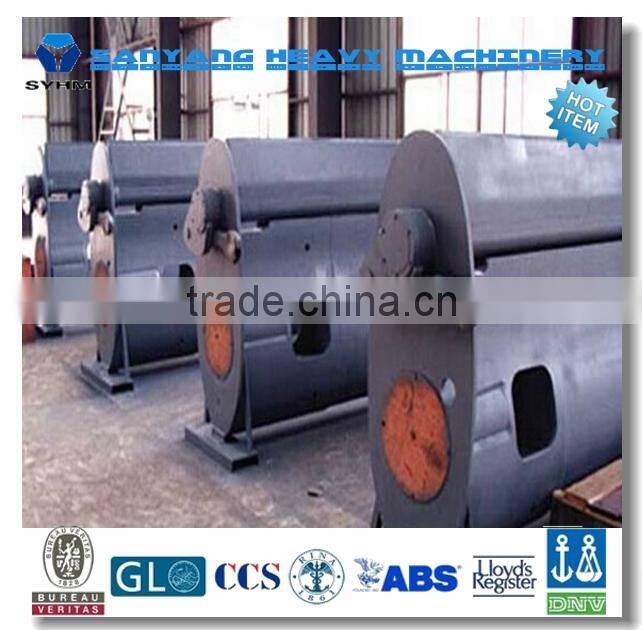

The marine rudder is a main part of the steering system for vessels. The whole rudder system includes rudder blade, rudder carrier, rudder pintle, rudder stock, etc. We can design different types of the rudders as the requirement of our clients.
The Flap Rudder is the ultimate rudder solution when it comes to ship manoeuvrability. With decades of research, development and practical experience behind it, this rudder is the most mature design of all flap rudders in the shipbuilding industry. Optimized profiles, rudder balance, deflection ratio between rudder blade and flap, hinge and link systems guarantee a reliable and efficient tool for your vessel.
Flap Rudder I Type
Rudder angles of +/-45 degrees and additional 45 degrees of the flap permit extreme manoeuvres and dynamic positioning operations. Each ship is different and for some rudder configurations rudder angles of 65°can be applied if a benefit for manoeuvring is expected. Also attractive is the improved course keeping performance and fuel saving obtained through smaller required rudder angles and smaller rudder area, compared to standard rudders.
The advantages of the flap rudders (I-type) are:
• Optimum balance and flap area
• Minimum steering gear size
• Highest insurance against flexural vibration
• High efficiency ratio design
• Highest safety against cyclic stresses
• Durable in heavy duty
• Easy maintenance of link and hinge system
Flap Rudder II Type
This type is an economical Rudder and especially suitable for the small and low speed vessels such as River boats, supply vessels, tug boats, fishing boats or research vessels can take advantage of this type of rudders for their special purposes.
The advantages of the Flap rudder (II-type) are:
• Better covering of propeller stream
• Reduction of the remaining forward thrust
• Easy installation
• Increase of side thrust
• Smaller rudder torque
• Smaller steering gear
• Less stresses of steering gear
I. Packaging Methord:
1. Wooden Case;
2. Iron Frame;
For different shipping methods and destinations, we will suggest different packaging.
If you have any requirement for the packaging, please let me know during enquiry.
II. Shipping:
We offer our clients one-stop service.The shipping tool can be by sea, by air or by train.
It depends on the destination of our products.
And we will suggest you the min. cost and min. damage of the products.
Design Ability: We have a very experienced, creative, and cooperative team, which can design the whole propulsion system according to different vessels and requirements.
Material Preparation: our purchasing dept. will choose the material from many aspects, such as cost, quality, machining, environment protection, etc.

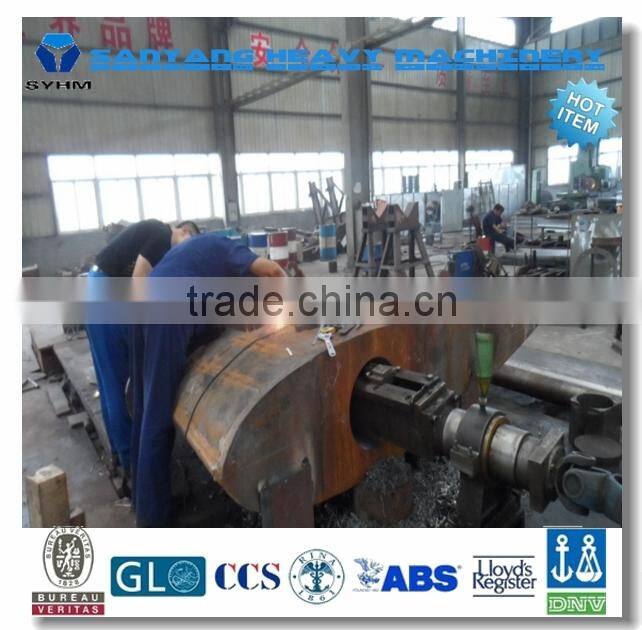

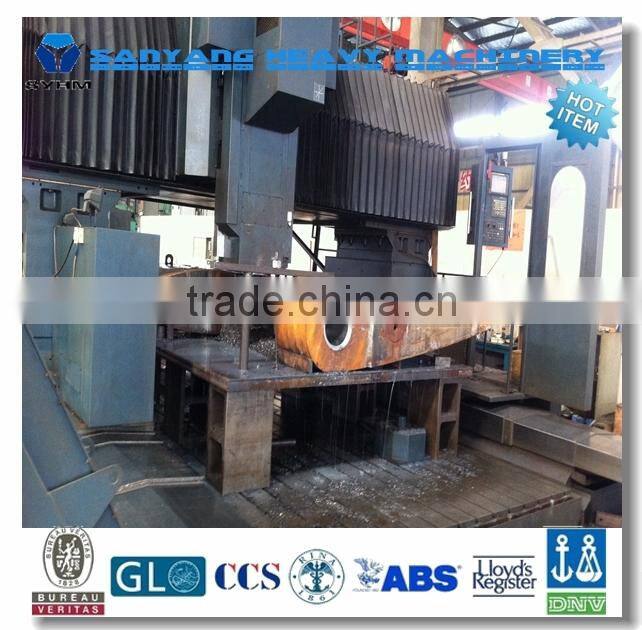

Machining & Test: We have advanced processing equipment with responsible crews. Our factory also have strict quality control process and test skills.
After-sale Service: You will get the after-sale service all over the world. Convenient, Fast, High Efficiency, World-wide, etc.
Best service will be enjoyed by cooperating with us.
