Specifications
1,Used for marine ship propeller,boat propeller
2, Controllable pitch propeller
3,Material Cu3 with ABS,BV,LR,GL,CCS,etc
Our CP propeller diameter up to 5 meters,meterial available Cu1,Cu2,Cu3,Cu4.
Our products has been approved by ABS,BV.CCS,DNV,GL.LR,NK,etc., and abtained the authentication certificate of Quality System ISO9001:2000.
Product Feature
Highest propulsive efficiency in all operating conditions,
Excellent behaviour regarding cavitation,with no erosive types of cavitation
Lowest pressure pulse fluctuations on the hull to minimize noise and vibration levels on board.
Model | Type of Hub | Hub dia.(mm) | Propeller dia.(mm) | Max output(kw) |
SY38 | A,B | 380 | 1500 | 850 |
SY45 | A,B | 450 | 1800 | 930 |
SY53 | A,B | 530 | 2150 | 1300 |
SY57 | B,C | 570 | 2280 | 2500 |
SY63 | B,C | 630 | 2520 | 3000 |
SY72 | B,C | 720 | 2900 | 5000 |
SY79 | B,C | 790 | 3150 | 6000 |
SY85 | B,C | 850 | 3400 | 8000 |
SY92 | B,C | 920 | 4200 | 11000 |
SY105 | C | 1050 | 4500 | >15000 |
SY110 | C | 1100 | 4850 |
|
SY121 | C | 1210 | 4850 |
|
SY135 | C | 1350 | 5300 |
|
A:push-pull rod type, power cylinder in shafting | ||||
B:push-pull rod type, power cylinder in shafting | ||||
C:cylinder in hub type, twin-tube in shafting | ||||
Application
Container vessels, tankers, bulk carriers and dry cargo vessels ,Speed boat,yacht,etc.
Other Information
We design and supply all propulsion system for container ships.cargo ships,tankers,bug boats,trawlers and fishing boats etc. Including Main engine,Gearbox,Shaftings,FPP,CPP,Rudder propellers,Tunnel thrusters,Azimuth thrusters,Water jets,also Main propulsion assembly.

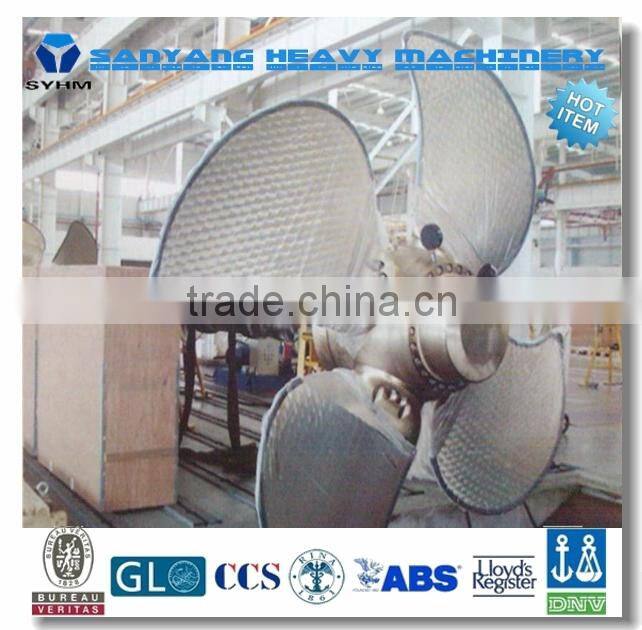

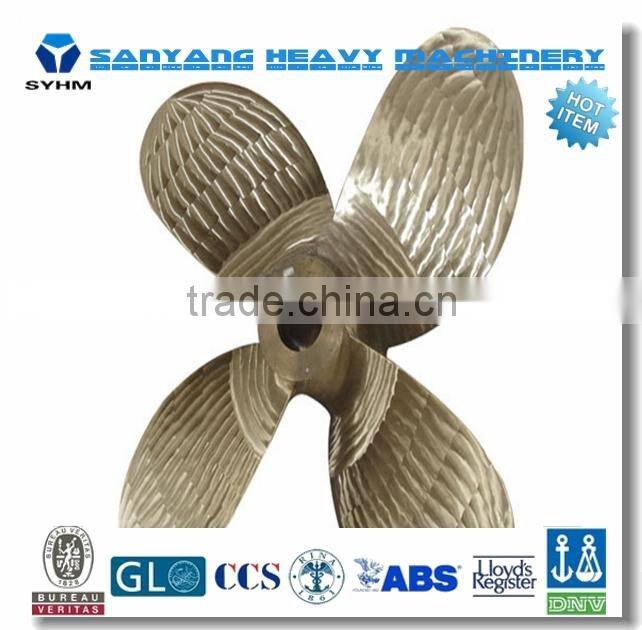

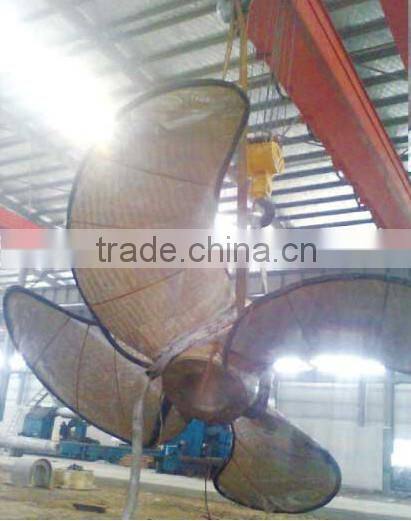

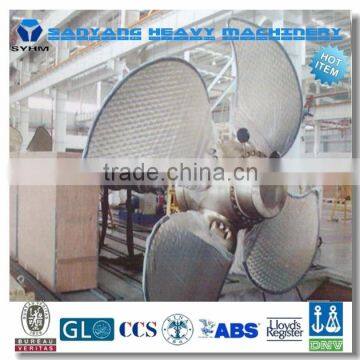

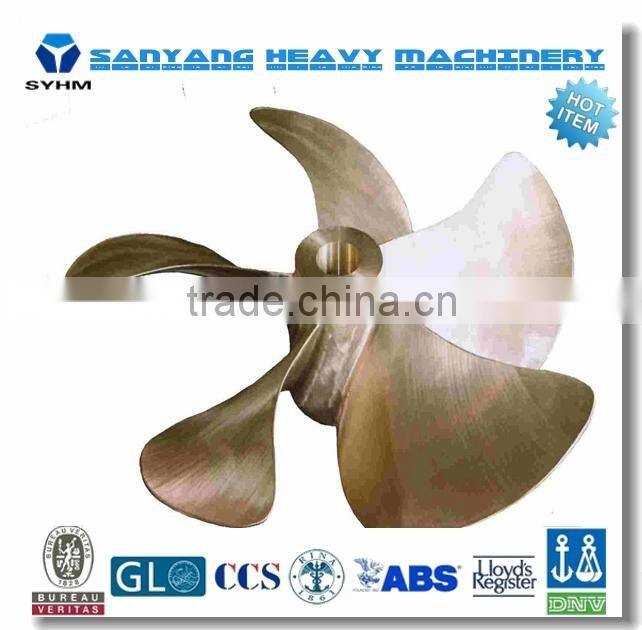

More pictures of real products
Certificate of Sanyang company
