Home > Products > Ship Thruster > CCS, BV, RINA, ABS, DNV-GL, RS Approved 50-2000KW Electrical Marine Bow Tunnel Thruster

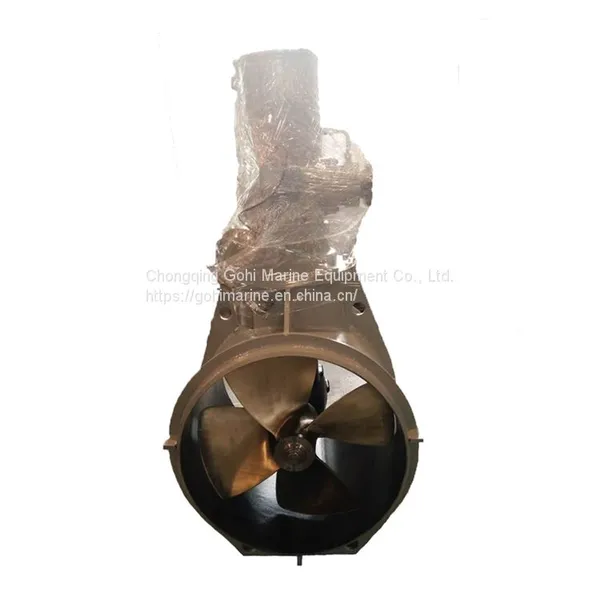

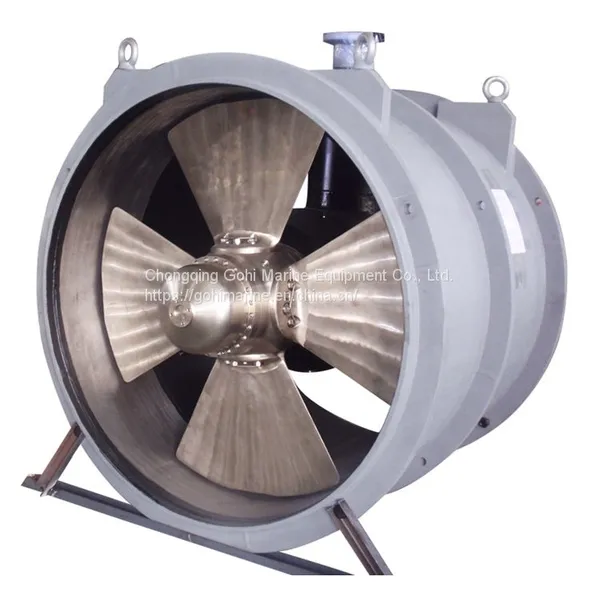

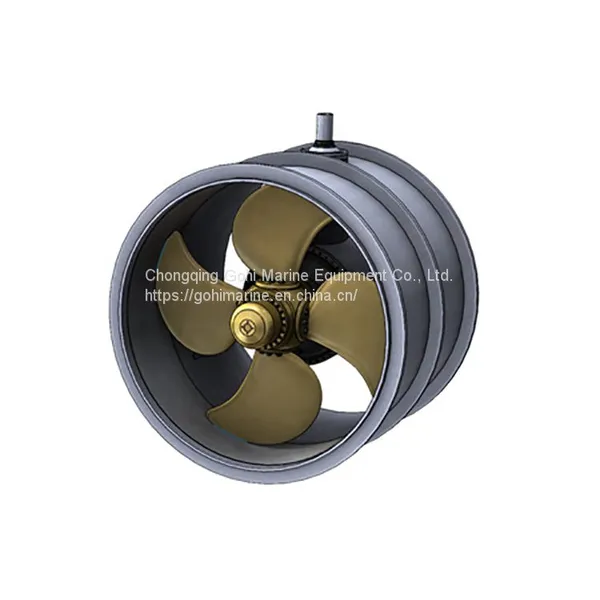

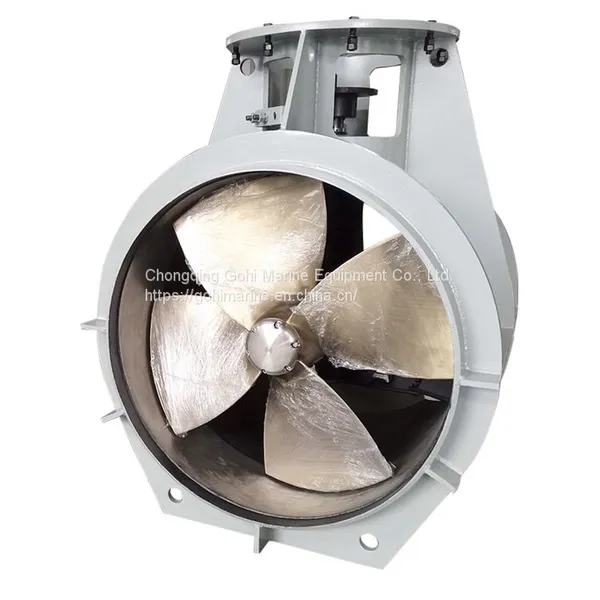

CCS, BV, RINA, ABS, DNV-GL, RS Approved 50-2000KW Electrical Marine Bow Tunnel Thruster
USD $8000 - $50000
/ Set
1 Set(Min.Order)
- 1000 Set / Sets per Month
- Ningbo, Shanghai
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 20 days
You May Like
- CCS, EC, RMRS Approved SOLAS 35 Persons GRP Totally Enclosed Lifeboat
- EC Approved SOLAS 150N Double Chamber Inflatable Life Jacket
- EC Approved SOLAS 150N Foam Work Life Jacket Vest
- RS Approved 180,000Kcal/h Marine Waste Oil Sludge Incinerator
- 5T Per Day Ship Plate Type Fresh Water Generator FWG
- 1T/D Reverse Osmosis RO Seawater Desalination Plant
Product Details
Material: | Copper | Certification: | ISO9001:2000 | Diameter (mm): | 400-3000mm |
Blades: | 4 |
Product Description
Basic Info.
Model NO.
GH
Material
Copper, Optional
Blades
4
Certification
CE
Diameter (mm)
Optional
Certificate
ABS,CCS,BV,Lr,Gl,Nk
Diameter
500-2100mm
Transmission Way
L-Drive and Z-Drive
Transport Package
Wooden Case
Specification
CCS/CE/ABS
Trademark
GH
Origin
China
Production Capacity
60 Unit/Units Per Month
Product Description
CCS, BV, RINA, ABS, DNV-GL, RS Approved 50-2000KW Electrical Marine Bow Tunnel Thruster
1.Diameter 500-3000mm.
2.FPP or CPP propeller.
3.Eletric or engine drive.
4.CCS ,BV ,ABS,NK, KR, DNV, RINA,LR, GL.
FPP & CPP Azimuth Thrusters / Thruster Ship/ Thruster motor:
Bow and tunnel thrusters are primarily used for docking, slow speed maneuvering, emergency steering and station keeping at zero or slow forward speed. They are installed transversely in the bow or the stern of a vessel.
Electric FPP & CPP Azimuth Thrusters / Thruster Ship/ Thruster motor
Electric drive bow thrusters with fixed pitch propeller are available from 250 to 10,750 HP (8.0MW). They are designed for variable speed electric motor input, either DC with SCR control systems or AC with variable frequency drives. Most are used in dynamic positioning applications.
Engine Driven FPP & CPP Azimuth Thrusters / Thruster Ship/ Thruster motor
Engine driven bow thrusters for direct engine drive are available in the range of 250 to 3,000 HP. The engine must be provided with a marine gear with a reduction ratio to match the input speed. A cardan shaft connects between the output shaft of the marine gear and the input shaft.
Hydraulic FPP & CPP Azimuth Thrusters / Thruster Ship/ Thruster motor
We offer a great line of hydraulic bow thrusters. They are used all over the world, many of them in dynamic positioning applications. hydraulic bow thrusters are available from 35hp to 2,000hp. Geared Bow thrusters for electric or direct engine drive are available from 250 to 3,000 HP.

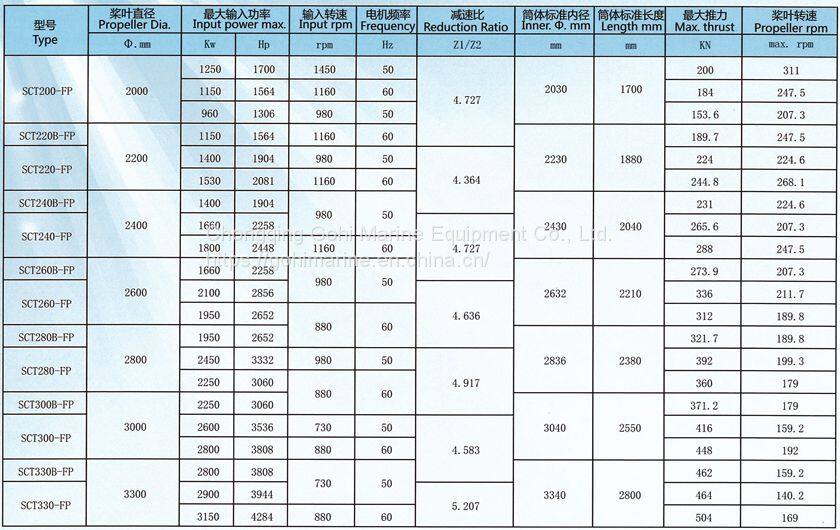

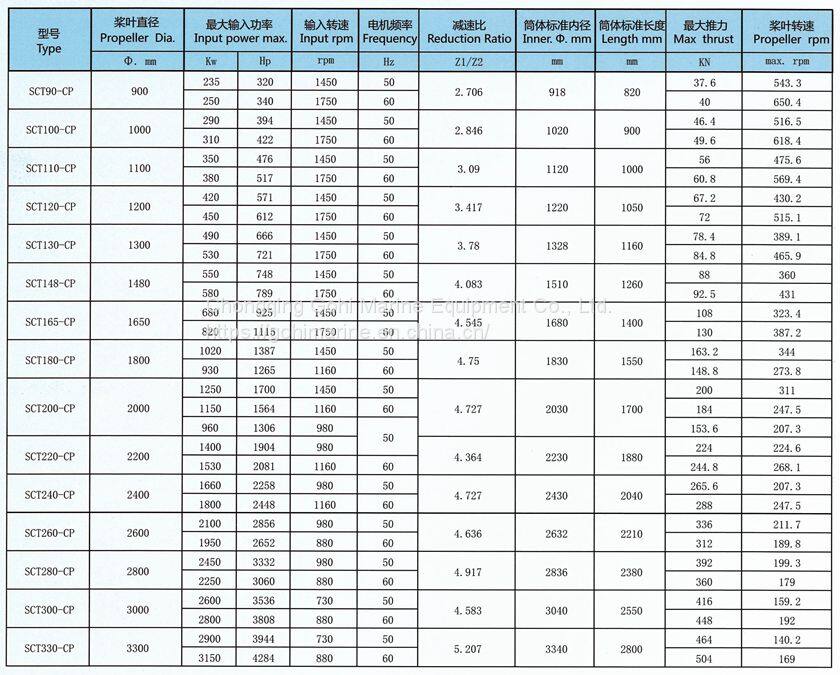

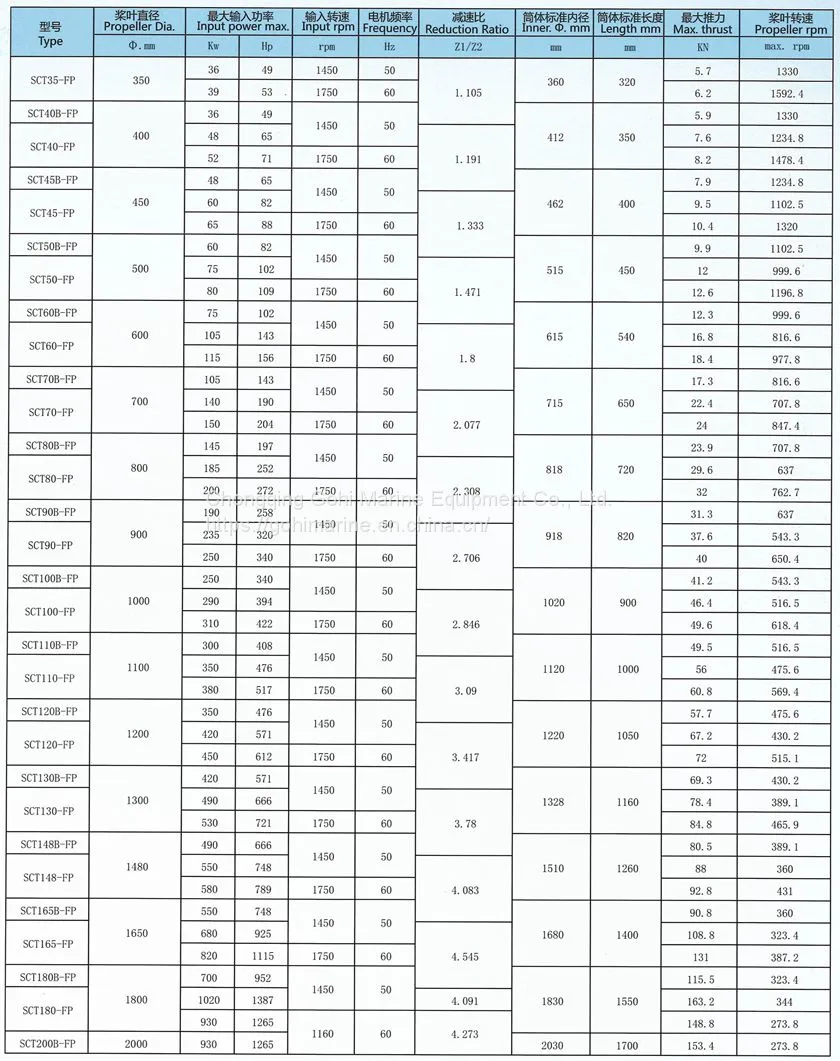

Propeller diameter (mm) | Power (KW) | Max thrust (KN) | Propeller type |
600 | 20~75 | 16 | FPP |
900 | 75~210 | 33 | FPP |
1100 | 200~330 | 46 | FPP,CPP |
1300 | 310~470 | 66 | FPP,CPP |
1650 | 450~760 | 108 | FPP,CPP |
1850 | 720~1020 | 132 | FPP,CPP |
2000 | 980~1270 | 165 | FPP,CPP |
2250 | 1200~1550 | 235 | FPP,CPP |
2500 | 1450~2100 | 326 | FPP,CPP |
2750 | 2060~2480 | 378 | FPP,CPP |
3000 | 2300~2930 | 462 | FPP,CPP |
