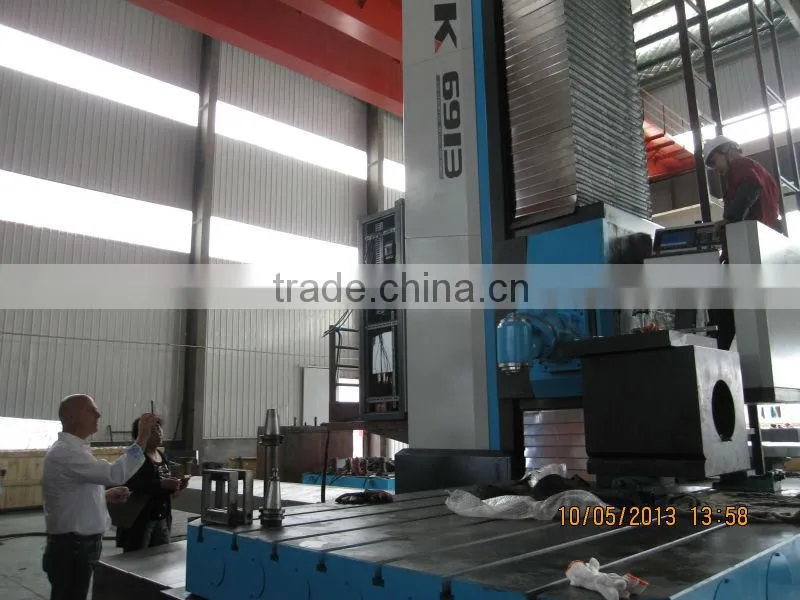

TK6913 Metal Deep Hole CNC Floor Type Boring Machine for sale
SPECIFICATION
Specification |
Unit |
TK6913 |
TK6916 |
TK6920 |
TK6926 |
Boring spindle diameter |
mm |
Ø130 |
Ø 160 |
Ø 200 |
Ø 260 |
Spindle taper |
|
ISO50(BT50) |
ISO50(BT50) |
ISO60 |
ISO60 |
Spindle speed |
rpm |
2-1000(Op:2000) |
2-800(Op:2000) |
2-800(Op:2000) |
2-800 |
Size of ram section |
mm |
380´380 |
480´520 |
480´520 |
640´720 |
Total travel of boring spindle and ram |
mm |
1500 |
2400 |
2400 |
3200 |
Travel of boring spindle (W axis) |
mm |
800 |
1200 |
1200 |
1600 |
Axial travel of ram(Z axis) |
mm |
700 |
1200 |
1200 |
1600 |
Vertical travel of boring head (Y axis) |
mm |
2000-4000 |
2000-6000 |
2000-7000 |
3000-9000 |
Longitudinal travel of column(X axis) |
mm |
3000-30000 |
3000-30000 |
3000-30000 |
3000-30000 |
Feedrate of ram(Z axis) |
mm/min |
0.5-4800 |
1-4000 |
1-4000 |
0.5-4800 |
Feedrate of boring spindle (W axis) |
mm/min |
0.5-4800 |
1-4000 |
1-4000 |
0.5-4800 |
Longitude travel speed of column |
mm/min |
1-5600 |
1-6000 |
1-6000 |
1-5600 |
Vertical travel speed of boring head |
mm/min |
1-5600 |
1-6000 |
1-6000 |
1-5600 |
Main travel speed of boring head |
kW |
22/30 |
55 |
75 |
110 |

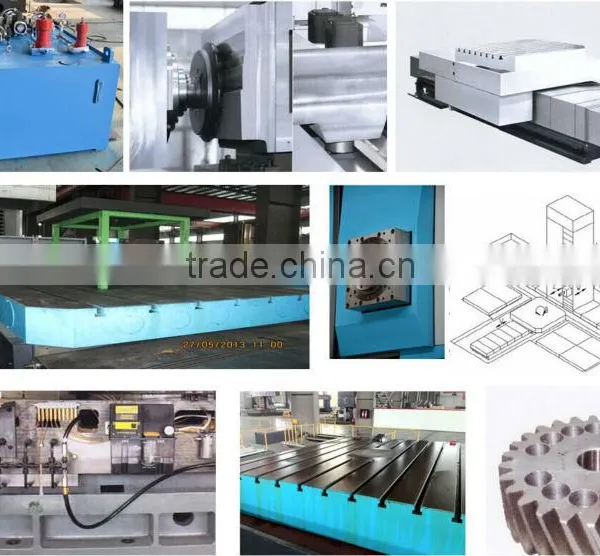

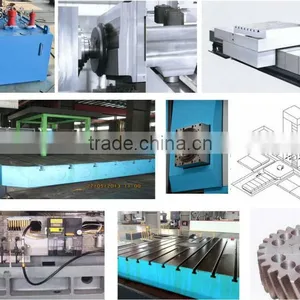

MAIN STRUCTURE AND FEARTURES
|
Machine tool main drive: Machine tool main drive by mechanical variable speed motor and speed regulating electrical appliances can obtain 2-560 - r/min1000 r (optional) the infinite speed range to meet the needs of various machining. |
|
The transmission structure: X axis traverse by eliminating gaps for the double pinion and rack structure of the whole feed structure in a slide in the body and therefore good rigidity and transmission can be eliminate the clearance adjusting Spindle box vertical feed (Y) with ball screw pair drive screw fixation in the first column on the feed motor through slow down gear drives the rotating spindle box to get the vertical feed Z axis W axis driving principle of the ball screw vice same as Y-axis. |
|
Precision compensation system: TK69 CNC floor-type boring and milling machine series adopts automatic gravity compensation system to ensure the balance of spindle box body and prevent slippery pillow moved forward when the main spindle box focus changes and make the spindle head. |
|

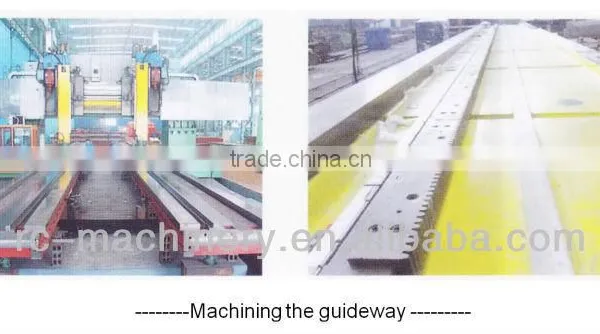

Guide: Former pillar traverse spindle box for vertical feed and ram the axial feed adopts the static pressure guide rail machine precision has good damping shock absorption effect to keep good long life high reliability. |

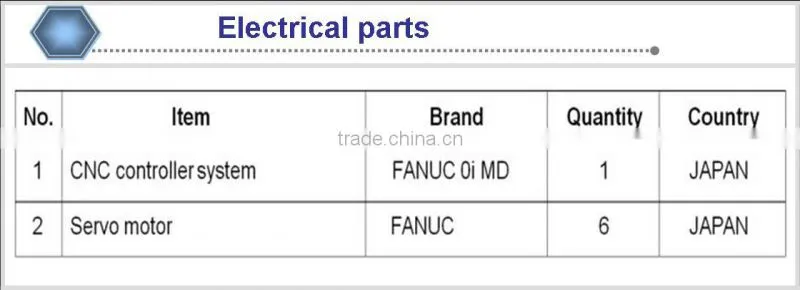

ACCESSORIES AND PARTS
Part |
Brand |
Origin |
Bearing |
SKF |
Sweden |
Gearbox and reducer |
ZF(high speed) |
Germany |
Screw |
Bliss |
Germany |
Electric Cabinet |
Rital |
Germany |
Boring spindle |
Xiangyang Precision |
China |
Y axis shield |
Heman |
Germany |
Oil pump |
Compass |
Taiwan |
Main motor and servo |
FANUC |
Japan |
Controller |
FANUC Oi MD |
Japan |
Touch Panel |
FANUC |
Japan |
Motor control unit |
FANUC |
Japan |
Electric Cabinet AC |
Sanhe |
China |

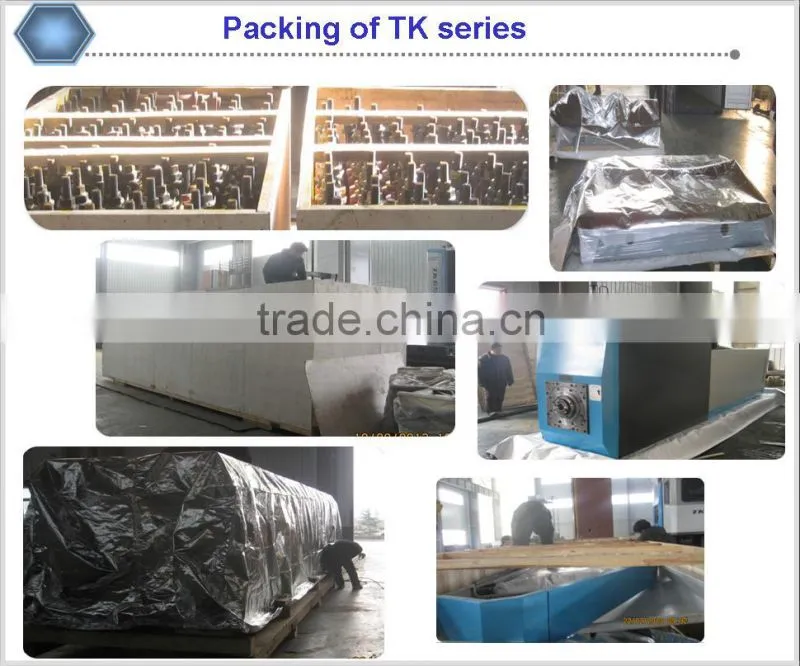

PACKING

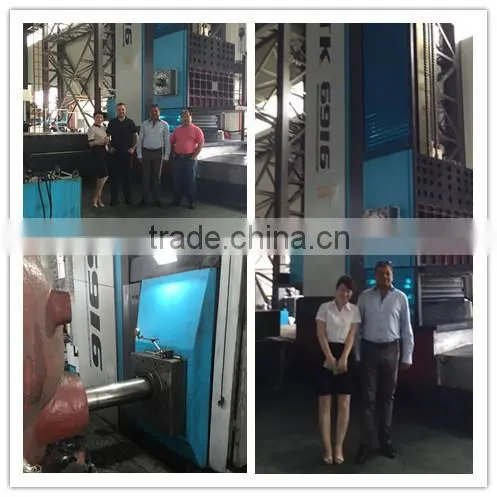

OTHER INFORMATION AND EXHIBITION
WHY CHOOSE US
CONTACT
