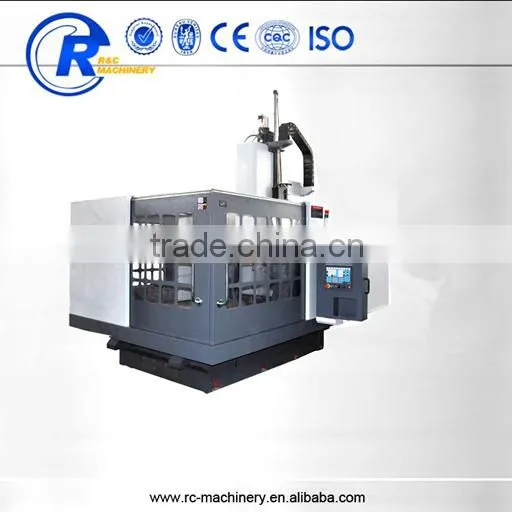

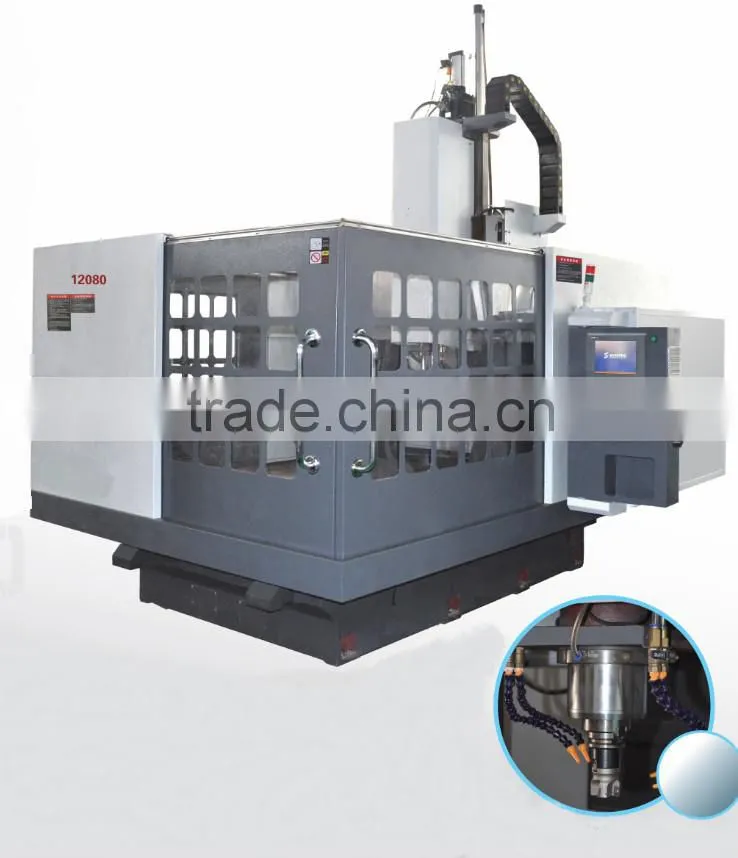

RC12080 China Manufacture CNC Carving and Milling Machine
KR-12080 is kind of open design, and it is convenient for users to load and unload processing parts.
Machine body is fully casting with stable structure and great weight-bearing ability.
Machine has been equipped with accurate bidirectional ball screw of famous brand,
Taiwan rectangle rail and accurate bearing with strong rigidity and high dynamic accuracy.
It is also equipped with Japan YASKAWA ac servo motor. High-speed main axis and cooling system with
high accuracy and high power make amplitude smaller and three-axis more stable.
Machine has been equipped with automatic cutter setting device.
Item |
Standard Values |
Unit |
X/Y/Z travel |
800*1200*350 |
mm |
Table size |
800*1300 |
mm |
Table flatness tolerance |
±0.03 |
mm |
Spindle deviation |
<0.005 |
mm |
X/Y/Z control resolution |
0.0015625 |
mm |
X/Y/Z motion positioning accuracy |
±0.01/300 |
mm |
X/Y/Z repeatability |
±0.00625 |
mm |
X/Y/Z operating sensitivity |
<0.005 |
mm |
Z axis spatial height |
520 |
mm |
Machine weight |
4200 |
kg |
Max.carving power consumption |
13 |
kw |
Max.caving speed |
6000 |
mm/min |
Papid traverse |
8000 |
mm/min |
X/Z perpendicularity |
0.01/300 |
mm |
Spindle speed |
60-12000(r-min) |
r-min |
Power of main motor |
BT40 5.5W |
kw |
Drive system |
AC servo |
|
Working voltage |
380V/50Hz |
|
Overall dimension |
3200*2700*2900 |
mm |

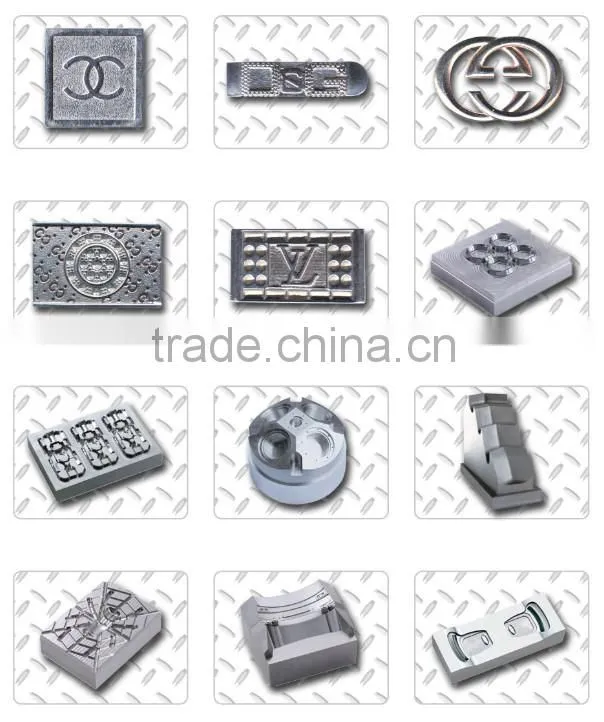

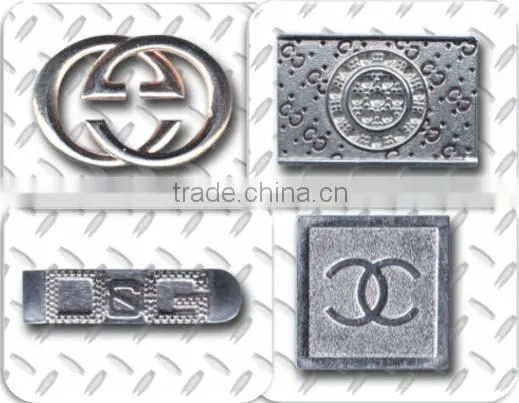

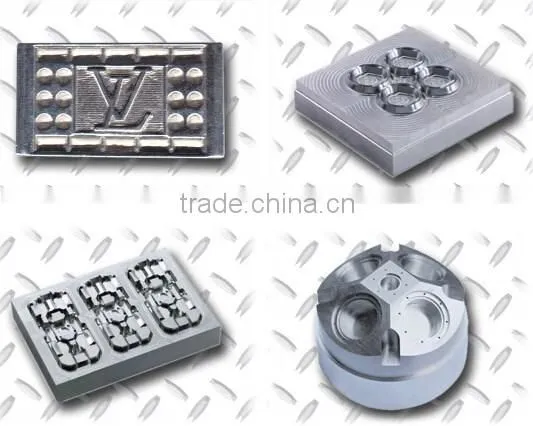

Main application:

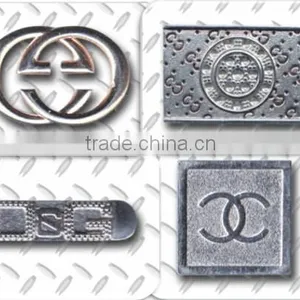

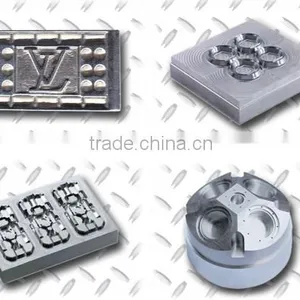

The machine is widely adopted in small and medium sized auto parts molds, plastic molds stamping molds
and electrodes, etc. It has high accuracy and efficiency, and it is the fast speed specialized carving milling CNC machine.
|

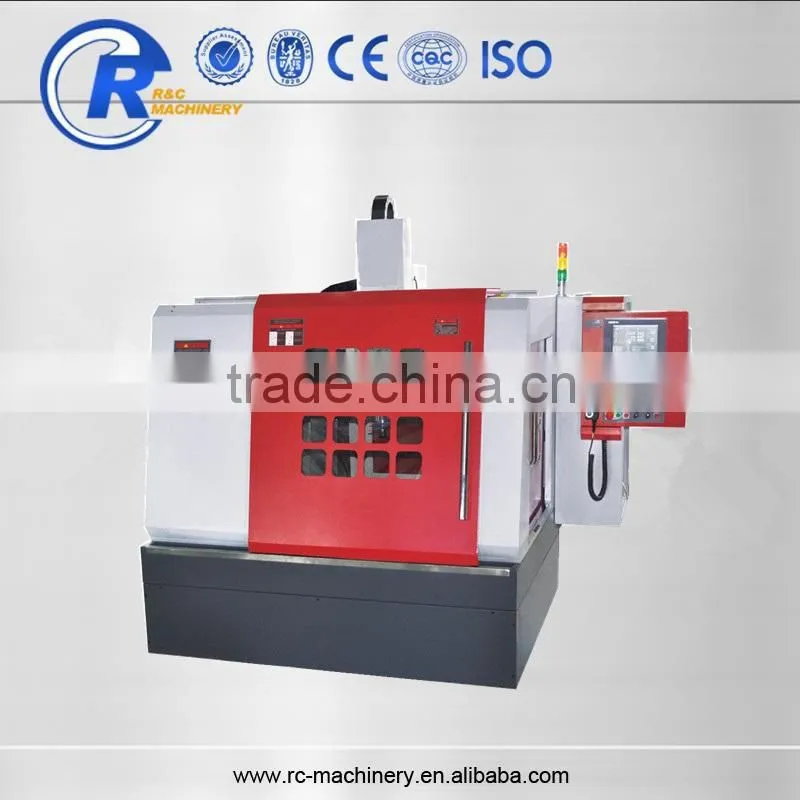

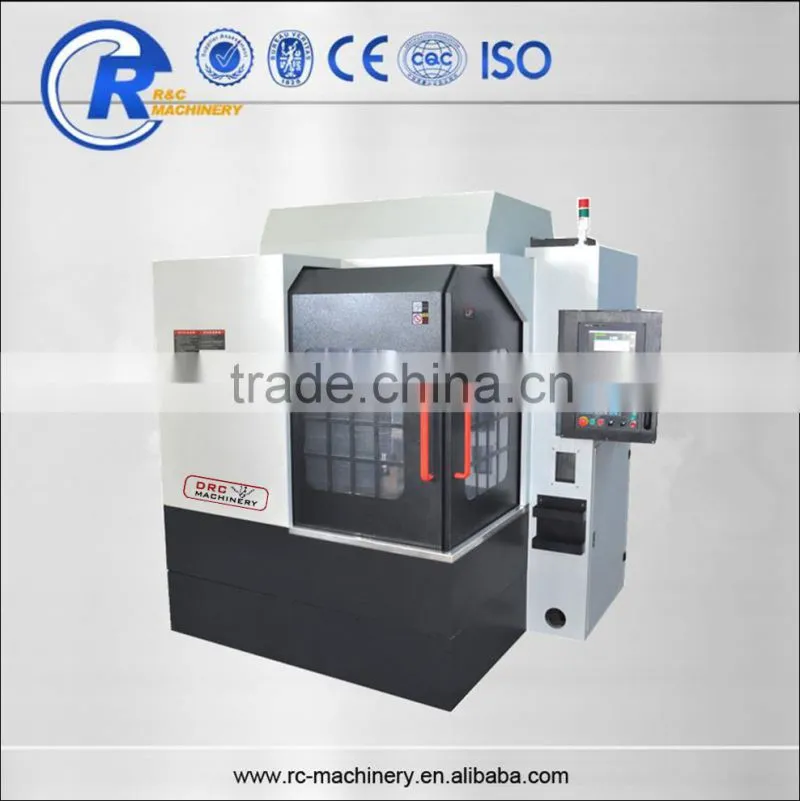

RC7090B X/Y/Z carving size: 700*900*300mm Table size:700*900mm Max. carving speed: 6000mm/min |
RC6050 X/Y/Z carving size: 600*500*300mm Table size:600*500mm Max. carving speed: 6000mm/min |
