VS555 5-axis cnc simultaneous milling machine

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Vertical
Place of Origin	Jiangsu, China	Brand Name	Kinsen
Model Number	VS555	Voltage	380
Power(W)	5.5-7.5	Dimension(LWH)	20008502000
Weight	1.5T	Certification	CE ISO BV
Warranty	1 YEAR, 1 year	After-sales Service Provided	Engineers available to service machinery overseas

VS555 5-axis cnc simultaneous milling machine

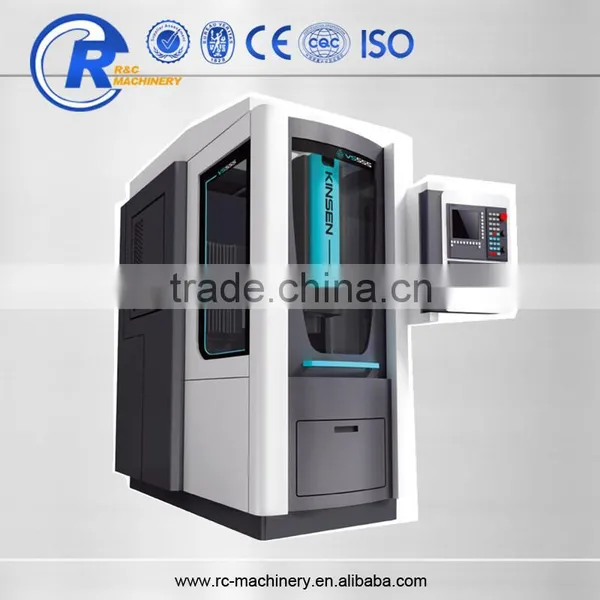

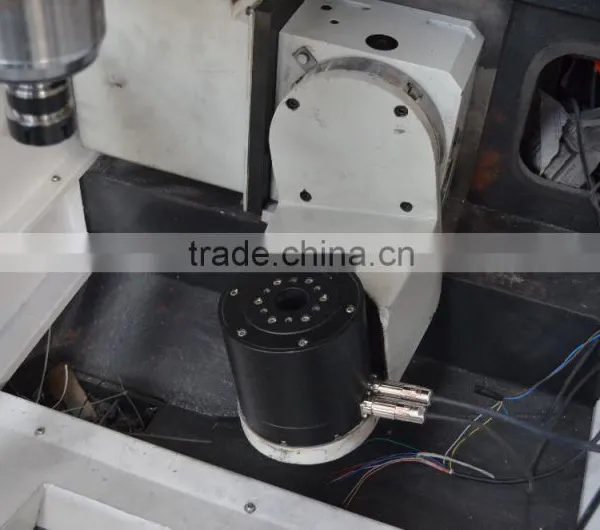

Photos of Machine

Main Parameters

Item	VS555
Table size(mm)	250/190
X/Y/Z travel(mm)	300300300
Swing table( B axis)	±90°
Rotary table(C axis)	0---360°
Max load(Kg)	20
Distance from spindle nose to table surface(mm)	80---380
Spindle type	BT30
Tool magazine type (optional)	BT30 gang type
Tool magazine capacity(Optional)	4
Spindle speed(r/min)	24000/12000
Spindle power(Kw)	5.5/7.5
Ball Screws	Hongtai
Ball screw bearing	Hong yuan/GSK
Spindle unit	Hesheng
Positioning accuracy(mm)	X/Y/Z:0.01 B/C:0.002°
Repeatability accuracy(mm)	X/Y/Z:0.005 B/C:0.0015°
Quick movement(mm/min)	16000
Machine cover	Full cover
Lubrication system	Automatic
Spindle cooling system	Oil cooling
Coolant system	Water coolant
Gross weight(T)	1.5
CNC controller	GSK/SIEMENS/FANUC/HEIDENHAIN
