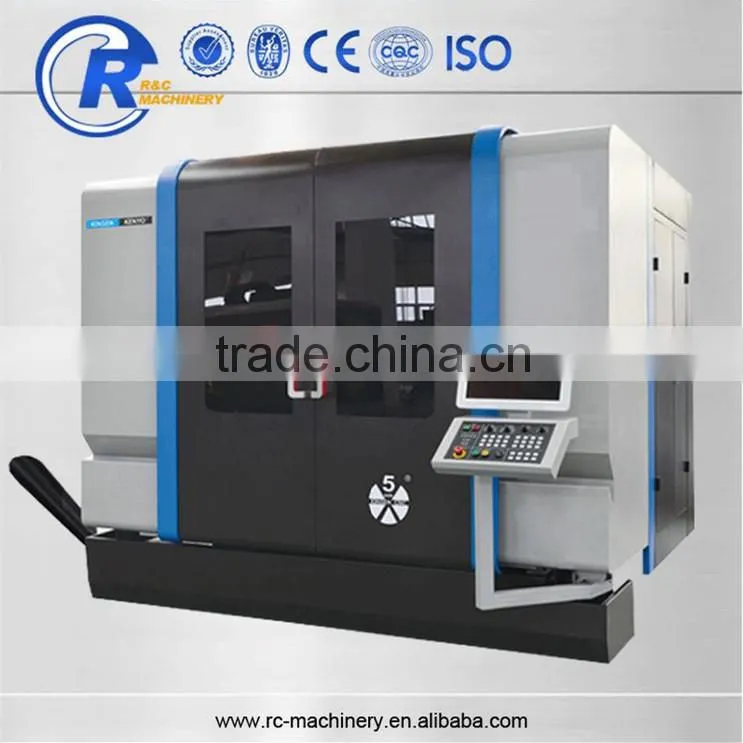

VS80160 5 axis Simultaneous cnc Milling Machining Center
| IMAGE >> SPECIFICATION >> MAIN PARTS >> OTHER 5AXIS >> OTHER MACHINES >> PACKING >> R&C |
|
|
IMAGE > SPECIFICATION>MAIN PARTS > OTHER 5AXIS>PACKING>OTHER MACHINES> PACKING > R&C |
Item |
VS80160 |
Table size(mm) |
800×1800 |
X/Y/Z travel(mm) |
1600×800×800 |
Embedded rotary table diameter(C axis) |
Φ630 |
Max. table loading(Kg) |
2000 |
Distance from spindle nose to table surface(mm) |
220---1020 |
Spindle type |
BT40 |
Spindle diameter |
170mm |
Spindle swivel angle B axis |
±110° |
Spindle speed |
8000/10000/12000 |
Tool magazine type |
BT40 |
Tool magazine capacity |
24/32 |
|
Repeatability(mm) |
X:0.01 |
Y:0.01 | |
Z:0.01 | |
C axis:0.0015° | |
B axis:0.0015° |
|
IMAGE >> SPECIFICATION >> MAIN PARTS >> OTHER 5AXIS >> OTHER MACHINES >> PACKING >> R&C |
|
|
| IMAGE >> SPECIFICATION >> MAIN PARTS>> OTHER 5AXIS>> OTHER MACHINES >> PACKING >> R&C |
|
|
|
|
|
VS555 Machining Area 300x300x300mm TableSwivel ±90° |
VS655 Machining Area 600x300x420mm Spindle Swivel ±110° |
VS5080 Machining Area 800x500x500mm Spindle Swivel ±110° |
VS80180 Machining Area 1800x800x800mm Spindle Swivel ±110° |
|
IMAGE >> SPECIFICATION >> MAIN PARTS >> OTHER 5AXIS >> OTHER MACHINES >> PACKING >> R&C |
|
|
|
|
