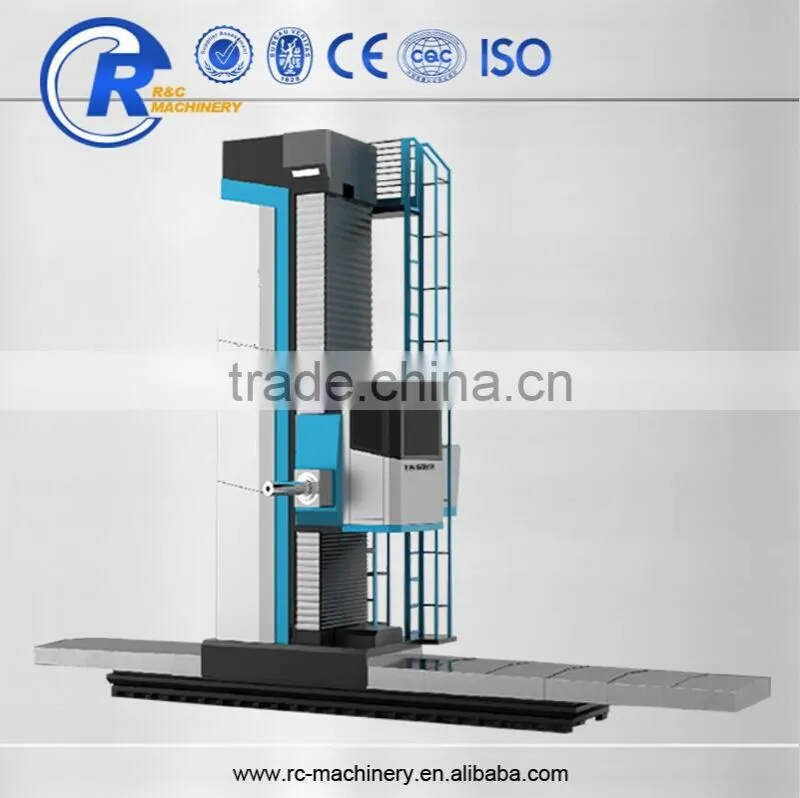

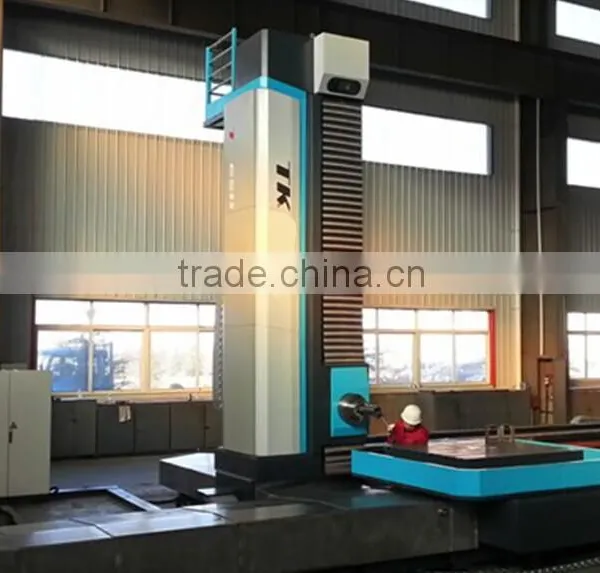

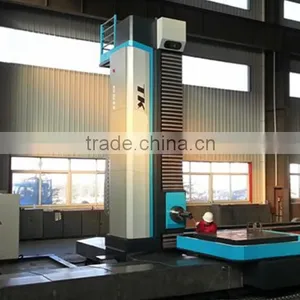

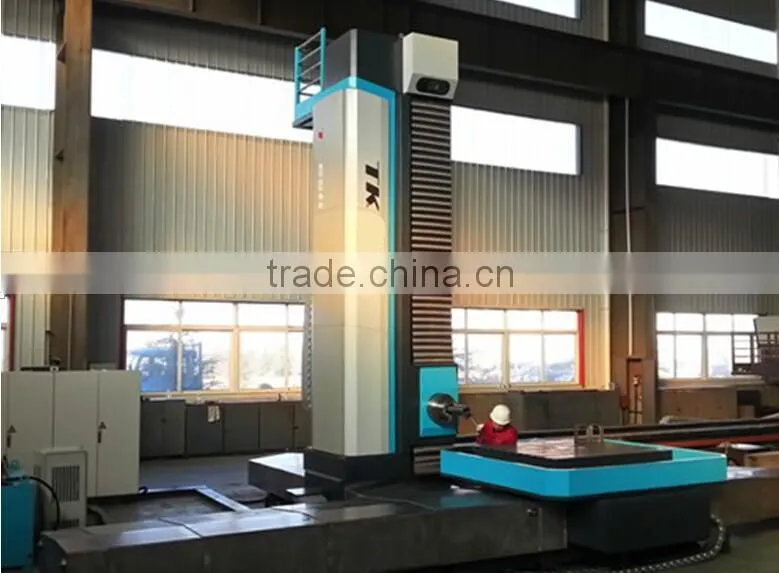

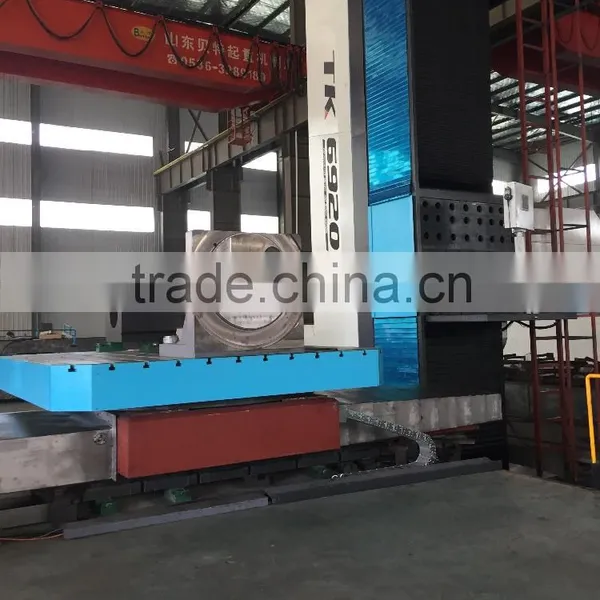

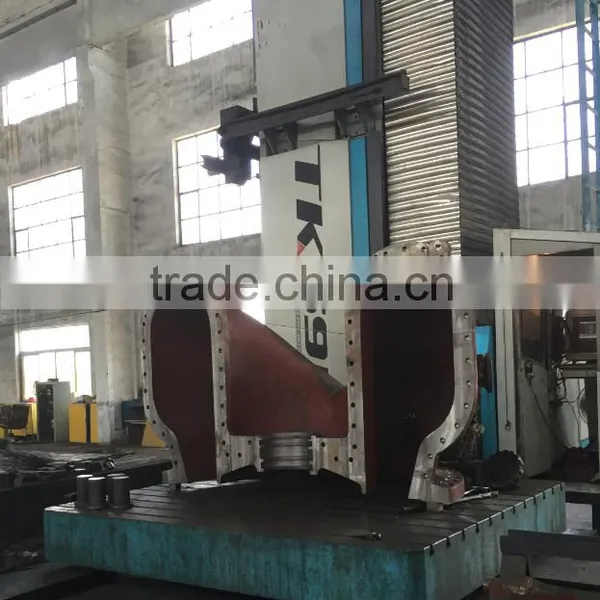

TK6816 motorcycle cylinder CNC boring mill machine sale
IMAGES>SPECIFICATION>SHOW ROOM>OTHER VERTICAL LATHES>OTHER MACHINES>PACKING>R&C |
| |
| IMAGES>SPECIFICATION>>SHOW ROOM>>OTHER VERTICAL LATHES>>OTHER MACHINES>>PACKING>>R&C |
Specification |

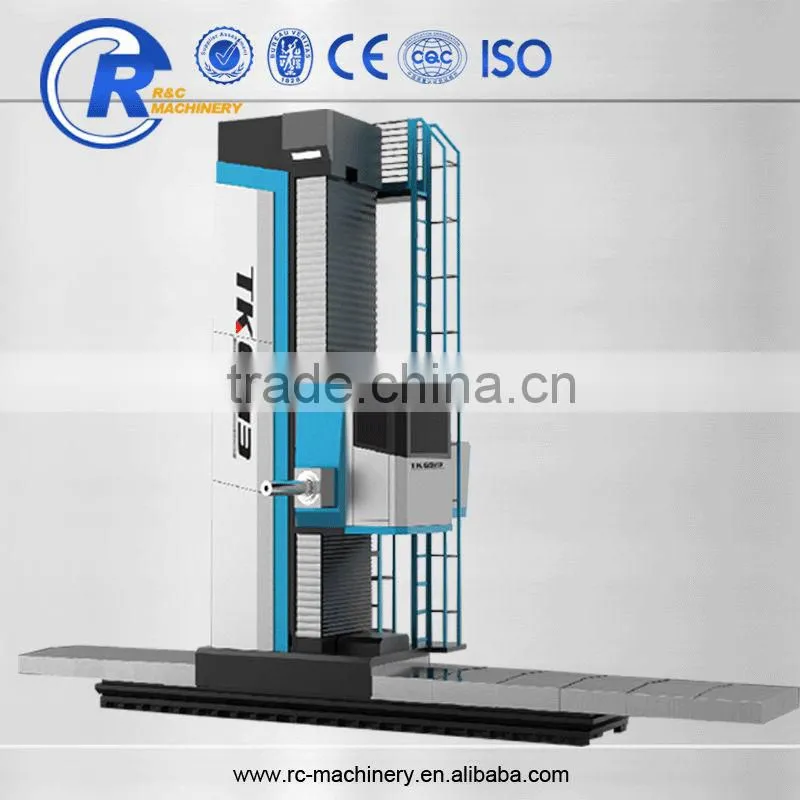

TK6813 |
TK6816 |
Spindle diameter |
130mm |
160mm |
Spindle taper |
ISO50 |
ISO50 |
Max. spindle speed |
2000r/min |
2-1500r/min |
Motor power |
22/33(kW) |
30/37(kW) |
Ram size |
380mm*380mm |
480mm*520mm |
Table size |
2000*2000mm |
2500*2000mm |
Table loading capacity |
10-40ton |
10-40ton |
Max. spindle torque |
3500Nm |
3500Nm |
Max. spindle thrust |
25000N |
25000N |
Cross travel of table(X axis) |
2000-7000mm |
2000-7000mm |
Vertical travel of spindle head (Y axis) |
1500-4000mm |
1500-4000mm |
Longitude travel of column(W axis) |
1500mm |
1500mm |
Axial travel of ram(V axis) |
800mm |
800mm |
Axial travel of boring spindle (Z axis) |
800mm |
800mm |
Table rotary indexing (B axis) |
360*(random) |
360*(random) |
| IMAGES>>SPECIFICATION>>SHOW ROOM>>OTHER VERTICAL LATHES>>OTHER MACHINES>>PACKING>>R&C |
|
| IMAGES>SPECIFICATION>SHOW ROOM>OTHER VERTICAL LATHES>OTHER MACHINES>PACKING>R&C |
|
|

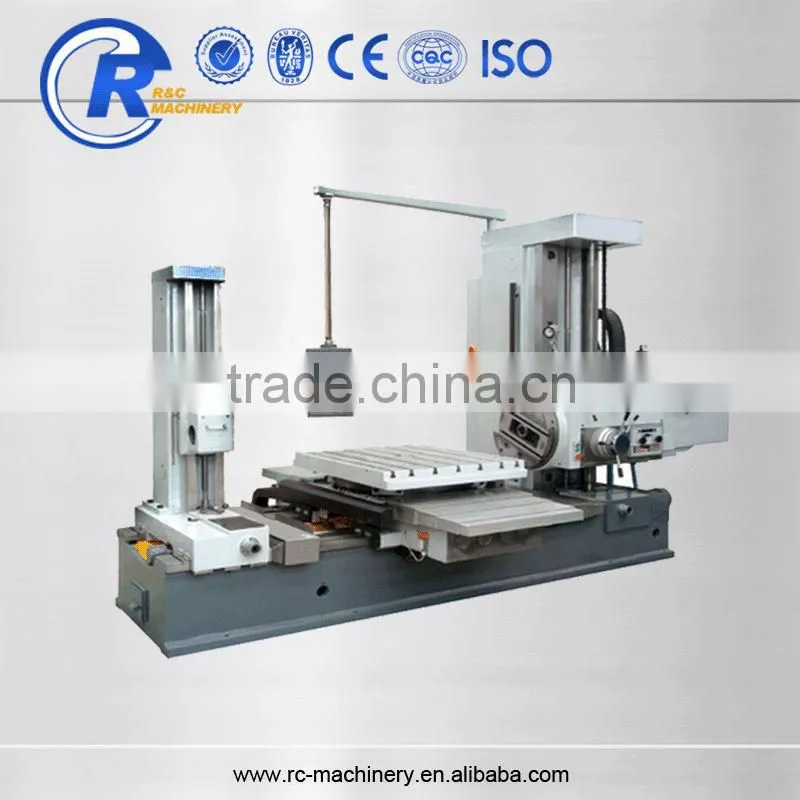

Tk69 |
TPX |
Please click above photos to know more boring and milling machines.

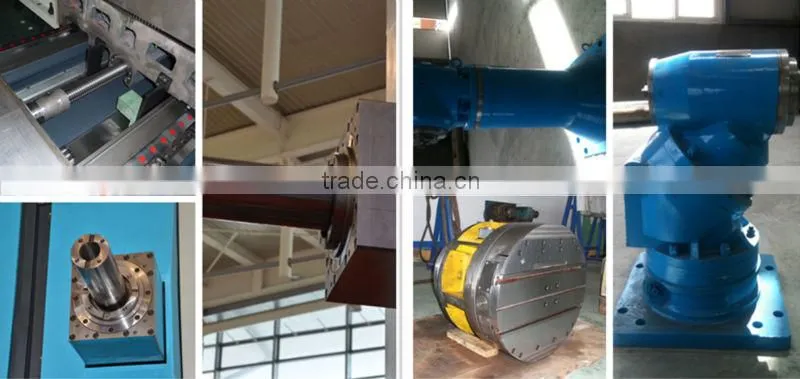

| MACHINE PARTS |
|
| IMAGES>>SPECIFICATION>>SHOW ROOM>>OTHER VERTICAL LATHES>OTHER MACHINES>PACKING>>R&C |
|
|
IMAGES>> SPECIFICATION>> SHOW ROOM>> OTHER VERTICAL LATHES>> OTHER MACHINES> PACKING>> R&C |
|
| IMAGES>> SPECIFICATION>> SHOW ROOM>> OTHER VERTICAL LATHES>> OTHER MACHINES>> PACKING>> R&C |
|
COMPANY PROFILE. |
|
CERTIFICATION. |
|
