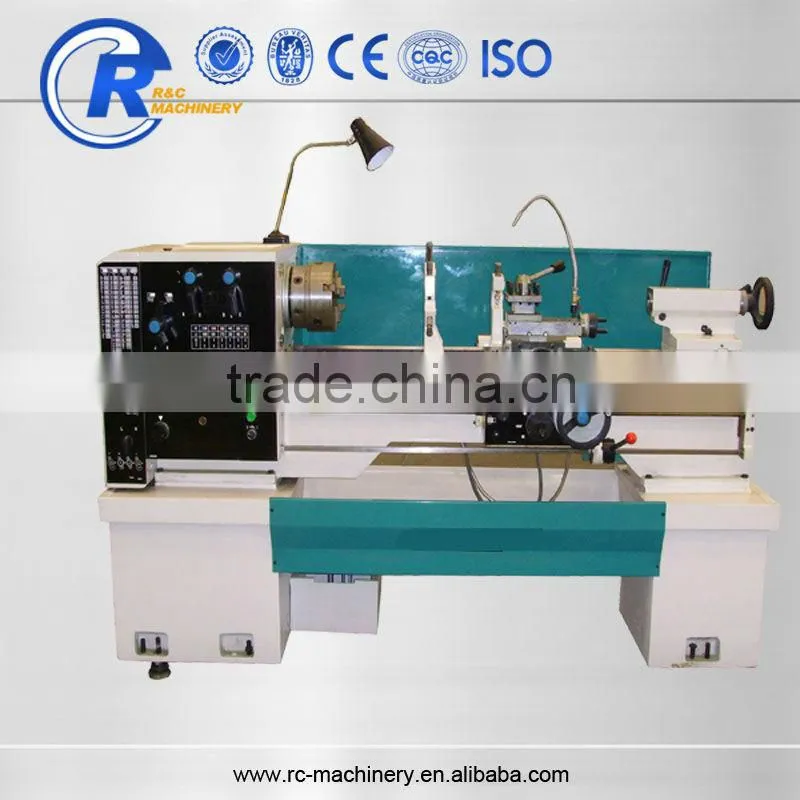

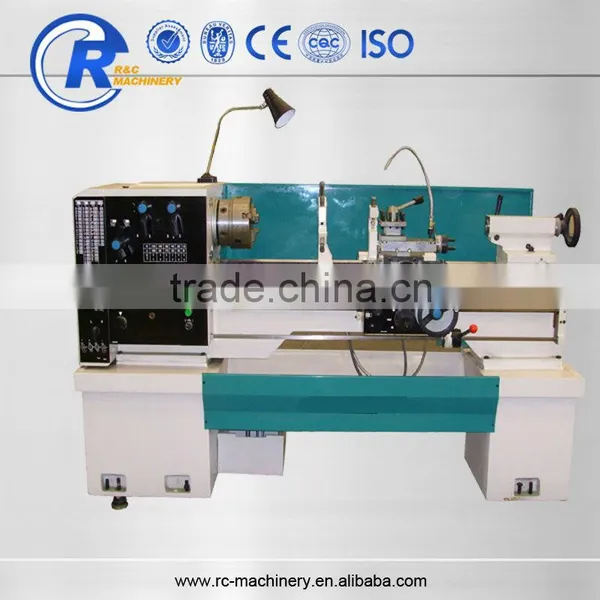

CDS6250B Light Conventional Lathe Machine Price in China
Product Introduction:
CDE6140A Lathe Dalian Machine Tool Group combines world-renowned enterprises England 600 Group's products have developed a new generation of agreeableness lathe, the appearance of the popular flat square shape, front and rear legs wide. It needs a high-frequency surface hardening, grinding, quenching hardness G50 and gear teeth can more hardened, precision grinding machining, precision gears up to seven .
Features:
1.According to the different needs of the user configuration, there are metric, imperial, and other types of public bilingual.
2. Spindle box with mechanical friction disc clutch, without changing the motor speed and stop the motor can be realized spindle speed, stop, change direction.
3.machine apron with fast-moving device, with overload protection device; vertical and horizontal cross bar handle, opening and closing nut handle.
Without changing hanging round, you can turning metric, inch, module, thread pitch.
4. metric available tools, Inch machine, the left wheel apron and many other combinations;
5.Head stock with clutch
6. machine tool spindle head in the form of C6;
7. Headstock machine, feed box with oil pump lubrication;
8.Apron with rapid traverse control.
ITEM |
CDS61(2)32 |
|
CDS61(2)36 | ||
CDS61(2)40B |
CDS61(2)40C |
|
CDS61(2)50B |
CDS61(2)50C |
|
CDS61(2)66B |
CDS61(2)66C |
|
Max. swing over bed (mm) |
320/360/400/500/660 |
|
Swing over cross slide (mm) |
180/220/230/290/440 |
|
Swing in gap (mm) |
520/560/700/760/870 |
|
Maximum length of the saddle(mm) |
200/250 |
|
Maximum workpiece length (mm) |
500/750/1000/1500/2000 |
|
Spindle speed (min/r) |
44-1600(32,36) 26-2000(40,50,66) |
44-1600(32,36) 26-1700(40,50,66) |
Spindle bore diameter(mm) |
52/82 |
52/ 105 |
Spindle head form (mm) |
C6(32,36) D8/C8(40,50,66) |
C6(32,36) D8(40,50,66) |
Longitudinal feed(mm/r) |
0.03-1.0 0.044-1.48 |
|
Cross feed(mm/r) |
0.010-0.33 0.022-0.74 |
|
Metric thread(mm) |
0.4-14 0.35-80 |
|
Module thread (mm) |
0.2-3.5 0.20-40 |
|
Whitworth (T.P.I) |
56-2 80-7/16TPI |
|
Pitch threads(D.P.) |
112-6 160-7/8DP |
|
Tool support surface to spindle center distance (mm) |
22 27 |
|
Small knife stroke(mm) |
115 125 |
|
Tailstock quill diameter(mm) |
50 75 |
|
Tailstock sleeve travel(mm) |
125 150 |
|
Tailstock sleeve taper (Mohs) |
NO4 NO5 |
|
Main motor power(kW) |
3.3/2.2 7.5 |
|
|
|
|
|
