Specifications
ISO9001 Quality SystemHigh quality
Low noice
boring machine manufacturer
TPX 6113A/2 CNC Boring and Milling Machine
TPX6113A/2 Horizontal Boring and Milling Machine
TPX6113A/2 Horizontal Boring and Milling Machine SPECIFICATIONS
Specifications | Unit | TPX6113 | TPX6113A | TPX6113A/2 |
Spindle diameter | mm | 130 | 130 | 130 |
Spindle Taper | Metric 80 | Metric 80 | Metric 80 | |
(7:24 No50) | (7:24 No50) | (7:24 No50) | ||
Speed range of spindle | r/min | 4-800 | 4-800 | 4-800 |
Power of main motor | kw | 15 | 15 | 15 |
Facing head diameter | mm | 750 | 750 | 750 |
Table size(L*W) | mm | 1600*1400 | 1600*1400 | 1800*1600 |
Max. load of table | kg | 8000 | 8000 | 8000 |
X-axis travel | mm | 1600 | 2000 | 2000 |
Y-axis travel | mm | 1500 | 1800 | 2000 |
Z-axis travel | mm | 1500 | 1500 | 1500 |
W-axis travel | mm | 900 | 900 | 9000 |
U-axis travel(Slide of facing head travel) | mm | 250 | 250 | 250 |
B-axis angulationgs | degree | 360 | 360 | 360 |
Rapid travel(X/Y/Z) | mm/min | 2500 | 2500 | 2500 |
B-axis measurement system reading precision | degree | 0.001 | 0.001 | 0.001 |

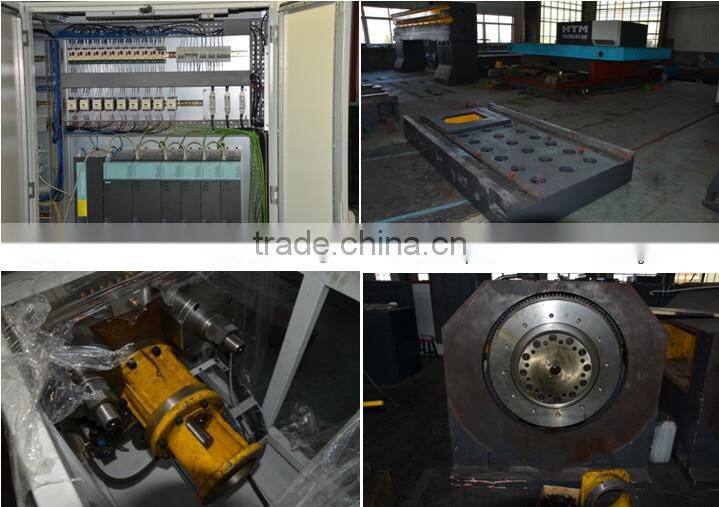

TPX6113A/2 Horizontal Boring and Milling Machine MAIN PARTS

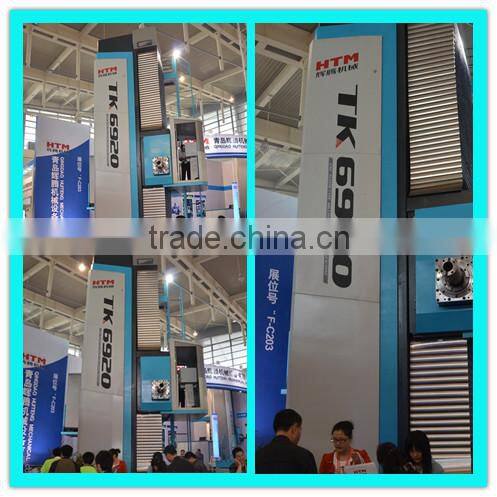

TPX6113A/2 Horizontal Boring and Milling Machine IN EXHIBITIONS
TPX6113A/2 Horizontal Boring and Milling Machine

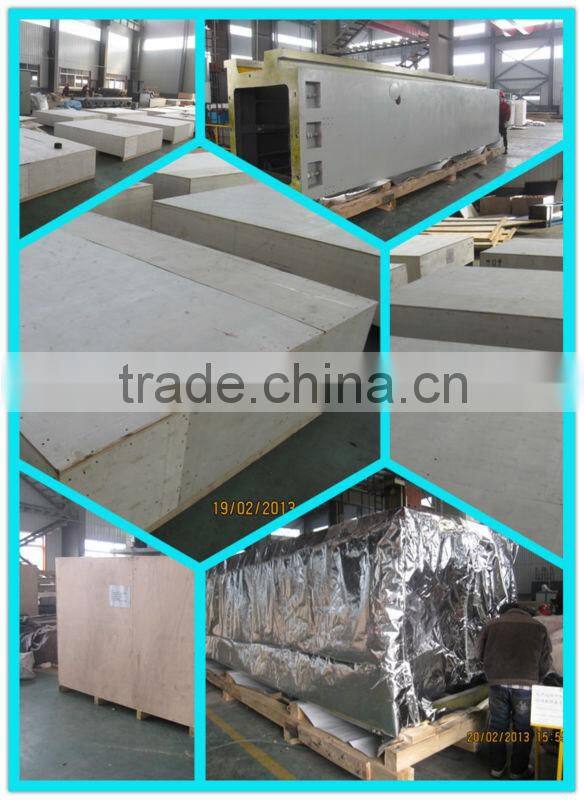

PACKING CONDITION

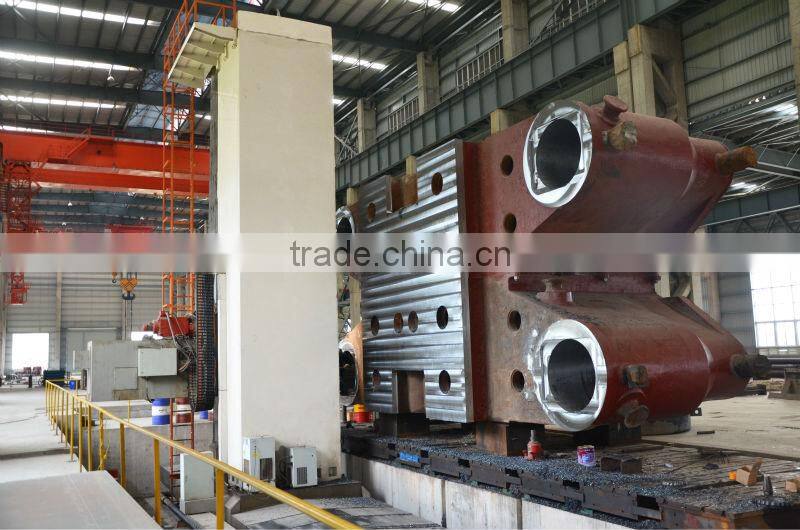

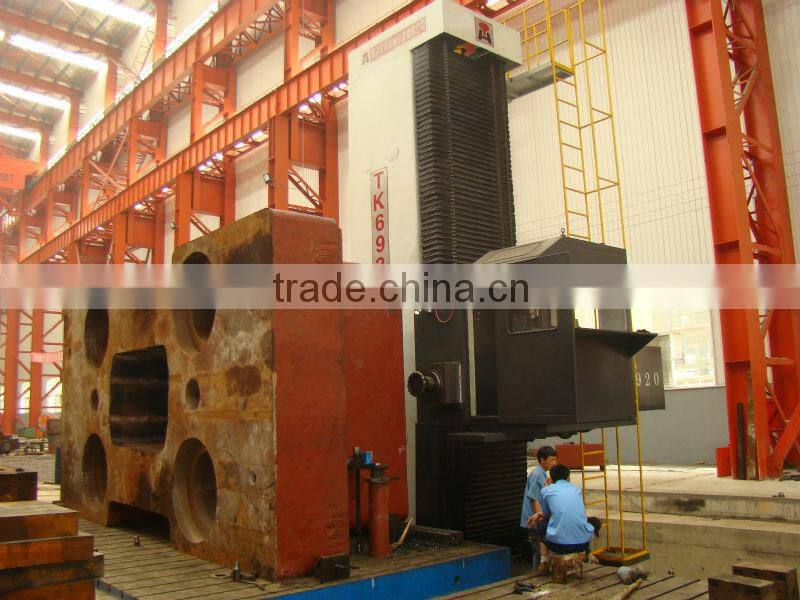

TPX6113A/2 Horizontal Boring and Milling Machine APPLICATIONS
We specialize in producing heavy duty and extra-heavy duty CNC machine tools. Our main products include CNC/DRO boring milling machines, 3-5m rotary tables, heavy duty gantry milling machines, etc. Our market share of boring mills in China has reached 79% in 2012.
We own 7 patents for Utility Model, 1 patent for Exterior Design, 5 patents for Invention, and 8 R&D projects. We are certified High-Tech Enterprise by government. In 2013 we have supplied large scales of machines to domestic markets and overseas markets, i.e. Germany, Netherlands, South Africa, Malaysia, Saudi, etc.
Current Workshop
New Workshop(in use by Fall, 2014)
|
