TPX6113 tunnel boring machine parts

Specifications

TPX6113 tunnel boring machine parts

1. Machine Tool Introduction:

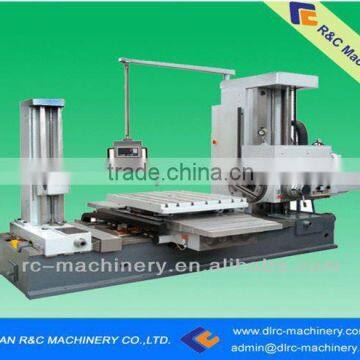

 The TPX6113 CNC plane boring and milling machine is a newly developed high-torque, high efficiency, high rigidity, features state-of-the-art machine tools. According to the requirements of users with different systems, different precision turntable size can form different grades of different specifications of the machine. Has the most extensive use of a universal machine tools, machine belongs to the wide range of large, its performance is boring, milling, drilling, reaming, milling plane machining processes, particularly suitable for processing porous Department, pitch requires more accurate box-shaped parts, rack, mold parts processing, the work piece in one clamping, auto-complete milling, boring, drilling, reaming, milling, tapping and other processes. Seven-axis control, Axis, circular interpolation and processing of three-dimensional surface can be realized. With milling head, flat rotating disk and other accessories to expand the processing capacity of the machine.

The machine uses state-of-the-art mechanical, electrical, hydraulic integration of new technology development, cost-effective CNC heavy machine tools, a wide range of processing and fully functional CNC high accuracy and production efficiency. The machine is equipped with SIEMENS CNC system and AC digital servo drive system, the system has a powerful data package and low failure rate, performance is very stable, to achieve multi-axis, functional compensation, data communications and switching, analog display, a variety of fixed machining cycle, the tool management. Choose a different capacity tool library that implements a fixture multi-tasking sequence complex automated processing; the configuration axis infinite loop feedback system can also be processed with greater precision and process content.

2.The using environment of machine tool:

Power supply: 3AC 380V ± 10% 50HZ ± 1HZ

Altitude: ≤ 1500m

Temperature: 5 ~ 45 °

Relative humidity: ≤ 85%

Environment: harmful and corrosive gases, liquids, dust; without a strong vibration, strong magnetic radiation.

3. The main technical parameters (standard):

4. The Main Structural Features:

The main components of the column bed, slide, headstock head, rotary table tops, table slide and bench lathe bed. Headstock is a closed structure; column design the two rectangular rail, column internal layout ribs, high stiffness and high shock resistance. Column and slide the rigid connection, pretension double nut ball screw driven carriage and column moved along the bed. The ball screw nut is mounted to the slides, ball screw fixed on the bed by precision gear box driven by a servo motor the screw rotation so as to drive the moving column.

Machine operation box for centralized operation, operating station can freely rotate and adjust the height. Button the station configuration handheld operating unit to facilitate the knife.

B-axis table with a tight cylinder hydraulic brake, the use of high-pressure cylinder makes the rotation circle more tightly, to improve the stability of the rotary table. Can be positioned at any angle, the rotary table with hydraulic brake tight, you can stop at any angle, angle processing. The traditional form can only be positioned in the direction of 90 degrees. The rotary table, using circular grating to Angle positioning can make precision control in the Angle of 5 seconds.

 Seven axis of CNC machine tool can achieve arbitrary four axis linkage. For countertops mobile X axis, Y axis is given priority to moving axle box, Z axis for pillar longitudinal mobile, W axis move for main shaft, shaft of rotary table B rotary motion.

This machine supporting automatic tool changer can greatly improve the efficiency of the machining.

Installation of the machine: CNC working platform full stroke linear motion, the column linear motion and power head up and down movement set Closed guard prevent foreign object research injuries rail, ensure that the inside of the machine clean, protective cover for the professional factory manufacture, beautiful appearance, reasonable structure .

Column of the machine, slide, bed, work table and other basic large are made of high quality cast iron, the aging treatment, elimination of internal stress. Better overall rigidity, and has a good vibration absorbing vibration performance.

 5.Our Product Photos:

WHY CHOOSE R&C?

1,Company Introduction:

We are one of the leading machinery group specializing in producing heavy duty machine tools, it have five factories in China which mainly produce Vertical Lathe, Boring & Milling Machine, Heavy-duty Horizontal Lathe, both conventional and CNC types.

We have a group of professional engineers in charge of technology, manufacturing, installing and testing, so we can guarantee that our machines will put on good performance based on high quality.

2.Export Market:

Our products have been exported to more than 60 countries such as Canada, the U.S.A., Italy, France, Brazil, Bolivia, Chile, Russia, Romania, Saudi Arabia, Syria, Jordan, the U.A.E., Indonesia, Singapore, Thailand, India, Pakistan, South Africa, Egypt, Nigeria, Kenya and so on.

3.Our Belief:

We do believe we can create a win-win situation for both sides as long as we have come to a cooperation consensus. "Together we stand still, Divided we fall" this is what we treat our partners. Clients from all over the world are warmly welcome to build business relations, cooperate and develop together with us. Please feel free to contact us for details.

4.After-sale service:

The full machine warranty is 1 year. The seller will offer maintenance free service in the warranty period (except the damage caused by the user's own reasons).
