MVL1475 CNC Vertical Machining Center

Dalian R&C Machinery Co., Ltd.

US$ 35,000 - 45,000 MOQ: 1 Piece

Key Specifications

Condition:

New

Type:

Vertical

Place of Origin:

Liaoning, China

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Vertical

Place of Origin Liaoning, China

Brand Name RC

Model Number MVL1370

Voltage 380V/50Hz

Power(W) 11/15kw

Dimension(L*W*H) 3900x3060x2650 mm

Weight 10000 kg

Certification ISO CE

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

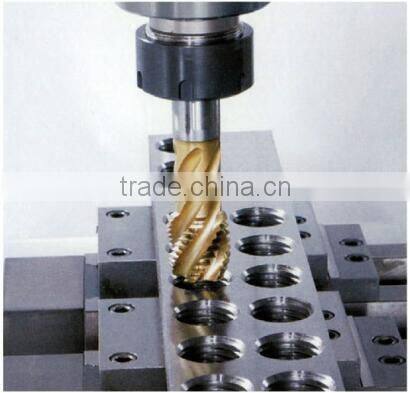

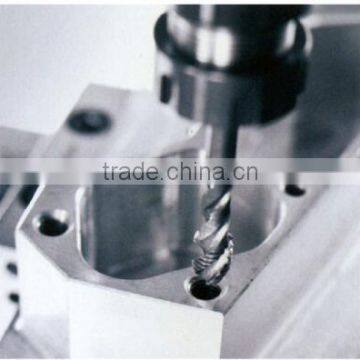

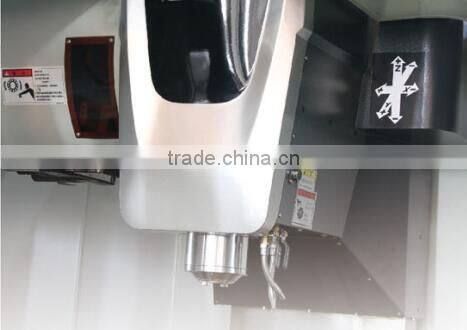

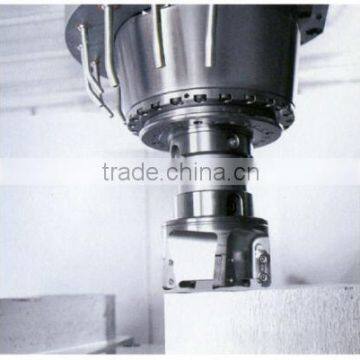

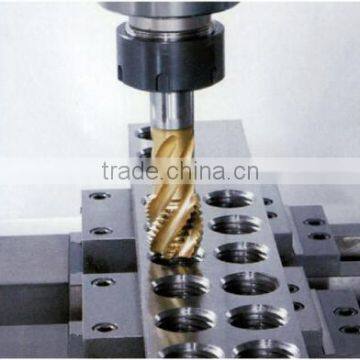

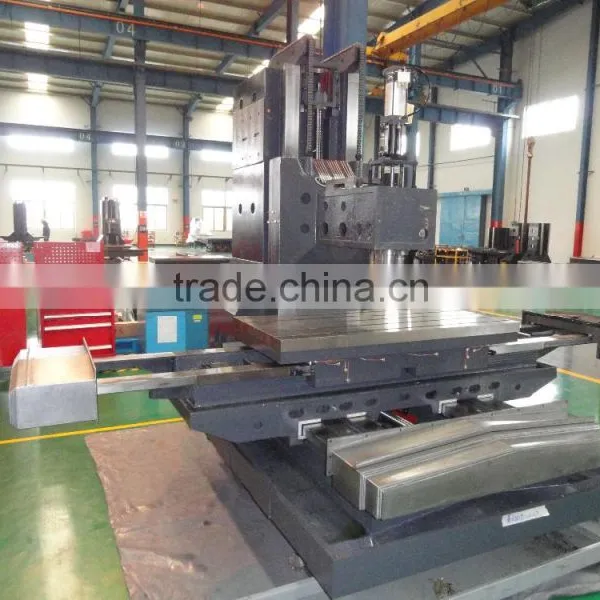

Product Image

Detailed Parameters

Machine Type	MV1475( Box rail )	MVL1475 ( Linear rail )	Unit
Worktable
Worktable ( L x W )	1600x 750	1600x 750	mm
Maximun load of table	1300	1200	kg
T-slot	5-18 x 140	5-18 x 140	mm
Axis travel
X/Y/Z axis travel	1400/750/650	1400/750/650	mm
Distance from spindle nose to workbench	100-750	100-750	mm
Distance from spindle center to column guide	820	850	mm
Feed system
CNC system	FANUC-0i MF	FANUC-0i MF
Rapid shift of X/Y/Z axis	16	24/24/20	m/min
Cutting feed speed	7	8	m/min
Automatic tool transform system
Standard tool quantity	Arm 24	Arm 24	T
Tool length and diameter	Φ110/300	Φ110/300	mm
Tool exchanging manner	Pneumatic	Pneumatic
Tool exchanging time	Arm 5s	Arm 5s	sec
Precision
Positioning accuracy	0.012	0.012	mm
Repeated accuracy	0.006	0.008	mm
Spindle system
Spindle speed	6000	6000	r.p.m
Spindle specifications	BT50/Φ155	BT50/Φ155
Spindle drive manner	Belt	Belt
Spindle motor power	15/18.5	15	kw
Air pressure
Air demand	≥6	≥6	kg/cm²
Air pressure flux	≥0.3	≥0.3	m³/min
Machine specifications
Integrated weight	11000	10000	kg
Overall dimension	3900x 3060x 2650	3900x 3060x 2650	mm

Standard Configuration
FANUC control system	Water tank cooling system	Automatic lubrication device	Outer protection cover
Spindle blowing device	Handheld air gun	Electric control cabinet	Transformer
Heat exchanger in electric cabinet	RS-232 standard output interface	Working lamp	Three color warning lamp
LCD	Manual pulse generator	Tool	Operating manual

Options
Carousel type or disc type tool changer	Spindle oil cooling device	High spindle speed 10000-15000rpm	Coolant through spindle
Chain type/Sprial type chip removal	Disc type oil-water separator	CNC rotary table ( Forth axis or fifth axis)	Air conditioner in electric cabinet
