MV650 Small CNC Machining Center

US$ 25,000 - 45,000 MOQ: 1 Piece

Key Specifications

Condition:

New

Type:

Vertical

Place of Origin:

Liaoning, China

Dalian R&C Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Vertical

Place of Origin Liaoning, China

Brand Name RC

Model Number VMC650

Voltage 380V/50Hz

Power(W) 11/15kw

Dimension(L*W*H) 2330x2200x2490 mm

Weight 4000 KG

Certification ISO CE

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

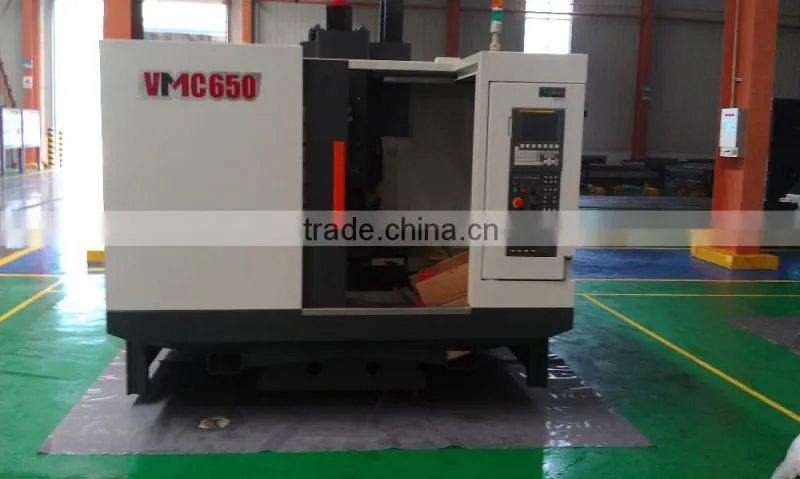

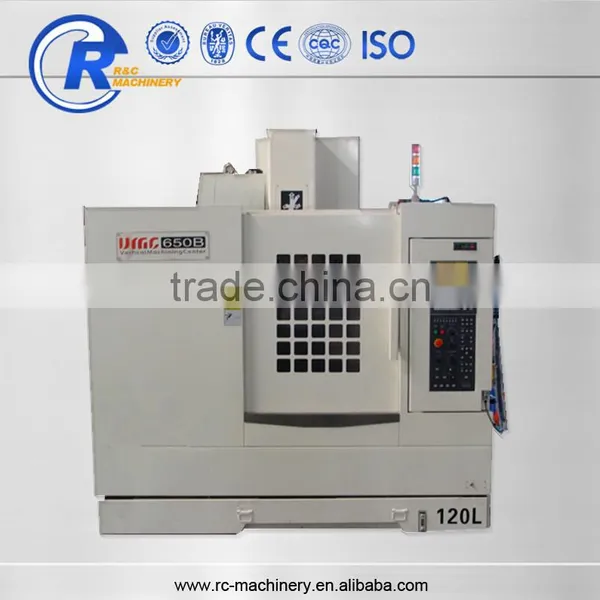

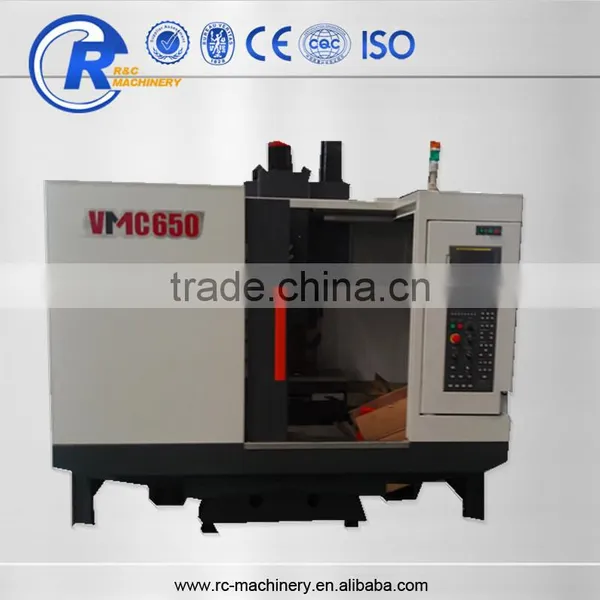

Product Image

Detailed Parameters

Machine Type	MV650 ( Box rail )	MVL650 ( Linear rail )	Unit

Worktable ( L x W )	800 x 420	800 x 420	mm
Maximun load of table	500	500	kg
T-slot	3-18 x 125	3-18 x 110	mm
Axis travel
X/Y/Z axis travel	600/420/500	600/420/500	mm
Distance from spindle nose to workbench	150-650	80-580	mm
Distance from spindle center to column guide	530	550	mm
Feed system
CNC system	FANUC-0i MF	FANUC-0i MF
Rapid shift of X/Y/Z axis	16	30/30/20	m/min
Cutting feed speed	7	12	m/min
Automatic tool transform system
Standard tool quantity	Armless 20/ Arm 24	Arm 24	T
Tool length and diameter	Φ80/300	Φ80/300	mm
Tool exchanging manner	Pneumatic	Pneumatic
Tool exchanging time	Armless 5s/ Arm 2.5s	Arm 2.5s	sec
Precision
Positioning accuracy	0.008	0.008	mm
Repeated accuracy	0.005	0.005	mm
Spindle system
Spindle speed	8000	8000	r.p.m
Spindle specifications	BT40/Φ150	BT40/Φ150
Spindle drive manner	Belt	Belt
Spindle motor power	11/15	11/15	kw
Air pressure
Air demand	≥6	≥6	kg/cm²
Air pressure flux	≥0.3	≥0.3	m³/min
Machine specifications
Integrated weight	4000	4000	kg
Overall dimension	2330 x 2200 x 2490	2330 x 2200 x 2490	mm

Standard Configuration
FANUC control system	Water tank cooling system	Automatic lubrication device	Outer protection cover
Spindle blowing device	Handheld air gun	Electric control cabinet	Transformer
Heat exchanger in electric cabinet	RS-232 standard output interface	Working lamp	Three color warning lamp
LCD	Manual pulse generator	Tool	Operating manual

Options
Carousel type or disc type tool changer	Spindle oil cooling device	High spindle speed 10000-15000rpm	Coolant through spindle
Chain type/Sprial type chip removal	Disc type oil-water separator	CNC rotary table ( Forth axis or fifth axis)	Air conditioner in electric cabinet
