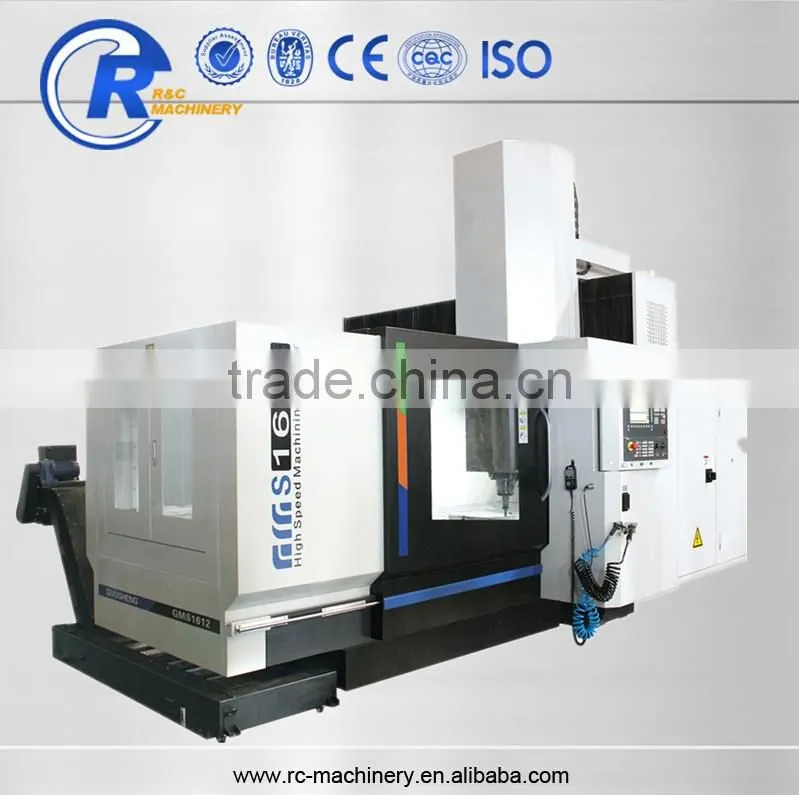

GMS1612 HIGH SPEED CNC VERTICAL MACHINING CENTER/ Double Column CNC Milling Machine/gantry Cnc Machining Center

US$ 87,301 - 92,698 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

CNC

Dalian R&C Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not CNC

Automatic Grade Automatic

Place of Origin Jiangsu, China

Brand Name R&C

Model Number GMS -1612

Voltage 380V

Power(W) 60 Kw

Dimension(L*W*H) 5100 *4300 *4350

Weight 17000kg

Certification CE & ISO

After-sales Service Provided Engineers available to service machinery overseas

GMS1612 HIGH SPEED CNC VERTICAL MACHINING CENTER/ Double column CNC milling machine/gantry cnc machining center

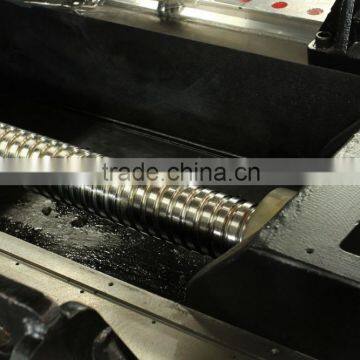

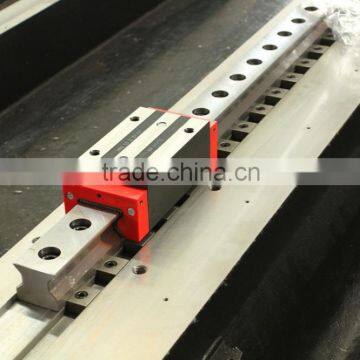

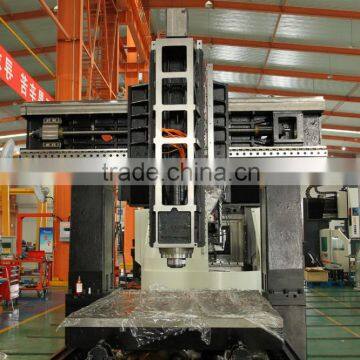

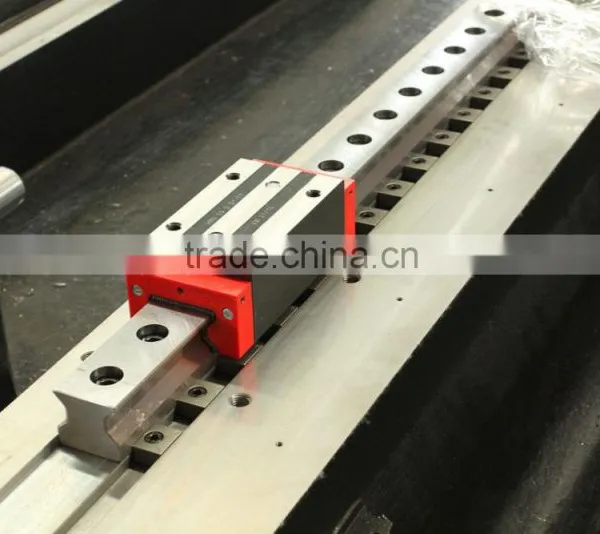

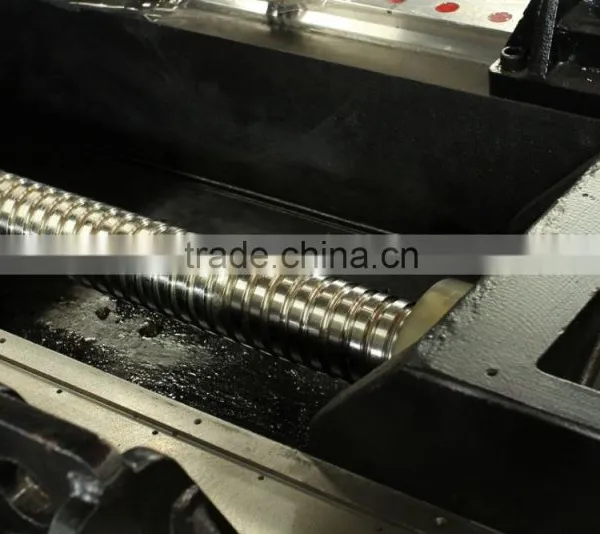

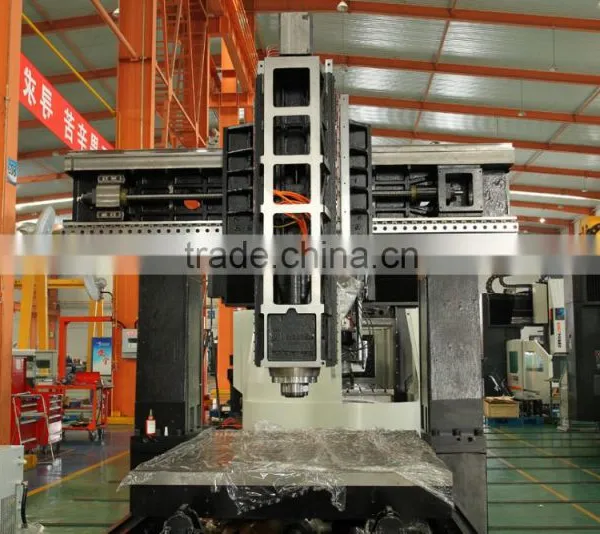

Photos of Mahine

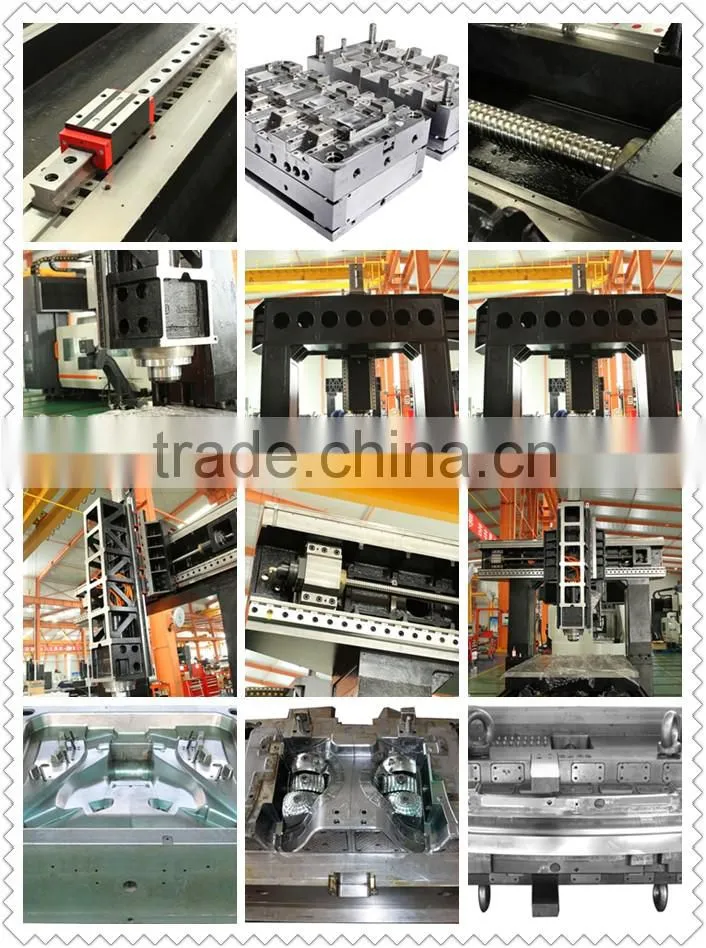

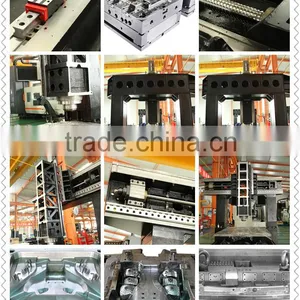

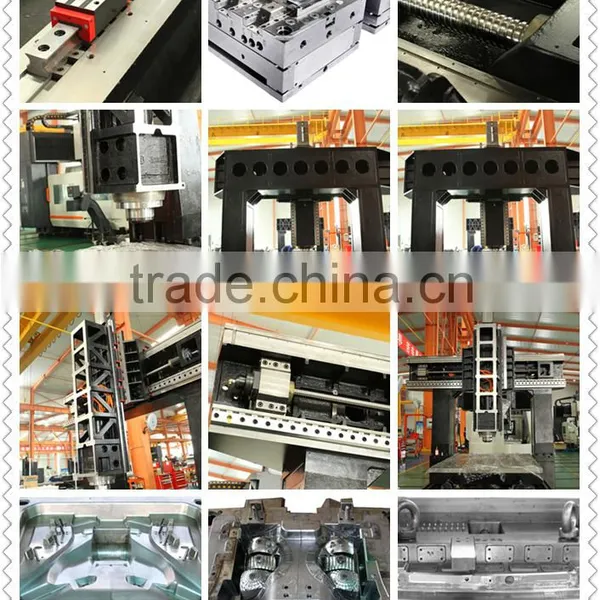

Processing Equipment

Main Parameters

Machine Type	Unit	GMS1480	GMS1612
Door width	mm	1400	1400
Worktable	mm	1300 x850	2000x 1300(With guiding gutter)
Worktable loading weight	kg	1500	4000
Left and right travelling	mm	1400	1600
(X axis)	mm	1400	1600
Back and forth	mm	800	1200
(Y axis )	mm	800	1200
Spindle travelling	mm	650	700
( Z axis )	mm	650	700
Distance between spindle end face to worktable surface	mm	150-800	120-820
Spindle type		8T40/150 Straight junction	HSK-A63 electrical spindle
Spindle speed	rpm	12000	18000
Spindle tool connector		8T40	HSK-A63
Worktable T slot	mm	5-18 x 150	9-18x 190
Three axis quickly move speed	mm/min	20000	20000
Cutting feed speed	mm/min	10-20000	10-20000
CNC control system		FANUC Oi MD	Siemens 8400
X / YlZ axis guidway type	mm	2-45(X) ,2-45(Y) 2-45(Z)	2-55(X) ,2-55(Y) ,2-45(Z)
Machine size (approximately)	mm	3000 x 4000 x 4100	5100 x 4300 x 4350
Machine size (approximately)	mm	(Max position of travelling)	(Max position of travelling)
Machine weight (approximately)	kg	11000	17000
Power supply	kVA	35	60
