GMC 29 Series CNC Double Column Milling Machine

GMC 29 Series CNC Double Column Milling Machine thumbnail-1
GMC 29 Series CNC Double Column Milling Machine thumbnail-2
GMC 29 Series CNC Double Column Milling Machine thumbnail-3
GMC 29 Series CNC Double Column Milling Machine thumbnail-4
GMC 29 Series CNC Double Column Milling Machine thumbnail-5
GMC 29 Series CNC Double Column Milling Machine thumbnail-6
GMC 29 Series CNC Double Column Milling Machine photo-1
GMC 29 Series CNC Double Column Milling Machine photo-2
GMC 29 Series CNC Double Column Milling Machine photo-3
GMC 29 Series CNC Double Column Milling Machine photo-4
GMC 29 Series CNC Double Column Milling Machine photo-5
GMC 29 Series CNC Double Column Milling Machine photo-6
US$ 180,000 - 300,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Horizontal, Gantry Type CNC Milling Machine
CNC or Not:
CNC
Contact Supplier Request Quote Chat Now
Dalian R&C Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Horizontal, Gantry Type CNC Milling Machine
CNC or Not CNC
Automatic Grade Automatic
Place of Origin Jiangsu, China
Brand Name Guosheng
Model Number 29 Series
Voltage 380V/50Hz
Power(W) Spindle power: 22/26 kw
Dimension(L*W*H) According to the models
Weight 43000 - 56000 kg
Certification CE & ISO
After-sales Service Provided Engineers available to service machinery overseas

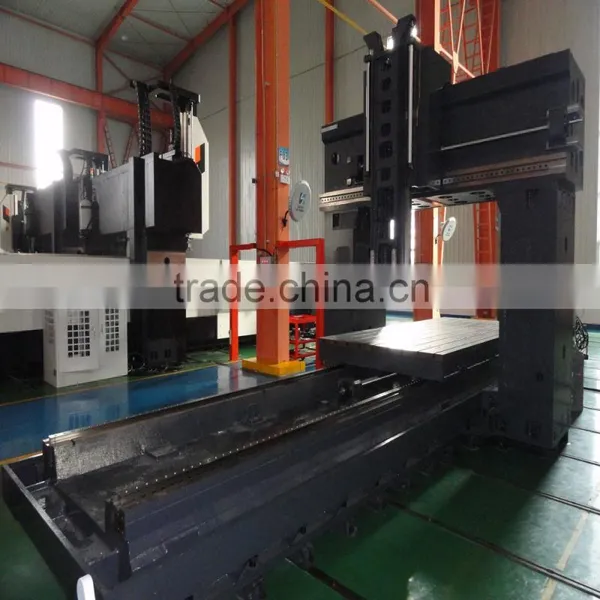

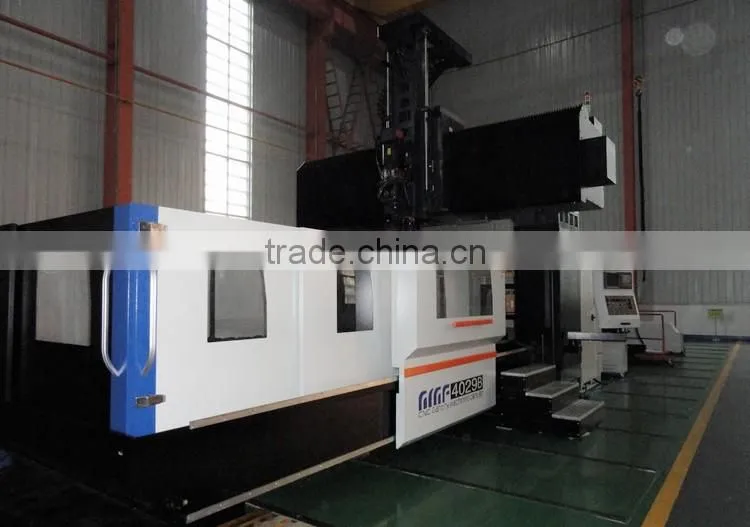

Detailed Images

GMC 29 Series CNC Double Column Milling Machine


Widely used in the aviation, auto, precision molding industries. GMF series can provide a high-performance mechanical system and a software interface which can be operated easily. This provides multiple choices of multiple choices that will allow you to fully realize the high precision dream.

Product Description
Specifications
29A And 29B Series
Machine Type
Unit
GMF3029 A/B
GMF4029 A/B
GMF5029 A/B
GMF6029 A/B
Worktable
Worktable (length×width)
mm
3000×2300
4000×2300
5000×2300
6000×2300
Maximun Load of table
kg
12000 (A)
15000 (B)
16000 (A)
18000 (B)
18000 (A)
22000 (B)
20000 (A)
24000 (B)
T-slot
mm
11-22×200
Triaxial itinerary
Gantry width
mm
2930
2930
2930
2930
Travel for X/Y/Z axis
mm
3200/2900/1000
4200/2900/1000
5200/2900/1000
6200/2900/1000
Distance from spindle nose to table surface
mm
310-1310
Feed system
CNC system
FANUC Oi MD
Rapid shift of axis of X/Y/Z
m/min
12/12/10
10/12/10
8/12/10
Maximun cutting feed speed
m/min
7
Automatic tool transform system
Standard tool quantity
Piece
BT50/32
The larges diameter cutter knife/length
mm
Φ125/300
Tool exchanging manner
Pneumatic
Maximum tool weight
kg
18
Precision
Positioning accuracy
mm
0.021
Accuracy of repeated
mm
0.02
Guide form and specifications
X/Y/Z-axis guide specifications
2-55（X)/2-55(Y)/Z axis hard rail (29A Series)
3-55（X)/2-55(Y)/Z axis hard rail (29B Series)
Spindle system
Spindle specifications
BT50/Φ200
Speed with belt drive milling head
r.p.m
4000
Motor power of spindle
kw
22/26
Air pressure
Requirements for air
kg/cm²
≥6
Air pressure flux
m³/min
≥0.5
Machine specifications
Integrated weight
kg
43000 (A)
45000 (B)
48000 (A)
50000 (B)
53000 (A)
54000 (B)
55000 (A)
56000 (B)
Overall dimension (length×width×height)
mm
7840×5350
×5167
（Travel peak）
9840×5350
×5167
（Travel peak）
11840×5350
×5167
（Travel peak）
13840×5350
×5167
（Travel peak）
Standard Fittings
FANUC control system
Water tank cooling device
Working lamp
Outer protective cover
Three-color warm lamp
LCD
Tool box
Operating manual
Spindle blowing device
Handheld air gun
Electric control cabinet
Transformer
Pneumatic part
Sprial+Chain chip cleaner
Spindle
Screw
Heat exchanger
for electrical cabinet
RS-232  standard
output interface
Automatic
lubricating device
Manual pulse
generator
Optional Fittings
CNC system
Siemens/ Mitsubishi
Automatic tool changer
Disc type / Chain type
Water outlet
from spindle center
Disc type oil-water
Separator
Air conditioner
for electrical cabinet
Full-enclosed optical
scale detecting system
Automatic tool length
measuring system
Manual/Semi-automatic
right-angle head
X/Y/Z axis optical scale
Toolholder in oilway
Oil mist
ZF gearbox
Design For Quality

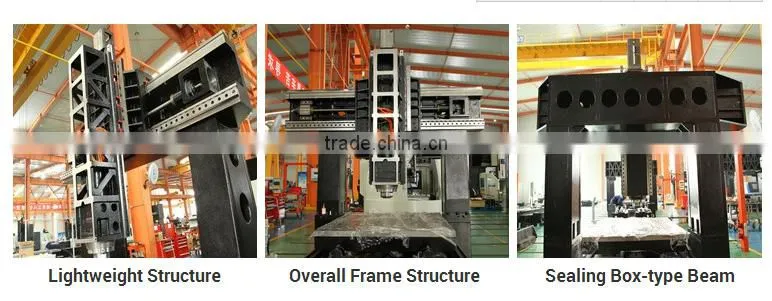

Structure

The structure of machine tool is analyzed with ANSYS at all stages from foundation design to guarantee of high-speed and high-precision continuous machining. A simulation test for deformation produced when the center of machine tool bears load is conducted to guarantee excellent bending rigidity of machine tool.

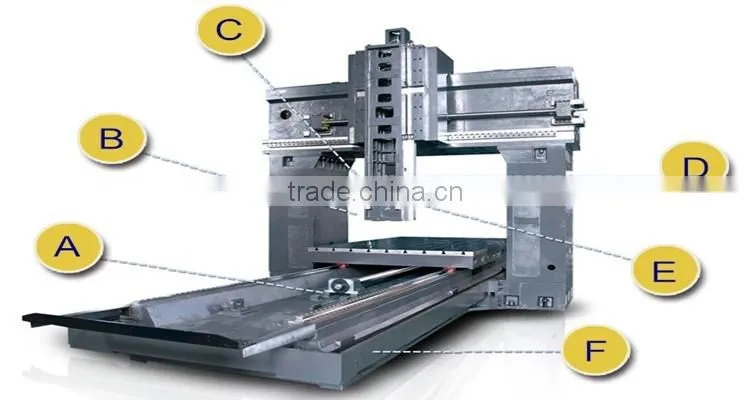

Product Description

A1. Optional external encoder realizes closed loop control

A2. Screw supporting structure is designed for above more than 5 meters (including 5 meters) gantries.

B. All gear form main transmission is optional.
C. The optional Z axis rails, rail pre tensioning structure Guosheng patent technology.

D. Optional 90° milling head realizes five-face machining. Optional universal milling head realizes multi-angle machining

E. Optional German ZF gearbox widens machining range.

F. As standard each Guosheng gantry machining center is equipped with two spiral chip cleaners and one chain chip cleaner.
