HMC-63 Converted 5-axis Vertical and Horizontal Machining Center Quality Choice

US$ 10,000 - 12,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

CNC

Dalian R&C Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not CNC

Automatic Grade Automatic

Place of Origin Jiangsu, China

Brand Name R&C

Model Number HMC-63

Voltage 380V

Power(W) 15KW

Weight 13000

Certification CE & ISO

After-sales Service Provided Engineers available to service machinery overseas

HMC-63 Low price high pricision Cnc Horizontal Machine Center

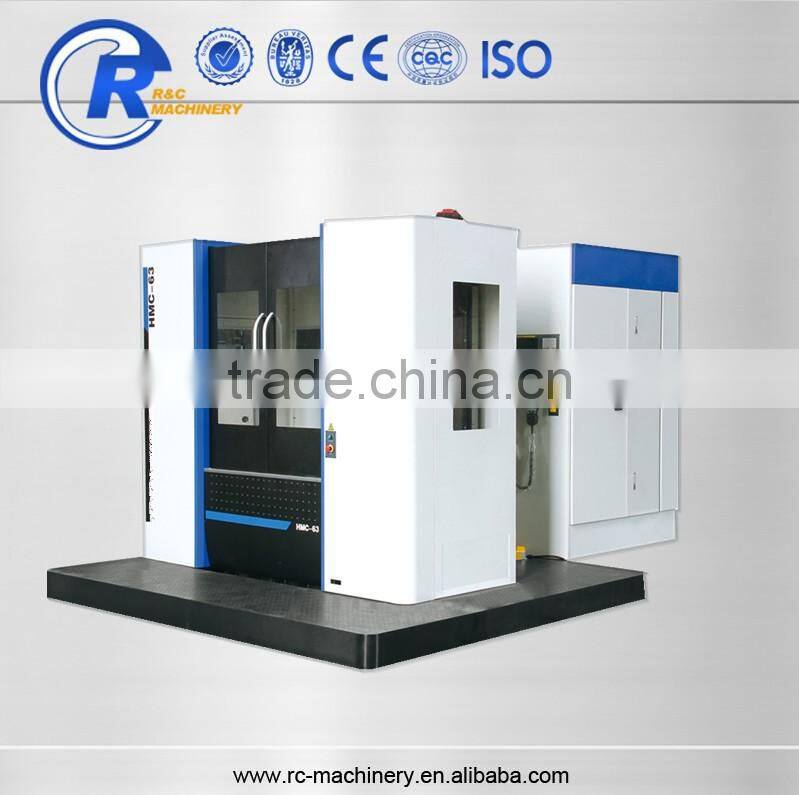

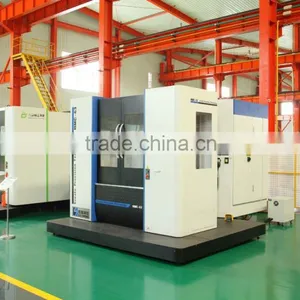

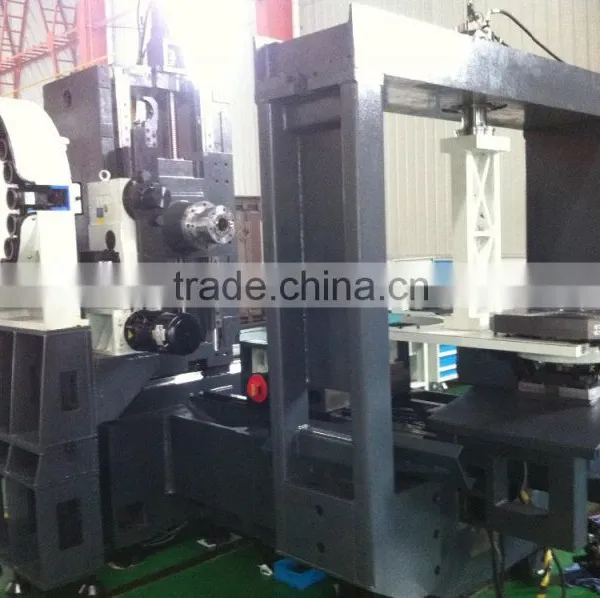

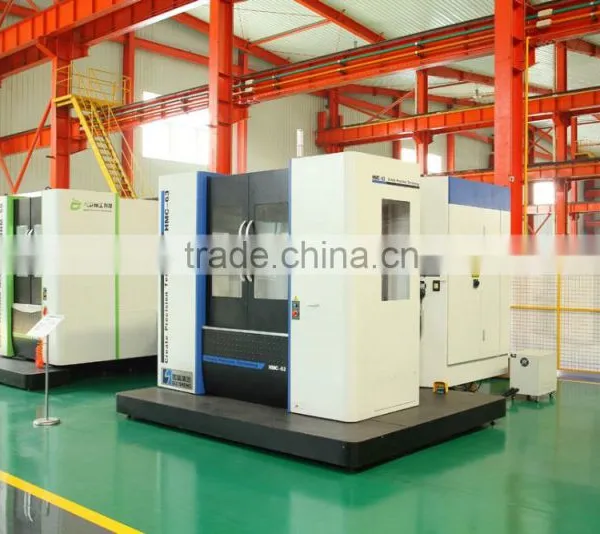

Photos of Mahine

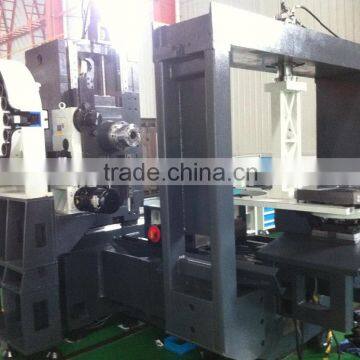

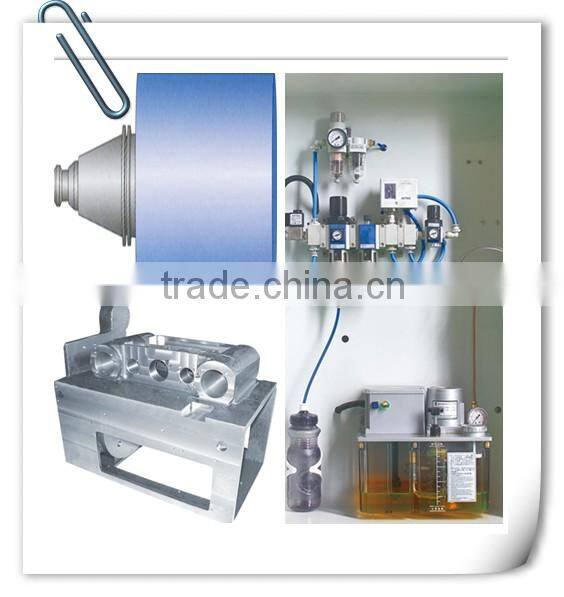

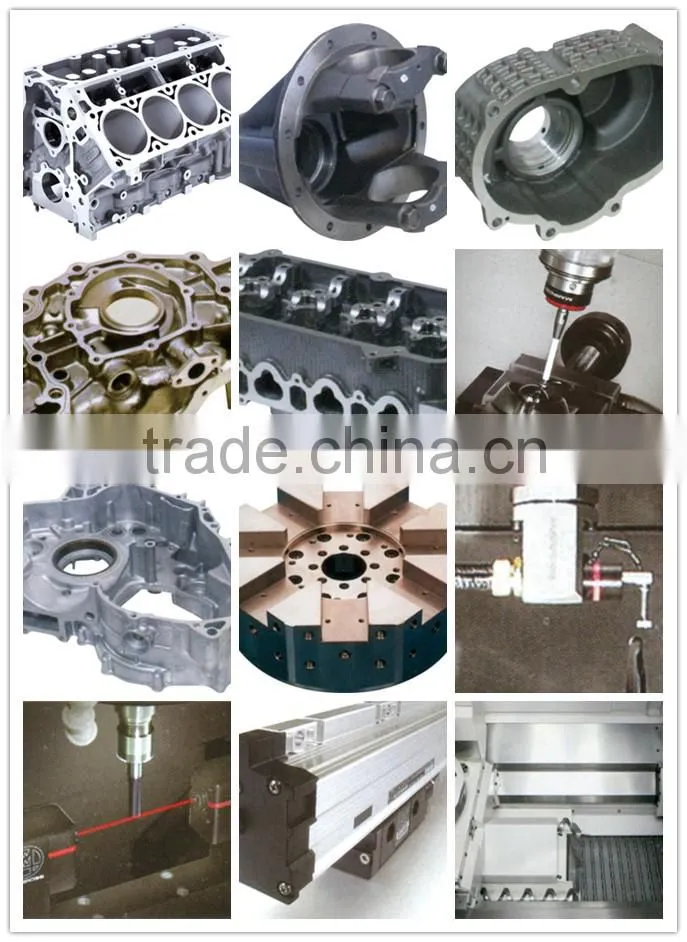

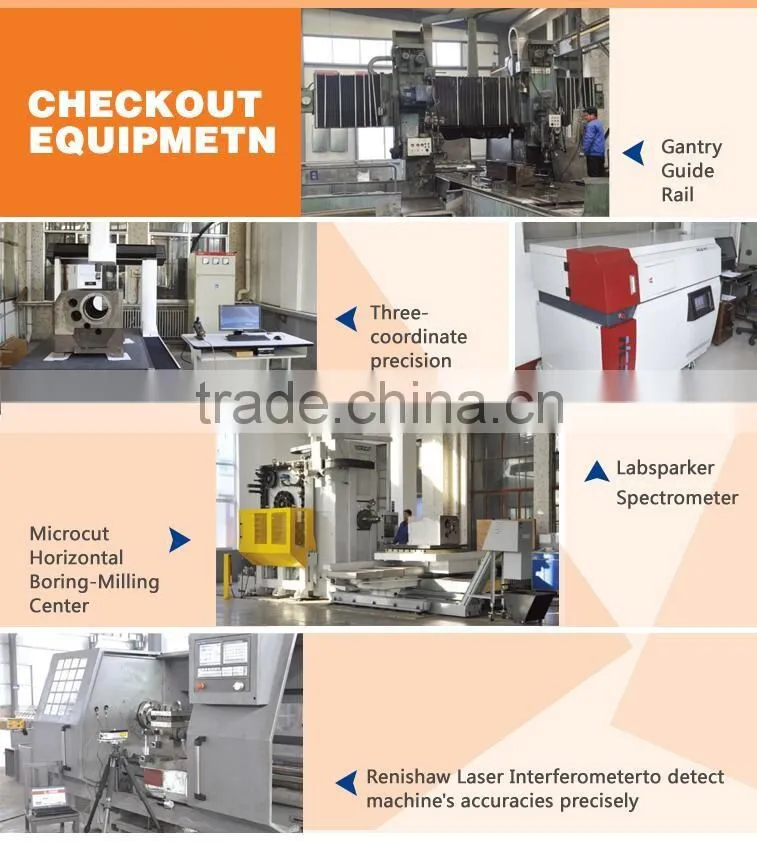

Processing Equipment

Main Parameters

Machine Type	Unit	HMC-50	HMC-63	HMC-80	HMC-110
Worktable
Worktable(length×width)	mm	500*500	630*630	800*800	1100*100
Load of table(average load)	kg	600	1200	3000	5000
Reference aperture	mm	50H7	50H7	50H7	50H7
Reference aperture	mm	50H7	50H7	50H7	50H7
Division precision	Sec	±5	±5	±5	±5
Repetitive precision	Sec	±2	±2	±2	±2
Processing range
Maximum travel of X/Y/Z axes	mm	700/650/600	1000/850/900	1300/1000/1000	2500/1200/1300
Rotary worktable (B axis)		1°*360	1°*360	1°*360	1°*360
Distance from spindle nose to table surface	mm	200-800	200-1100	200-1200	350-1700
Distance from spindle center to table surface	mm	50-700	100-950	100-1100	150-1500
Spindle system
A tapered hole (7:24)		BT50	BT50	BT50	BT50
Spindle speed	r/min	6000	6000	6000	6000
Motor power of spindle	KW	FANUC 11/15	FANUC 15/18.5	FANUC15/18.5	FANUC22/26
Transmission form (standard)		Belt type	Belt type	Belt type	Belt type
Transmission form (optional 1)
Transmission form (optional 2)		ZF	ZF	ZF	ZF
Feed system
Transmission mode of X/Y/Z axes
Range of cutting feed speed	m/min	10	10	10	7
Rapid shift of X/Y/Z axes	m/min	24	24	24	12
Tools system
Tools capacity		24	24	24	24
Tool selection manner		random	Random	Random	Random
Maximum weight of tools	Kg	15	15	15	15
Maximum length of tools	mm	350	350	350	350
Tool exchanging manner		Tool arm type	Tool arm type	Tool arm type	Tool arm type
Precision
Positioning accuracy	mm	0.01	0.01	0.012	0.012
Accuracy of repeated positioning	mm	0.006	0.006	0.008	0.008
Requirements for air compressing	Kgf/cmm	6	6	6	6
Integrated weight(kg)	Kg	11000	13000	18000	22000
